ZF 6100M (84345) - Snapper 61" Mower Deck Assembly Lower Chassis Assembly Parts Diagram

61" Mower Deck Assembly

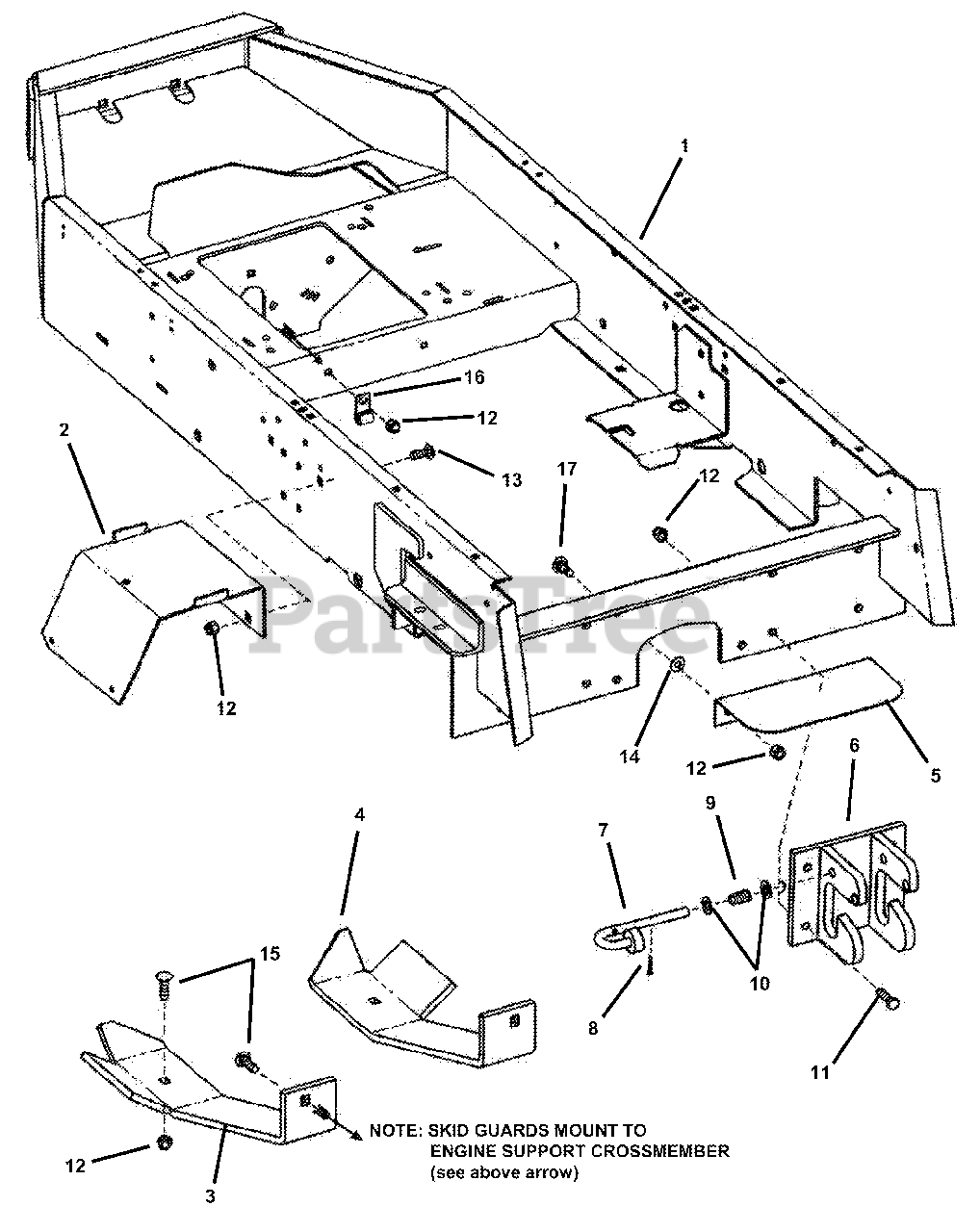

Lower Chassis Assembly Parts Diagram

  • Title

1

Snapper 7044840

CHASSIS, Lower
(Superseded to 7044840YP)

$1253.99

$

Usually ships in 2-12 days

0

Snapper 7058670

CHASSIS, Lower (Euro)

$

$

Currently unavailable

2

Snapper 7036406

BRACKET, Battery Support

$

$

Currently unavailable

3

Snapper 7045227

SKID GUARD, R.H.

$

$

Currently unavailable

4

Snapper 7045226

SKID GUARD L.H.
(Superseded to 7045226YP)

$233.99

$

Usually ships in 2-12 days

0

5

Snapper 7042777

SHIELD, Grass

$

$

Currently unavailable

6

Snapper 7042628

PLATE, Hitch
(Superseded to 7042628YP)

$185.99

$

In Stock, only 2 left!

0

7

Snapper 7042629

PIN, Hitch
(Superseded to 7042629YP)

$47.99

$

Usually ships in 2-12 days

0

8

Snapper 7091598

PIN, Cotter, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7014432

SPRING
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

10

Snapper 7091595

WASHER, 15/32 I.D. x 15/16" O.D., Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

11

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

12

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

14

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

15

Snapper 7091790

BOLT, 3/8-16 x 1-1/4", Carriage, Grade 5
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

16

Snapper 7035638

J-CLIP, Open Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7027181

BOLT, 3/8-16 x 1-1/4" Short Neck Carriage, Grade 5

$

$

Not available
