ZF 2501KH (84574) - Snapper Zero-Turn Mower, 25hp 73" Mower Deck Sub-Assembly Parts Diagram

Zero-Turn Mower, 25hp

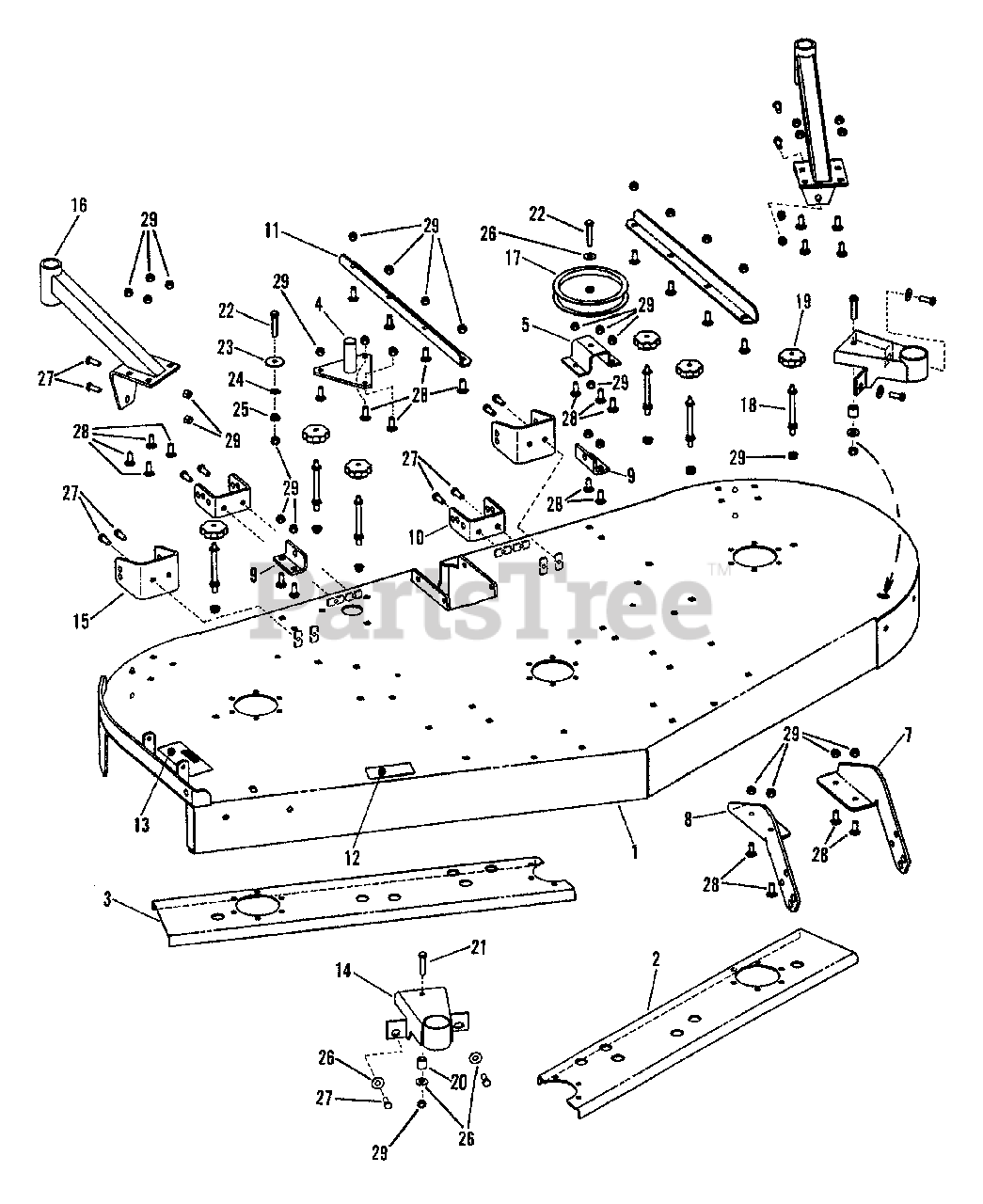

73" Mower Deck Sub-Assembly Parts Diagram

  • Title

1

Snapper 7041839

WELDMENT, 73" Deck

$

$

Currently unavailable

2

Snapper 7046250

CHANNEL, L.H. Deck Stiffener
(Superseded to 7046250YP)

$84.99

$

Usually ships in 2-12 days

0

3

Snapper 7046251

CHANNEL, R.H. Deck Stiffener
(Superseded to 7046251YP)

$84.99

$

Usually ships in 2-12 days

0

4

Snapper 7041295

WELDMENT, Idler Pivot
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

5

Snapper 7036449

STAND, Fixed Idler
(Superseded to 7036449YP)

$18.99

$

Usually ships in 2-12 days

0

?6

Snapper 7035789

PULLEY, Idler 5-1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

7

Snapper 7036459

ROLLER MOUNT, Left Hand
(Superseded to 7036459YP)

$54.99

$

Usually ships in 2-12 days

0

8

Snapper 7036458

ROLLER MOUNT, Right Hand
(Superseded to 7036458YP)

$51.99

$

Usually ships in 2-12 days

0

9

Snapper 7043824

HANGER BRACKET, Rear Deck Lift
(Superseded to 7043824YP)

$21.99

$

In Stock, only 2 left!

0

10

Snapper 7046623

BRACKET, Rear Deck Hanger
(Superseded to 7046623YP)

$33.99

$

Usually ships in 2-12 days

0

11

Snapper 7046509

STIFFENER, Deck

$

$

Currently unavailable

12

Snapper 7046371

DECAL, 73" Deck
(Superseded to 7046371YP)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper 7073647

DECAL, Danger
(Superseded to 7073647YP)

$7.99

$

Usually ships in 2-12 days

0

14

Snapper 7041821

WELDMENT, Gage Wheel
(Superseded to 7041821YP)

$116.99

$

Usually ships in 2-12 days

0

15

Snapper 7036457

BRACKET, Gage Wheel
(Superseded to 7036457YP)

$43.99

$

Usually ships in 2-12 days

0

16

Snapper 7046515

WELDMENT, Caster Support
(Superseded to 7046515YP)

$182.99

$

Usually ships in 2-12 days

0

17

Snapper 7035789

PULLEY, Idler 5-1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

18

Snapper 7029303

STANDOFF, 3-1/2" (5/16-18 Top; 3/8-16 Bottom)
(Superseded to 7029303YP)

$48.99

$

Usually ships in 2-12 days

0

19

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7044752

SPACER
(Superseded to 7044752YP)

$23.99

$

Usually ships in 2-12 days

0

21

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

22

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

23

Snapper 7091331

WASHER, .406 I.D. x 1-1/2" O.D. Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

26

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

In Stock, only 1 left!

0

27

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

28

Snapper 7091640

BOLT, 3/8-16 x 1" square Neck Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

29

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0
