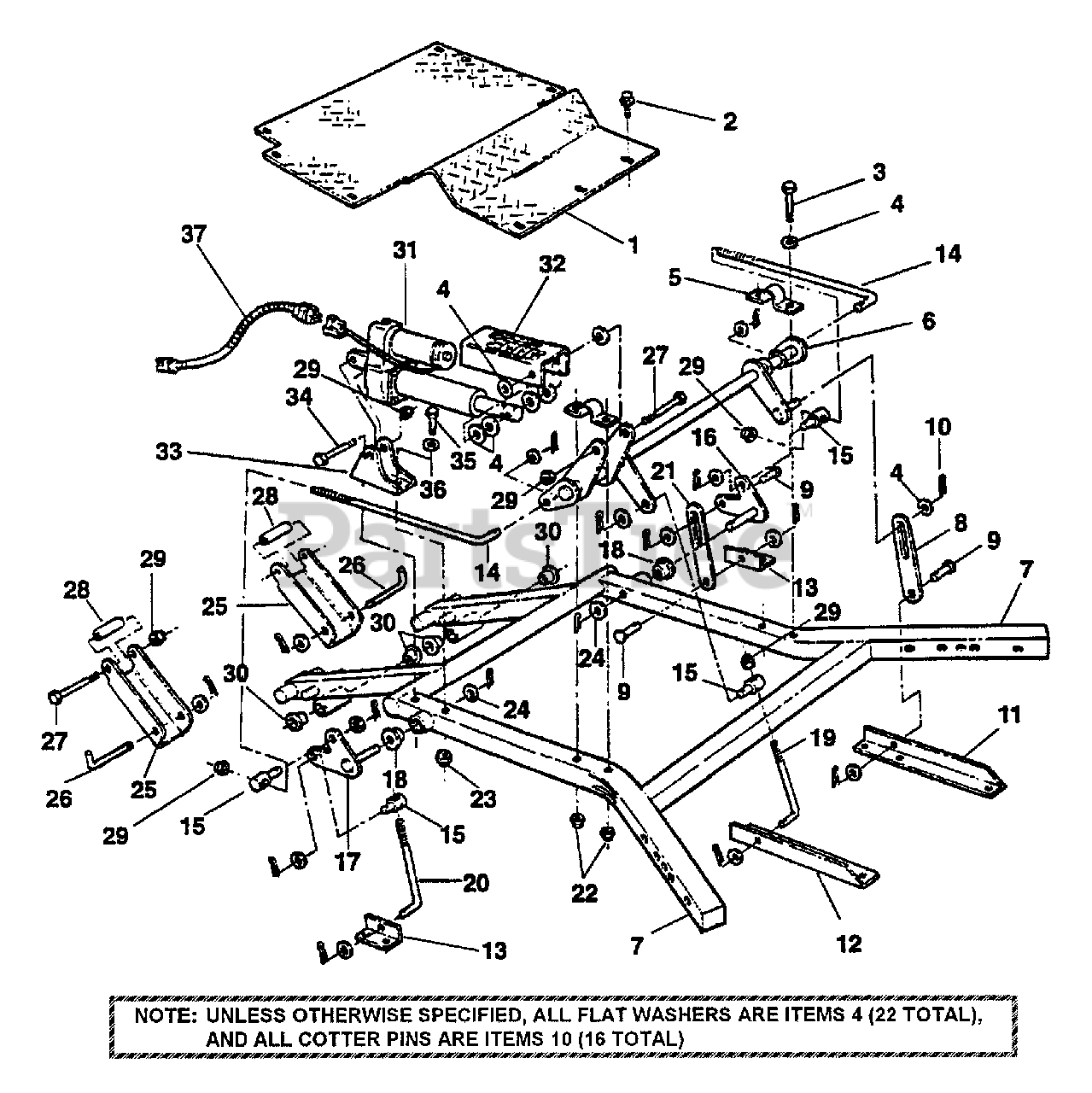

ZF 2501KH (84574) - Snapper Zero-Turn Mower, 25hp 73" Deck Frame Assembly Parts Diagram

Zero-Turn Mower, 25hp

73" Deck Frame Assembly Parts Diagram

  • Title

1

Snapper 7047171

PLATE, Diamond Tread Foot
(Superseded to 7047171YP)

$176.99

$

Usually ships in 2-12 days

0

2

Snapper 7091523

SCREW, 5/16-1 8 x 5/8" Hex Washer Head, Self-Tapping Swage
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

3

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

Note: Was 90219

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 7091587

WASHER, 17/32 Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

5

Snapper 7043803

BRACKET, Deck Lift Hanger
(Superseded to 7043803YP)

$9.49

$

Usually ships in 2-12 days

0

6

Snapper 7046595

ARM, Front Lift (Weldment)
(Superseded to 7046595YP)

$227.99

$

Usually ships in 2-12 days

0

7

Snapper 7047130

FRAME, Deck (Weldment)

$

$

Not available

8

Snapper 7046602

BAR, 7" Lift
(Superseded to 7046602YP)

$15.99

$

Usually ships in 2-12 days

0

9

Snapper 7012802

PIN, 1/2 x 1 1/8" Clevis (YZ)
(Superseded to 7012802SM)

$5.99

$

In Stock, only 2 left!

0

10

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

$4.49

$

In Stock, Qty 11

0

11

Snapper 7046508

ANGLE, Front Deck Mounting (L.H.)
(Superseded to 7046508YP)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper 7046507

ANGLE, Front Deck Mounting (R.H.)
(Superseded to 7046507YP)

$24.99

$

Usually ships in 2-12 days

0

13

Snapper 7043824

BRACKET, Deck Lift, Rear
(Superseded to 7043824YP)

$21.99

$

In Stock, only 2 left!

0

14

Snapper 7046598

ROD, Timing, 1/2" Threaded
(Superseded to 7046598YP)

$19.99

$

In Stock, only 2 left!

0

15

Snapper 7046599

SWIVEL, .50 Thru Hole
(Superseded to 7046599YP)

$24.99

$

Usually ships in 2-12 days

0

16

Snapper 7046596

ARM, Rear Bell Crank (L.H.) (Weldment)
(Superseded to 7046596YP)

$79.99

$

Usually ships in 2-12 days

0

17

Snapper 7046597

ARM, Rear Bell Crank (R.H.) (Weldment)

$

$

Not available

18

Snapper 7035496

BEARING, .75 I.D.
(Superseded to 7035496YP)

$8.99

$

In Stock, only 1 left!

0

19

Snapper 7046856

J-BOLT, 1/2" Dia. x 8 1/2" Long (Front)
(Superseded to 7046856YP)

$23.99

$

Usually ships in 2-12 days

0

20

Snapper 7046857

J-BOLT, 1/2" x 7" Long (Rear)
(Superseded to 7046857YP)

$36.99

$

Usually ships in 2-12 days

0

21

Snapper 7046603

BAR, 5.62 Lift
(Superseded to 7046603YP)

$11.99

$

Usually ships in 2-12 days

0

22

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7090863

WASHER, 13/16 x 1 15/32" (HS)
(Superseded to 7090863YP)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper 7046594

CHANNEL, Deck Stabilizer
(Superseded to 7046594YP)

$50.99

$

Usually ships in 2-12 days

0

26

Snapper 7047178

J-BOLT, Deck Attachment
(Superseded to 7047178YP)

$10.99

$

Usually ships in 2-12 days

0

27

Snapper 7090735

BOLT, 1/2-13 x 4" Hex (HO)
(Superseded to 7090735YP)

$5.49

$

Usually ships in 2-12 days

0

28

Snapper 7046605

SLEEVE, Stabilizer
(Superseded to 7046605YP)

$32.99

$

Usually ships in 2-12 days

0

29

Snapper 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7029258

BUSHING, Suspension
(Superseded to 7029258YP)

$8.49

$

Usually ships in 2-12 days

0

31

Snapper 7036448

LINEAR ACTUATOR, 1000 Lbs., 4" Stroke
(Superseded to 7036448YP)

$1134.99

$

Usually ships in 2-12 days

0

32

Snapper 7036454

INDICATOR, Height Of Cut

$

$

Not available

33

Snapper 7046593

BRACKET, Actuator Anchor
(Superseded to 7046593YP)

$29.99

$

Usually ships in 2-12 days

0

34

Snapper 7091218

SCREW, 1/2 UNC x 2.5 Hex Head Cap (Black Phosphate)
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

35

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

36

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7047166

WIRE HARNESS, Deck Lift (21" Long)
(Superseded to 7047166YP)

$10.99

$

In Stock, only 1 left!

0
