ZF 2501KH (7084574) - Snapper Zero-Turn Mower, 25hp Upper Chassis And Seat Latch Assembly Parts Diagram

Zero-Turn Mower, 25hp

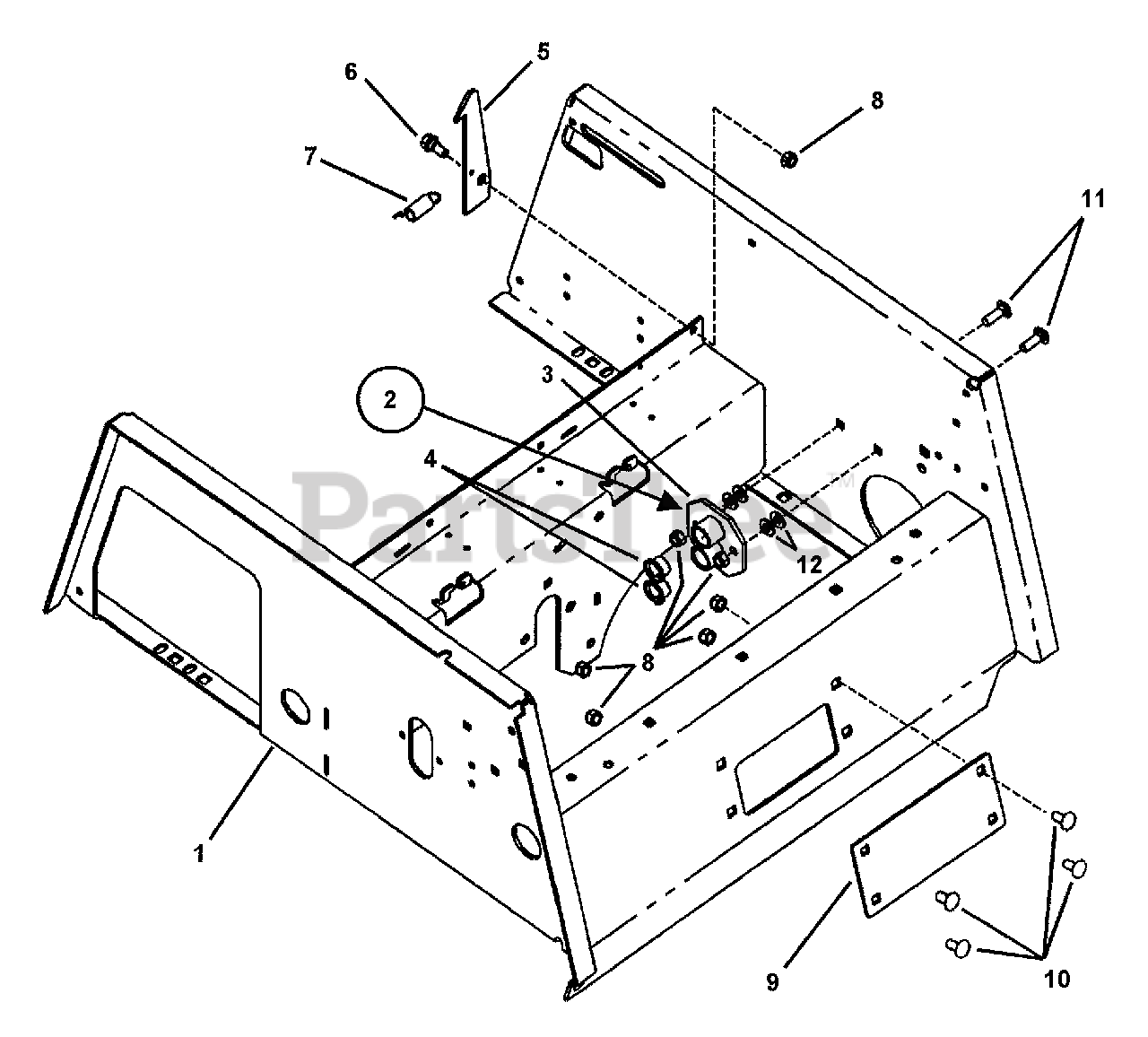

Upper Chassis And Seat Latch Assembly Parts Diagram

  • Title

1

Snapper Pro 7058770

WELDMENT, Upper Chassis

$

$

Not available

2

Snapper Pro 7058766

ASSEMBLY, Bushing Support

Note: (Includes 3 & 4)

$

$

Currently unavailable

3

Snapper Pro 7058768

WELDMENT,Bushing Support

$

$

Not available

4

Snapper Pro 7072934

BUSHING, 5/8" (Teflon Impregnated)

$7.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7072106

LATCH, Seat Support
(Superseded to 7072106YP)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7015761

BOLT, 5/16-18 Shoulder

$5.49

$

In Stock, only 3 left!

0

7

Snapper Pro 7026292

SPRING
(Superseded to 7026292YP)

$11.99

$

In Stock, only 4 left!

0

Snapper Pro 7012706

BEARING, Sleeve
(Superseded to 7012706SM)

Note: Bushing is not shown at the center hole of the cast axle that pivots around Ref# 7

$10.99

$

In Stock, only 4 left!

0

8

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7073277

PLATE, Cover
(Superseded to 7073277YP)

$10.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Carriage

$

$

Not available

11

Snapper Pro 7091714

BOLT, 5/16-18 X 1" Square Neck Carriage, Grade 5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

12

Snapper Pro 7090188

WASHER, 5/16" Flat

Note: Was 91296

$

$

Not available
