ZF 2501KH (7084574) - Snapper Zero-Turn Mower, 25hp Joystick Control Assembly Parts Diagram

Zero-Turn Mower, 25hp

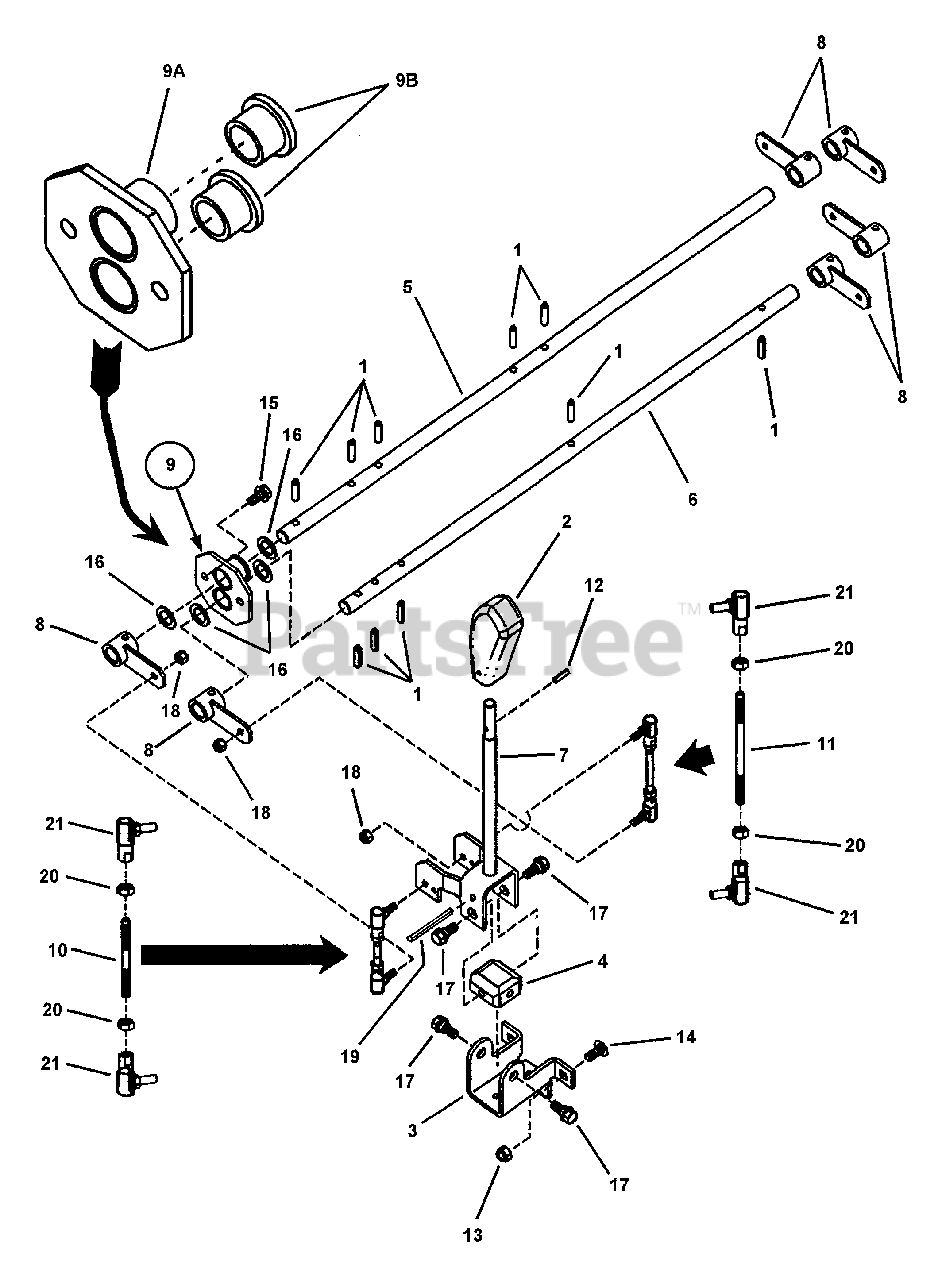

Joystick Control Assembly Parts Diagram

  • Title

1

Snapper Pro 7013072

ROLL PIN, 1/4 x 1"

$3.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 7023656

HANDLE, Plastic
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

3

Snapper Pro 7035532

BRACKET, Joystick Mounting
(Superseded to 7035532YP)

$37.99

$

In Stock, only 3 left!

0

4

Snapper Pro 7035533

BLOCK, Pivot J-Stick Control
(Superseded to 7035533YP)

$22.99

$

In Stock, only 2 left!

0

5

Snapper Pro 7073274

SHAFT, Upper Cross
(Superseded to 7073274YP)

$39.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7073275

SHAFT, Lower Cross
(Superseded to 7073275YP)

$42.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7042599

WELDMENT, Joystick Control Handle

$

$

Not available

8

Snapper Pro 7042638

WELDMENT, Arm/Hub
(Superseded to 7042638YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7058766

ASSEMBLY, Cross Shaft Support

Note: (Includes one 9A and two 9B)

$

$

Currently unavailable

9A

Snapper Pro 7058768

WELDMENT, Cross Shaft Support

$

$

Not available

9B

Snapper Pro 7072934

BUSHING, Teflon Impregnated

$7.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7035908

ROD, Threaded 1/4-28 x 2.71 long

$24.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7035909

ROD, Threaded 1/4-28 x 3.85 long

$

$

Not available

12

Snapper Pro 7090844

ROLL PIN 3/16 x 3/4"

$

$

Not available

13

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4" Carriage, Grade 5

$

$

Not available

15

Snapper Pro 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

16

Snapper Pro 7091628

WASHER, 41/64 I.D. x 1" O.D. Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

17

Snapper Pro 7091800

BOLT, 5/16-18 Shoulder

$

$

Not available

18

Snapper Pro 7091812

NUT, 1/4-28 Hex Nyloc

$3.49

$

In Stock, Qty 13

0

19

Snapper Pro 7091816

ROLL PIN, 1/4 x 2-3/4"

$2.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 7090095

HN, 1/4F GR5 YZ
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 7015753

BALL-JOINT
(Superseded to 7015753YP)

$10.99

$

In Stock, only 1 left!

0
