ZF 2500KH (7084409) - Snapper Zero-Turn Mower, 25hp Seat Support Assembly Parts Diagram

Zero-Turn Mower, 25hp

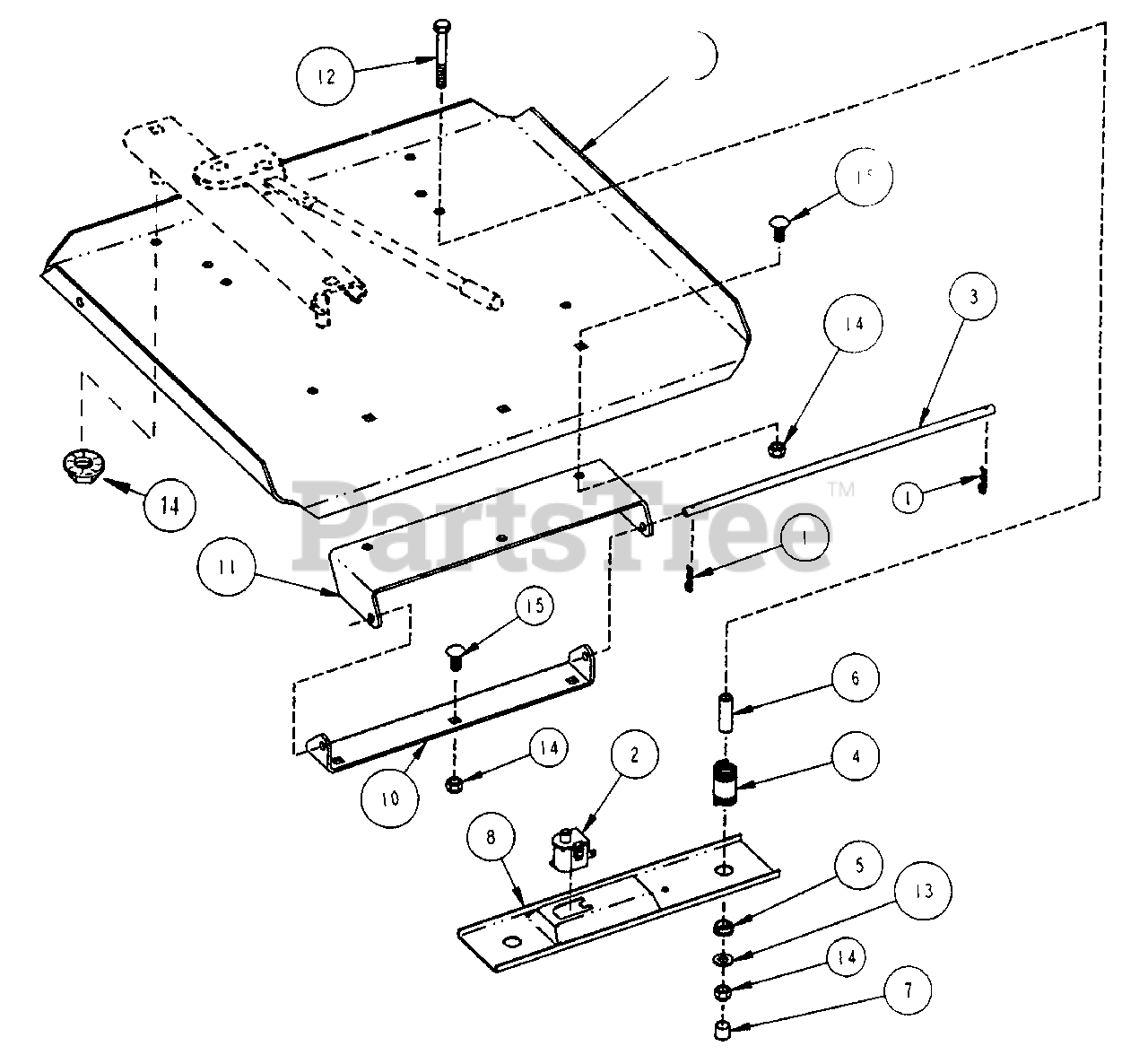

Seat Support Assembly Parts Diagram

  • Title

1

Snapper Pro 7091503

HAIRPIN, 3/32 x 1-1/2
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

2

Snapper Pro 7023354

SWITCH, Seat (Normally Open)
(Superseded to 7023354YP)

Note: Was 17590

$12.99

$

In Stock, Qty 20+

0

3

Snapper Pro 7019035

ROD, 5/16 x 13" Long
(Superseded to 7019035YP)

$21.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7036492

SPRING, .106 Wire Dia, 68 I.D. x 1-1/2"
(Superseded to 7036492YP)

$7.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7022793

BUSHING, Molded Seat, 1/2 I.D., 5/8" O.D.
(Superseded to 7022793YP)

$2.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7022794

SPACER, .31 I.D., 1-3/8" Long

$

$

Currently unavailable

7

Snapper Pro 7023606

CAP, Vinyl, 1/4 I.D., 1/5 O.D.
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

8

Snapper Pro 7033362

HOLDER, Seat Switch
(Superseded to 7033362YP)

$23.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7035827

PLATE, Seat Support
(Superseded to 7035827YP)

$159.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7035828

BRACKET, Lower Seat Hinge
(Superseded to 7035828YP)

$28.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7035839

BRACKET, Upper Seat Support Hinge

$

$

Not available

12

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 7090188

WASHER, 5/16 x 11/16 O.D. Flat

Note: Was 91296

$

$

Not available

14

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4 Short Sq. Nk. Carriage, Grade 5

$

$

Not available
