ZF 2500KH (7084409) - Snapper Zero-Turn Mower, 25hp Hydro Reservoir Assembly Parts Diagram

Zero-Turn Mower, 25hp

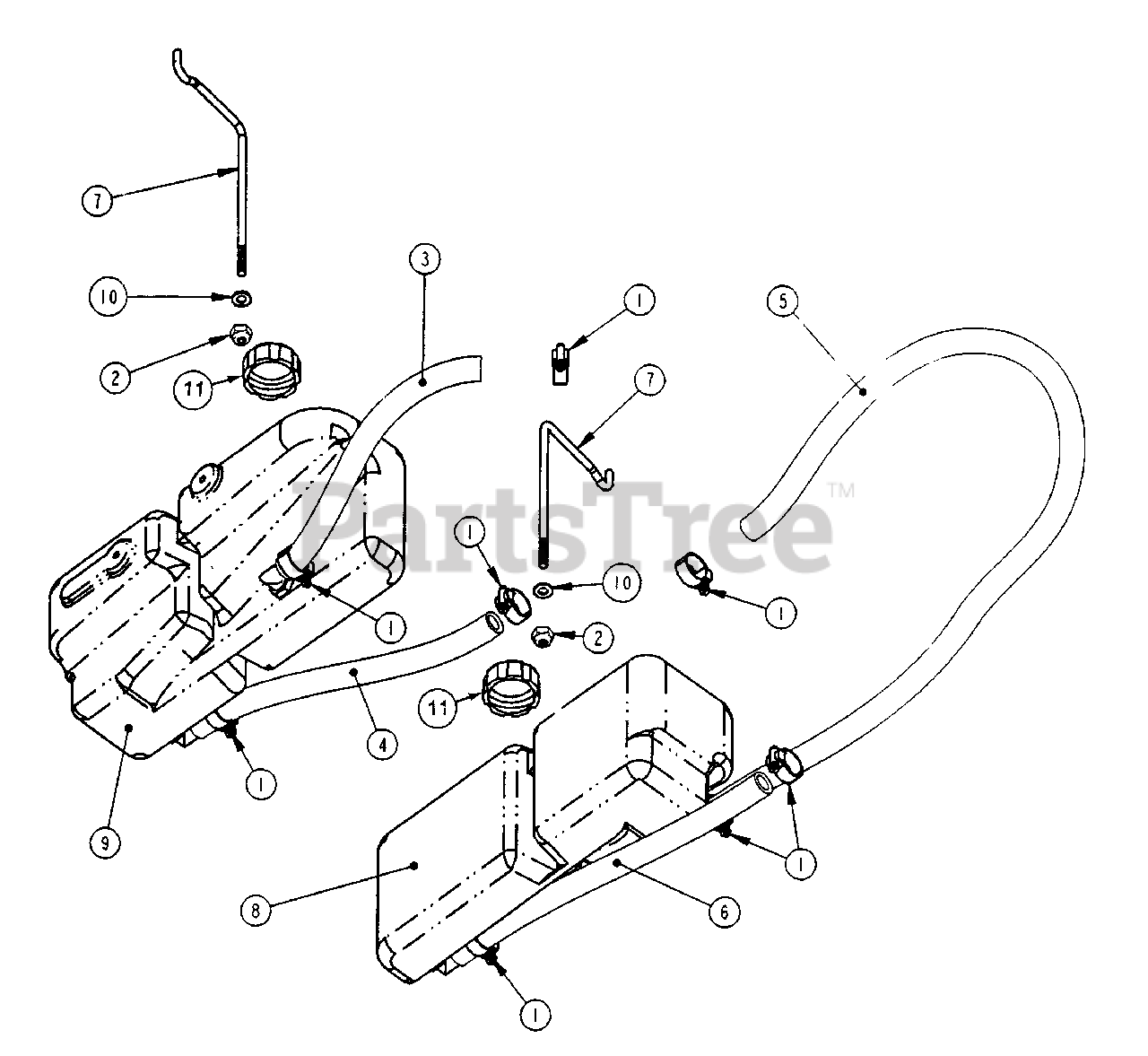

Hydro Reservoir Assembly Parts Diagram

  • Title

1

Snapper Pro 7016130

CLAMP, Hose 13/16"
(Superseded to 7016130YP)

$3.49

$

In Stock, only 1 left!

0

2

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7035514

HOSE, Rubber R.H. Front (.625 I.D. x 13-1/2" Long)
(Superseded to 7035514YP)

$19.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7035515

HOSE, Rubber R.H. Back (.625 I.D. x 16" Long)

$

$

Not available

5

Snapper Pro 7035516

HOSE, Rubber L.H. Front (.625 I.D. x 24" Long)
(Superseded to 7035516YP)

$26.99

$

Usually ships in 2-12 days

0

Snapper Pro 7041834

HOSE, Rubber (.625 I.D.x 34" Long)
(Superseded to 7041834YP)

$36.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7035517

HOSE, Rubber L.H. Back (.625 I.D. x 18" Long)
(Superseded to 7035517YP)

$27.99

$

Usually ships in 2-12 days

0

Snapper Pro 7041833

HOSE, Rubber (.625 I.D. x 6" Long)
(Superseded to 7041833YP)

$12.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7035639

BRACKET, Reservoir
(Superseded to 7035639YP)

$38.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7054703

RESERVOIR, L.H. Hydro

Note: (Includes cap, Item 11)

$

$

Not available

9

Snapper Pro 7054103

RESERVOIR, R.H. Hydro

Note: (Includes cap, Item 11)

$

$

Not available

10

Snapper Pro 7090188

WASHER, 11/32 I.D. x 11/16" O.D.

Note: Was 91296

$

$

Not available

11

Snapper Pro 7035512

CAP, Reservoir

$

$

Not available
