ZF 2500KH (7084409) - Snapper Zero-Turn Mower, 25hp Deck Driveshaft Assembly Parts Diagram

Zero-Turn Mower, 25hp

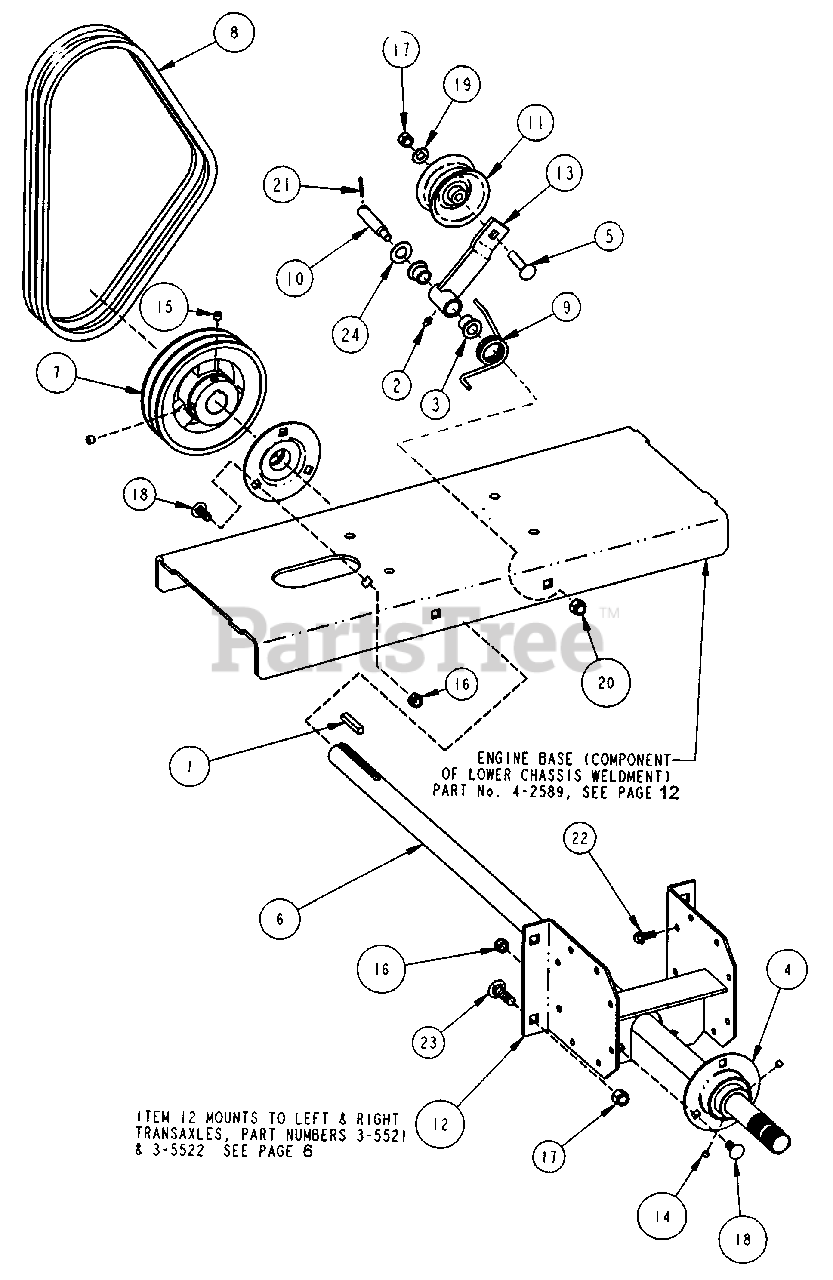

Deck Driveshaft Assembly Parts Diagram

  • Title
1

Snapper Pro 7012315

KEY, 1/4" Square x 2"
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

Note: (Straight, for 3/16" hole)

$3.49

$

In Stock, Qty 12

0

Snapper Pro 7013324

FITTING, Lube
(Superseded to 7013324YP)

Note: (45 degree, for 3/16" hole)

$7.99

$

In Stock, Qty 6

0

3

Snapper Pro 7014409

BUSHING
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 19

0

4

Snapper Pro 7018504

BEARING
(Superseded to 7018504YP)

Note: (Includes item 25)

$140.99

$

In Stock, only 2 left!

0

Snapper Pro 7014266

BEARING, 1" Bore (w/o collar)
(Superseded to 7014266YP)

$94.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7091810

BOLT, 3/8-16 x 1-3/4" Carriage, Grade 5

$

$

Not available

Snapper Pro 7090990

BOLT, 3/8-16 x 2" Carriage, Grade 2
(Superseded to 7090990YP)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7035530

DRIVE SHAFT, Deck

Note: (1" Diameter, 15 Spline)

$

$

Not available

7

Snapper Pro 7035531

PULLEY, Double V

Note: (5.45 O.D. A Section)

$

$

Not available

8

Snapper Pro 7035543

BELT, Deck Drive (HA 36.5)
(Superseded to 7035543YP)

$49.99

$

In Stock, only 1 left!

0

9

Snapper Pro 7035713

SPRING, Tension
(Superseded to 7035713YP)

$28.99

$

In Stock, only 1 left!

0

10

Snapper Pro 7035816

PIN, 3/8-24 UNF
(Superseded to 7035816YP)

$100.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7035867

FLAT IDLER, 2.75 O.D. x 1-1/4" Wide
(Superseded to 7035867YP)

$59.99

$

In Stock, only 2 left!

0

12

Snapper Pro 7042610

BEARING MOUNT (Weldment)
(Superseded to 7042610YP)

$239.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7042626

IDLER ARM, Offset (Weldment)
(Superseded to 7042626YP)

$78.99

$

Usually ships in 2-12 days

0

Snapper Pro 7042622

IDLER ARM, Straight (Weldment)
(Superseded to 7057717YP)

$

$

Not available

14

Snapper Pro 7090776

SET SCREW, 1/4-20 x 1/4" Cone Point
(Superseded to 7090776YP)

$4.49

$

In Stock, Qty 15

0

15

Snapper Pro 7090954

SET SCREW, 5/16-18 x 5/16 Type C
(Superseded to 7090954YP)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

18

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4, Grade 5

$

$

Not available

19

Snapper Pro 7090122

WASHER, 3/8" Flat

Note: Was 91514

$

$

Not available

20

Snapper Pro 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

21

Snapper Pro 7091598

COTTER-PIN, 1/8 x 3/4"

$

$

Not available

22

Snapper Pro 7091787

SCREW, 1/4-20 x 5/8", Hex Flange Lock, Grade 5
(Superseded to 7091787SM)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 7027181

BOLT, 3/8-16 x 1-1/4" Carriage, Grade 5

$

$

Not available

24

Snapper Pro 7091804

WASHER, 9/16 Flat
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

?25

Snapper Pro 7014265

COLLAR, Lock 1"
(Superseded to 7014265YP)

Note: (With 1/4" Set Screw)

$13.99

$

In Stock, Qty 9

0
