ZF 2500KH (7084409) - Snapper Zero-Turn Mower, 25hp 73" Mower Deck Sub-Assembly Parts Diagram

Zero-Turn Mower, 25hp

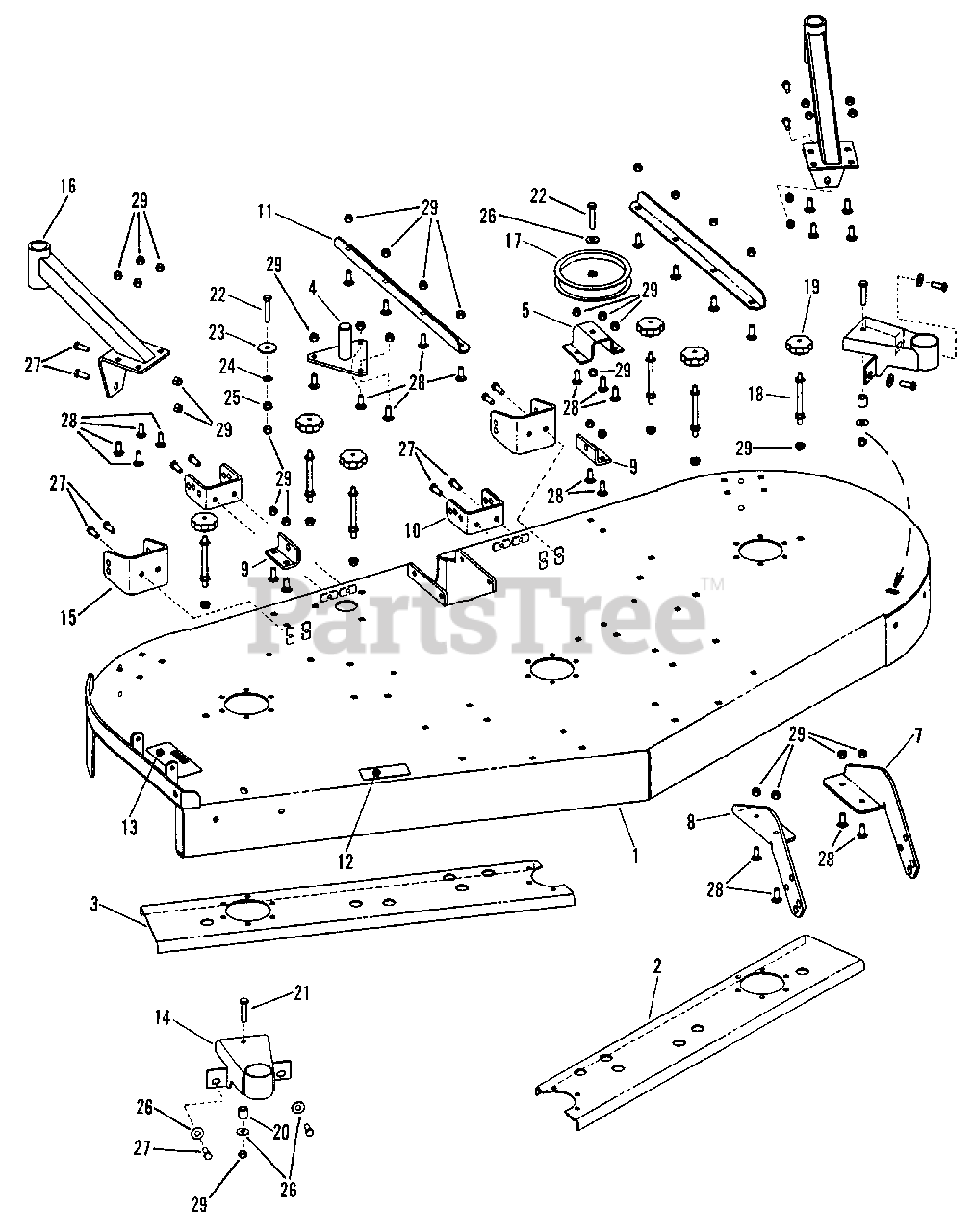

73" Mower Deck Sub-Assembly Parts Diagram

  • Title

1

Snapper Pro 7041839

WELDMENT, 73" Deck

$

$

Currently unavailable

2

Snapper Pro 7046250

CHANNEL, L.H. Deck Stiffener
(Superseded to 7046250YP)

$84.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7046251

CHANNEL, R.H. Deck Stiffener
(Superseded to 7046251YP)

$84.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7041295

WELDMENT, Idler Pivot
(Superseded to 7041295YP)

$44.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7036449

STAND, Fixed Idler
(Superseded to 7036449YP)

$18.99

$

Usually ships in 2-12 days

0

?6

Snapper Pro 7035789

PULLEY, Idler 5-1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

7

Snapper Pro 7036459

ROLLER MOUNT, L.H.
(Superseded to 7036459YP)

$54.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7036458

ROLLER MOUNT, R.H.
(Superseded to 7036458YP)

$51.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7043824

HANGER BRACKET, Rear Deck Lift
(Superseded to 7043824YP)

$21.99

$

In Stock, only 2 left!

0

10

Snapper Pro 7046623

BRACKET, Rear Deck Hanger
(Superseded to 7046623YP)

$33.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 7046509

STIFFENER, Deck

$

$

Currently unavailable

12

Snapper Pro 7046371

DECAL, 73" Deck
(Superseded to 7046371YP)

$5.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7022522

DECAL, Warning
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 7041821

WELDMENT, Gage Wheel
(Superseded to 7041821YP)

$116.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7036457

BRACKET, Gage Wheel
(Superseded to 7036457YP)

$43.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7046515

WELDMENT, Caster Support

$

$

Not available

17

Snapper Pro 7035789

PULLEY, Idler 5-1/2" O.D.
(Superseded to 7035789YP)

$59.99

$

In Stock, Qty 5

0

18

Snapper Pro 7029303

STANDOFF, 3-1/2"
(Superseded to 7029303YP)

$48.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 7023735

KNOB, 5/16-18

$6.99

$

In Stock, Qty 20+

0

20

Snapper Pro 7044752

SPACER
(Superseded to 7044752YP)

$23.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5

$

$

Not available

22

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

23

Snapper Pro 7091331

WASHER, .406 I.D. x 1-1/2" O.D. Flat

$

$

Not available

24

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, only 1 left!

0

25

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

26

Snapper Pro 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

Note: Was 91300

$3.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

28

Snapper Pro 7091640

BOLT, 3/8-16 x 1" square Neck Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

29

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0
