ZF 2500KH (7084343) - Snapper Zero-Turn Mower, 25hp Upper Drive Shaft Assembly Parts Diagram

Zero-Turn Mower, 25hp

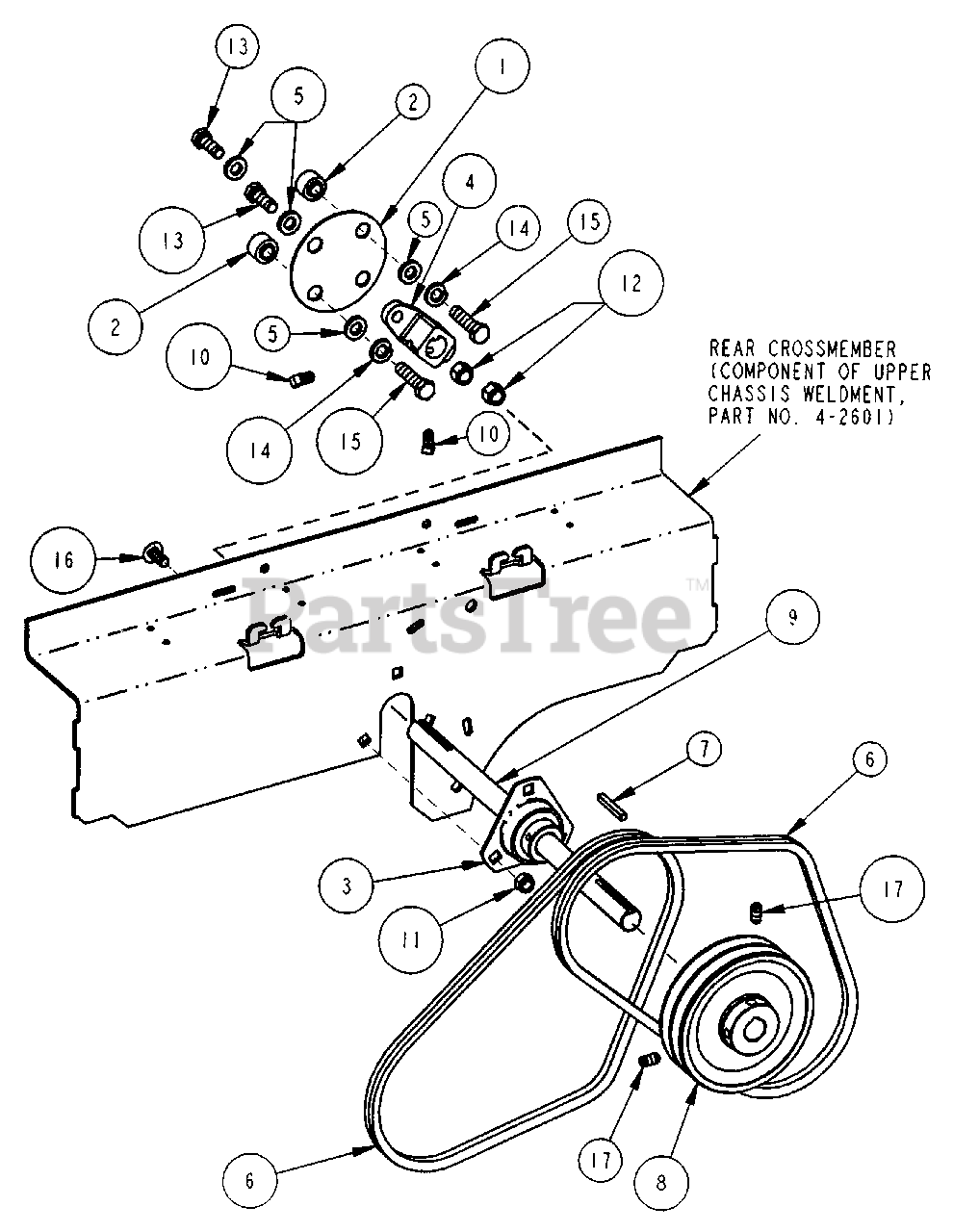

Upper Drive Shaft Assembly Parts Diagram

  • Title

1

Snapper Pro 7014338

DISC, Flexible
(Superseded to 7014338YP)

$74.99

$

In Stock, Qty 9

0

2

Snapper Pro 7014803

SPACER, LT16
(Superseded to 7014803YP)

$45.99

$

In Stock, only 1 left!

0

3

Snapper Pro 7018547

BEARING, 3/4"
(Superseded to 7018547YP)

Note: (Includes collar, Part No. 1-4625)

$170.99

$

Usually ships in 2-12 days

0

Snapper Pro 7014268

BEARING, 3/4"
(Superseded to 7018547YP)

Note: (W/o collar)

$170.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 7018626

HUB, Drive Shaft Adapter
(Superseded to 7018626YP)

$317.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7032070

WASHER, 13/32 I.D. x 3/4 O.D., Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

6

Snapper Pro 7035544

BELT, 36-1/2"
(Superseded to 7035544YP)

$26.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7091803

KEY, 3/16 Square x 1-1/2" Long

$

$

Not available

8

Snapper Pro 7035564

PULLEY, Cast Iron Dual V 4.95 Effective O.D.

Note: (Includes two of item 17)

$

$

Not available

9

Snapper Pro 7035811

DRIVE SHAFT, 3/4"
(Superseded to 7035811YP)

$88.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7090848

SET SCREW, 5/16-18 x 1/2" Square Head Cup Point
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

13

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

14

Snapper Pro 5025171

WASHER, 3/8" SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

15

Snapper Pro 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5

$

$

Not available

16

Snapper Pro 7091508

BOLT, 5/16-18 x 3/4", Carriage, Grade 5

$

$

Not available

17

Snapper Pro 7091802

SCREW, 5/16-18 x 5/8", Socket-Head
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0
