ZF 2500KH (7082517) - Snapper Zero-Turn Mower, 25hp Drive Tire/Wheel Assembly Parts Diagram

Zero-Turn Mower, 25hp

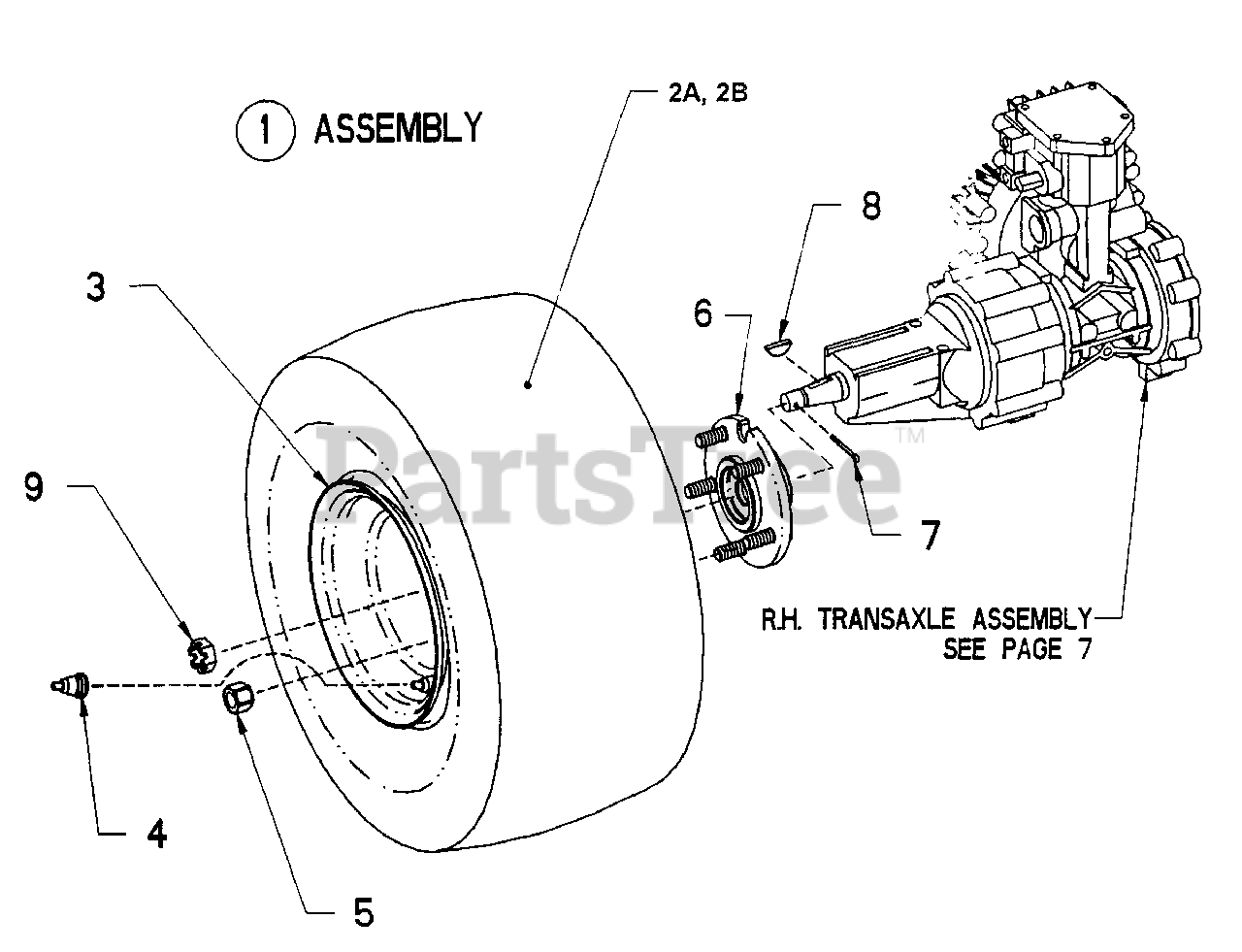

Drive Tire/Wheel Assembly Parts Diagram

  • Title

1

Snapper Pro 7054109

ASSEMBLY, Rear Tire & Rim
(Superseded to 7054109YP)

Note: (Includes Item 2A, 3 & 4)

$222.99

$

Usually ships in 2-12 days

0

Snapper Pro 7054510

ASSEMBLY, Rear Tire & Rim
(Superseded to 7054510YP)

Note: (Includes 2B, 3 & 4)

$266.99

$

Usually ships in 2-12 days

0

2A

Snapper Pro 7054110

TIRE, 20 x 10.00-8 4 ply "Multi-trac C/S"
(Superseded to 7054110YP)

$208.99

$

Usually ships in 2-12 days

0

2B

Snapper Pro 7044707

TIRE, 21 x 11.00-8 "All Terrain 101"

$

$

Not available

3

Snapper Pro 7054111

RIM, 8" Dia. X 7-3/4"

$

$

Not available

4

Snapper Pro 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 7027192

NUT, 1/2-20 Lug (5)
(Superseded to 7027192SM)

$2.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 7054461

ASSEMBLY, Wheel Hub

$

$

Not available

7

Snapper Pro 7091793

PIN, Cotter, 9/64 x 1-1/2

$2.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 7091778

KEY, #808 Woodruff
(Superseded to 7091778YP)

$3.49

$

Usually ships in 2-12 days

0

Snapper Pro 7091978

KEY, #806 Woodruff
(Superseded to 7091978YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091828

NUT, 3/4-20 Slotted Hex

$

$

Not available
