ZF 2500K (82517) - Snapper Zero-Turn Mower, 25hp Lower Chassis/Caster Wheel Assembly Parts Diagram

Zero-Turn Mower, 25hp

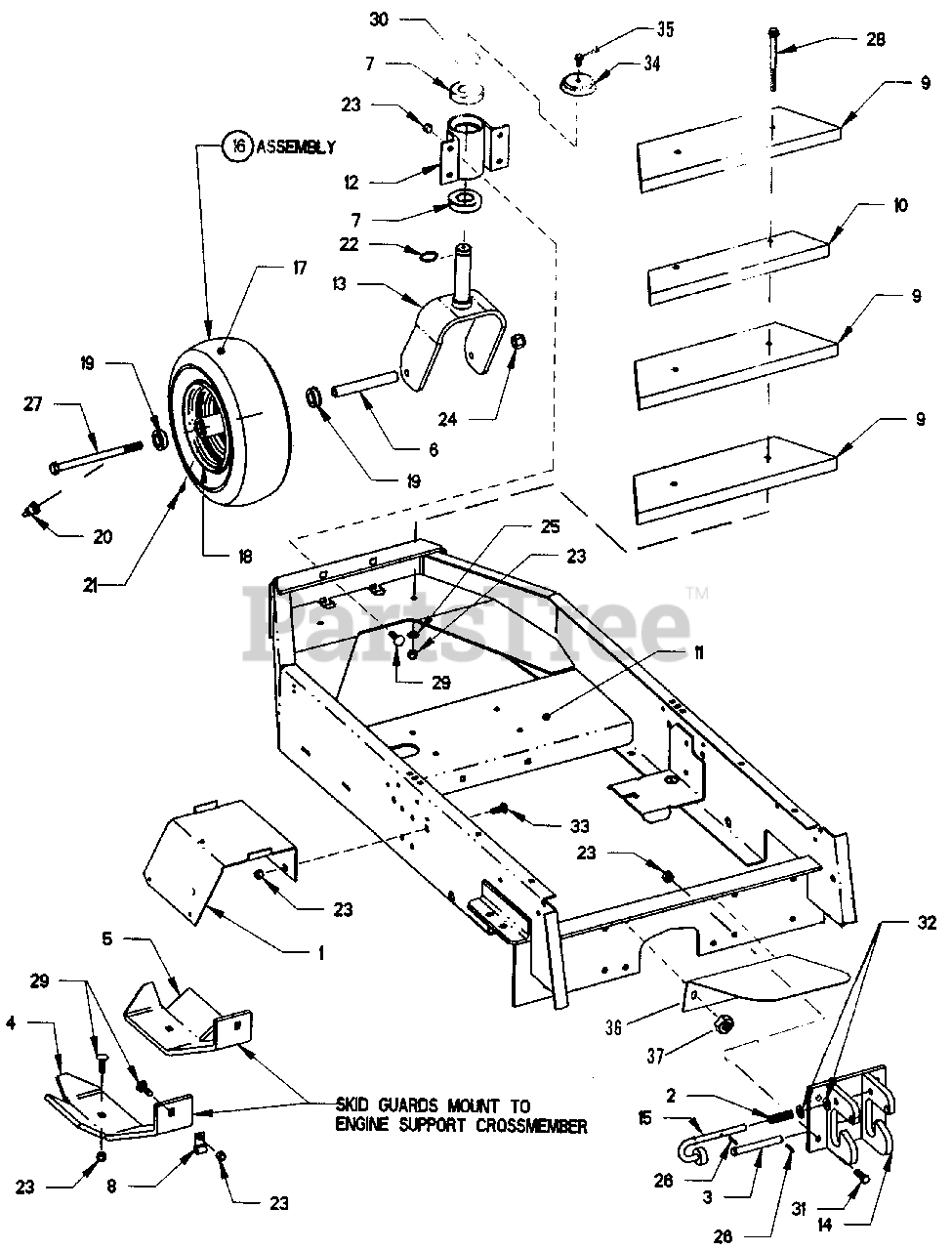

Lower Chassis/Caster Wheel Assembly Parts Diagram

  • Title

1

Snapper 7036406

BRACKET, Battery Support

$

$

Currently unavailable

2

Snapper 7014432

SPRING
(Superseded to 7014432YP)

$7.99

$

Usually ships in 2-12 days

0

3

Snapper 7029074

PIN, Clevis 1/2 x 4"
(Superseded to 7029074YP)

$29.99

$

Usually ships in 2-12 days

0

4

Snapper 7046968

SKID GUARD, R.H.
(Superseded to 7046968YP)

Note: Was 35468

$91.99

$

Usually ships in 2-12 days

0

5

Snapper 7046968

SKID GUARD, L.H.
(Superseded to 7046968YP)

Note: Was 35469

$91.99

$

Usually ships in 2-12 days

0

6

Snapper 7035476

SLEEVE, Axle
(Superseded to 7035476YP)

$31.99

$

In Stock, only 1 left!

0

7

Snapper 7035602

BEARING, 30mm x 62mm
(Superseded to 7035602YP)

$27.99

$

Usually ships in 2-12 days

0

8

Snapper 7035638

J-CLIP, Open Cushioned
(Superseded to 7035638YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7035822

COUNTERWEIGHT, Large

$

$

Currently unavailable

10

Snapper 7035823

COUNTERWEIGHT, Small

$

$

Currently unavailable

11

Snapper 7042589

CHASSIS, Lower
(Superseded to 7042589YP)

$1310.99

$

Usually ships in 2-12 days

0

12

Snapper 7042590

SUPPORT, Caster
(Superseded to 7061966YP)

$1082.99

$

Usually ships in 2-12 days

0

13

Snapper 7042591

YOKE, Caster
(Superseded to 7042591YP)

$182.99

$

In Stock, only 1 left!

0

14

Snapper 7042628

PLATE, Hitch
(Superseded to 7042628YP)

$185.99

$

In Stock, only 2 left!

0

15

Snapper 7042629

PIN, Hitch
(Superseded to 7042629YP)

$47.99

$

Usually ships in 2-12 days

0

16

Snapper 7054087

ASSEMBLY, Tire & Rim

Note: (Includes Items 17 thru 21)

$

$

Not available

17

Snapper 7035474

TIRE, 13 x 5.00-6 4 Ply
(Superseded to 7035474YP)

$95.99

$

Usually ships in 2-12 days

0

18

Snapper 7035475

RIM

$

$

Not available

19

Snapper 7028722

BEARING
(Superseded to 7028722YP)

$29.99

$

In Stock, Qty 9

0

20

Snapper 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper 7076998

FITTING, Lube
(Superseded to 703153)

Note: Was 12700

$3.99

$

In Stock, Qty 12

0

22

Snapper 7010965

RING, 1-3/16" External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

23

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 7091325

NUT, 1/2-13 Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

25

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091598

PIN, Cotter, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

27

Snapper 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

28

Snapper 7091786

BOLT, 3/8-16 x 4-3/4", Grade 5

$

$

Not available

29

Snapper 7091790

BOLT, 3/8-16 x 1-1/4", Carriage, Grade 5
(Superseded to 703130)

$3.99

$

In Stock, Qty 13

0

30

Snapper 7091795

WASHER, 1-1/4 I.D. x 1-7/8 O.D. Flat
(Superseded to 7091795YP)

$5.49

$

Usually ships in 2-12 days

0

31

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

32

Snapper 7091595

WASHER, 15/32 I.D. x 15/16" O.D., Flat
(Superseded to 703183)

$3.99

$

In Stock, only 2 left!

0

33

Snapper 7091640

BOLT, 3/8-16 x 1" Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

34

Snapper 7036578

CAP, Caster Shaft
(Superseded to 7036578YP)

$30.99

$

Usually ships in 2-12 days

0

35

Snapper 7090361

SCREW, 5/16-18 x 5/8" Self Tapping
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

36

Snapper 7042777

SHIELD, Grass

$

$

Currently unavailable

37

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0
