ZF 2101DKU (84575) - Snapper Zero-Turn Mower, 21hp Kubota 61" Mower Deck Components (Part 2) Parts Diagram

Zero-Turn Mower, 21hp Kubota

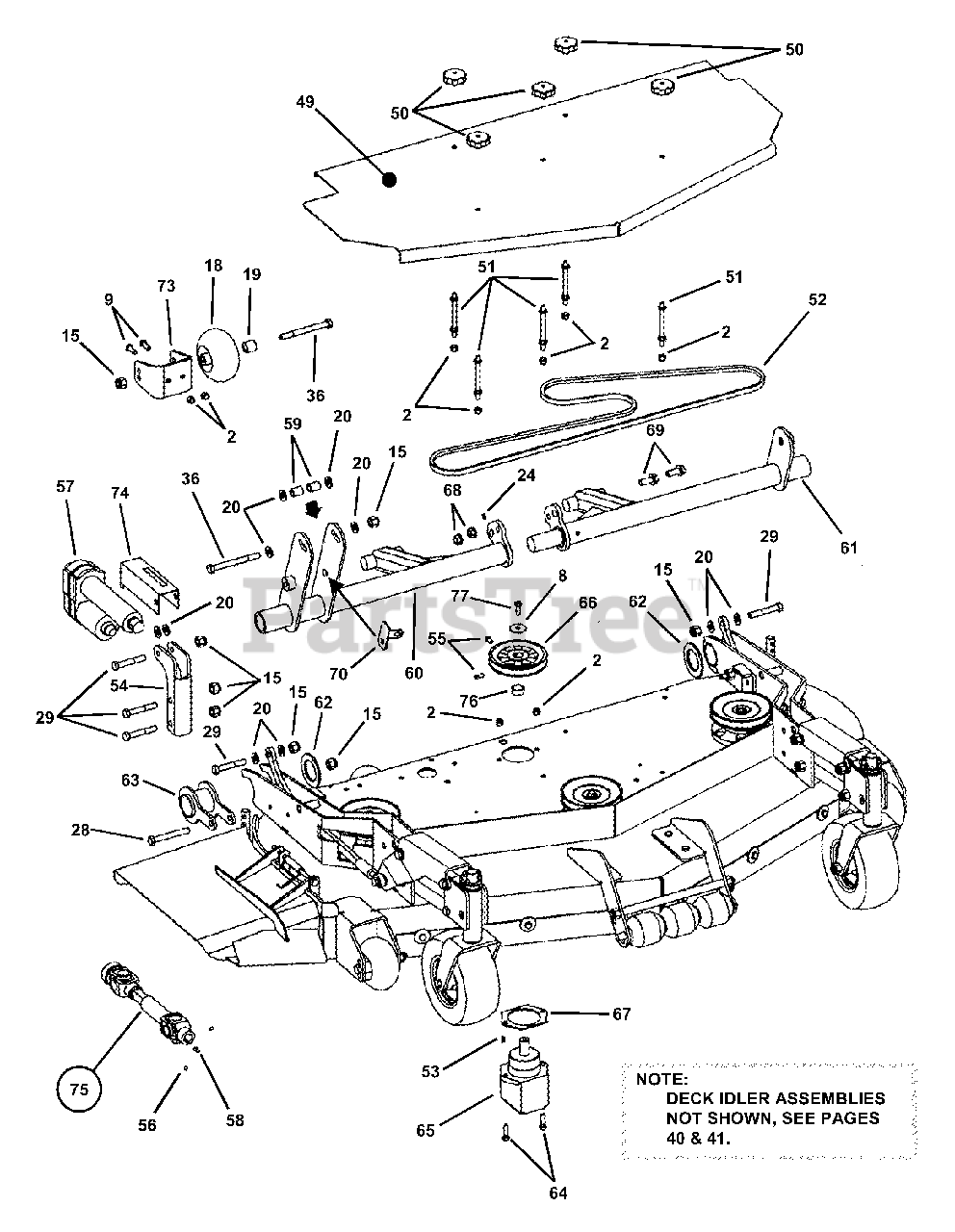

61" Mower Deck Components (Part 2) Parts Diagram

  • Title

2

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

8

Snapper 7091331

WASHER, 13/32 x 1-1/2" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

15

Snapper 7091325

NUT, 1/2-13 Hex Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

18

Snapper 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

19

Snapper 7036456

SPACER, Gage Wheel

$

$

Not available

20

Snapper 7091587

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

24

Snapper 7076998

FITTING, Lube 1/4-28 Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 12

0

28

Snapper 7029355

BOLT, 1/2-13 x 3-3/4" Hex Head Cap, Grade 5
(Superseded to 7029355YP)

$5.99

$

Usually ships in 2-12 days

0

29

Snapper 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 1 left!

0

36

Snapper 5025017X40

BOLT, 1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 2 left!

0

49

Snapper 7046729

COVER, 61" Deck

$

$

Currently unavailable

50

Snapper 7023735

KNOB, 5/16-18 Thread
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

51

Snapper 7029303

STANDOFF, 3-1/2"
(Superseded to 7029303YP)

$48.99

$

Usually ships in 2-12 days

0

52

Snapper 7035542

V-BELT, 61" (134.5") HB
(Superseded to 7035542YP)

$92.99

$

Usually ships in 2-12 days

0

53

Snapper 7010008

KEY, 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

Note: Was 91823

$4.49

$

Usually ships in 2-12 days

0

54

Snapper 7036447

MOUNT, Motor (Front)
(Superseded to 7036447YP)

$39.99

$

Usually ships in 2-12 days

0

55

Snapper 7091802

SCREW, 5/16-18 x 5/8" Square Head Set w/locking patch
(Superseded to 1930540SM)

$4.49

$

In Stock, Qty 11

0

56

Snapper 7090132

SCREW, 3/8-16 x 3/8" Hex Recess Set
(Superseded to 7090132YP)

$3.49

$

In Stock, Qty 5

0

57

Snapper 7036448

SCREWJACK, Warner Electric 1000 lbs.
(Superseded to 7036448YP)

$1134.99

$

Usually ships in 2-12 days

0

58

Snapper 7010211

KEY, #9 Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

59

Snapper 7036453

SPACER, Motor, Rear
(Superseded to 7036453YP)

$24.99

$

Usually ships in 2-12 days

0

60

Snapper 7042662

MAIN LINK (Weldment)
(Superseded to 7042662YP)

$347.99

$

Usually ships in 2-12 days

0

61

Snapper 7042661

MAIN LINK (Weldment) Left Hand
(Superseded to 7042661YP)

$347.99

$

Usually ships in 2-12 days

0

62

Snapper 7036452

SPACER, Tube
(Superseded to 7036452YP)

$9.99

$

Usually ships in 2-12 days

0

63

Snapper 7042660

HOLDER, Pivot (Weldment)
(Superseded to 7042660YP)

$119.99

$

Usually ships in 2-12 days

0

64

Snapper 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

65

Snapper 7058342

GEARBOX, Right Angle
(Superseded to 7058342YP)

Note: (Peerless P/N 1000-52)

$512.99

$

In Stock, only 4 left!

0

66

Snapper 7074466

PULLEY, Cast 5.45" Outside Diameter
(Superseded to 7074466YP)

Note: Was 35788

$

$

Not available

67

Snapper 7036455

SHIM, Gearbox
(Superseded to 7036455YP)

$31.99

$

Usually ships in 2-12 days

0

68

Snapper 7091544

NUT, 1/2-13 Hex Flange Lock, Grade 5
(Superseded to 7091544SM)

$3.49

$

Usually ships in 2-12 days

0

69

Snapper 7091323

BOLT, 1/2-13 x 1-1/4" Hex Flange Lock, Grade 5
(Superseded to 7091323YP)

$7.99

$

Usually ships in 2-12 days

0

70

Snapper 7036450

BRACKET, Strain Relief
(Superseded to 7036450YP)

$11.99

$

Usually ships in 2-12 days

0

?71

Snapper 7035779

RELIEF, Strain
(Superseded to 7035779YP)

Note: (See "Electrical Components (Except Wiring)")

$3.49

$

Usually ships in 2-12 days

0

?72

Snapper 7042834

HARNESS, Deck Lift
(Superseded to 7042834YP)

Note: (See "Wiring Components (Diesel Only)")

$11.99

$

Usually ships in 2-12 days

0

73

Snapper 7036457

BRACKET, Gage Wheel
(Superseded to 7036457YP)

$43.99

$

Usually ships in 2-12 days

0

74

Snapper 7036454

INDICATOR, Height-of-Cut

$

$

Not available

75

Snapper 7054104

ASSEMBLY, Telescoping Drive Shaft
(Superseded to 7054104YP)

Note: (Includes two set screws, p/n 90201 and one 1/4-28 grease fitting, p/n 12700)

$

$

Not available

76

Snapper 7035668

SPACER
(Superseded to 7035668YP)

$33.99

$

Usually ships in 2-12 days

0

77

Snapper 7090160

SCREW, 3/8-24 x 1", Hex Head Cap, Grade 5
(Superseded to 7090160YP)

$3.49

$

In Stock, only 2 left!

0

?78

Snapper 7026107

GREASE, Multi-Purpose

$

$

Currently unavailable

?79

Snapper 7061865

BAG, Hardware for Drive Shaft

Note: (See "Hardware Bags")

$

$

Currently unavailable
