ZF 2101DKU (7084575) - Snapper Zero-Turn Mower, 21hp Kubota Wide-Stance Caster Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

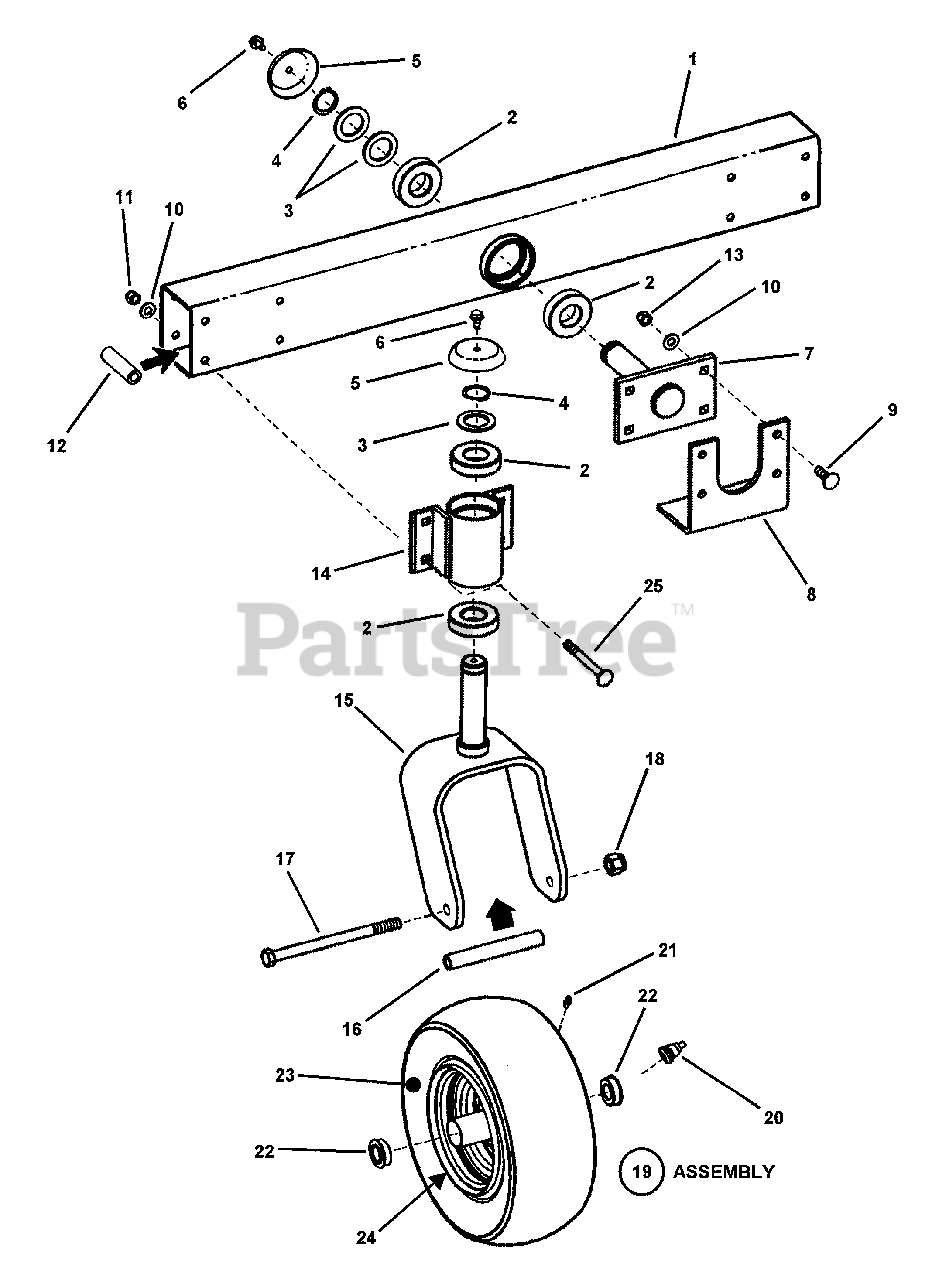

Wide-Stance Caster Assembly Parts Diagram

  • Title

1

Snapper Pro 7042961

WELDMENT, Axle

$

$

Not available

2

Snapper Pro 7035602

BEARING, 30mm x 62mm
(Superseded to 7035602YP)

$27.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 7091795

WASHER, 1-1/4 I.D. x 1-7/8" O.D. Flat

$5.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 7010965

RING, 1-3/16 External Retaining
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 6

0

5

Snapper Pro 7036578

CAP, Caster Shaft
(Superseded to 7036578YP)

$30.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7090361

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

7

Snapper Pro 7045212

WELDMENT, Front Axle Pivot
(Superseded to 7045212BMYP)

$

$

Not available

8

Snapper Pro 7042978

BRACKET, Axle Stop
(Superseded to 7042978YP)

$91.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 7091945

BOLT, 3/8-16 X 1-1/2" Short Neck Carriage, Grade 5

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 7090122

WASHER, 3/8" Flat

Note: Was 91514

$

$

Not available

11

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Snapper Pro 7042928

TUBE, 13/32 I.D. x 3/4 O.D. x 2.70

$18.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7091585

NUT, 3/8-16 Hex Center Lock, Grade B or 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

14

Snapper Pro 7042590

WELDMENT, Caster Support
(Superseded to 7061966YP)

$1082.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7042591

WELDMENT, Caster Yoke

$176.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 7035476

SPACER, Bearing
(Superseded to 7035476YP)

$31.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5025017X56

BOLT, HEX, 1/2-13 X 7, GD 8, YZ
(Superseded to 5025017X56YP)

$14.99

$

In Stock, Qty 8

0

18

Snapper Pro 7091325

NUT, 1/2-13 Nyloc
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

19

Snapper Pro 7054087

ASSEMBLY, Tire & Rim

Note: (Includes 20 thru 24)

$

$

Not available

20

Snapper Pro 7012234

VALVE, Air
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 7076998

FITTING, Lube
(Superseded to 703153)

Note: Was 12700

$3.99

$

In Stock, Qty 12

0

22

Snapper Pro 7028722

BEARING
(Superseded to 7028722YP)

$29.99

$

In Stock, Qty 9

0

23

Snapper Pro 7035474

TIRE, 13 x 5.00-6, 4 Ply
(Superseded to 7035474YP)

$95.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 7035475

RIM

$

$

Not available

25

Snapper Pro 7091888

BOLT, 3/8-16 x 4" Square Neck Carriage, Grade 5

$10.99

$

In Stock, only 1 left!

0
