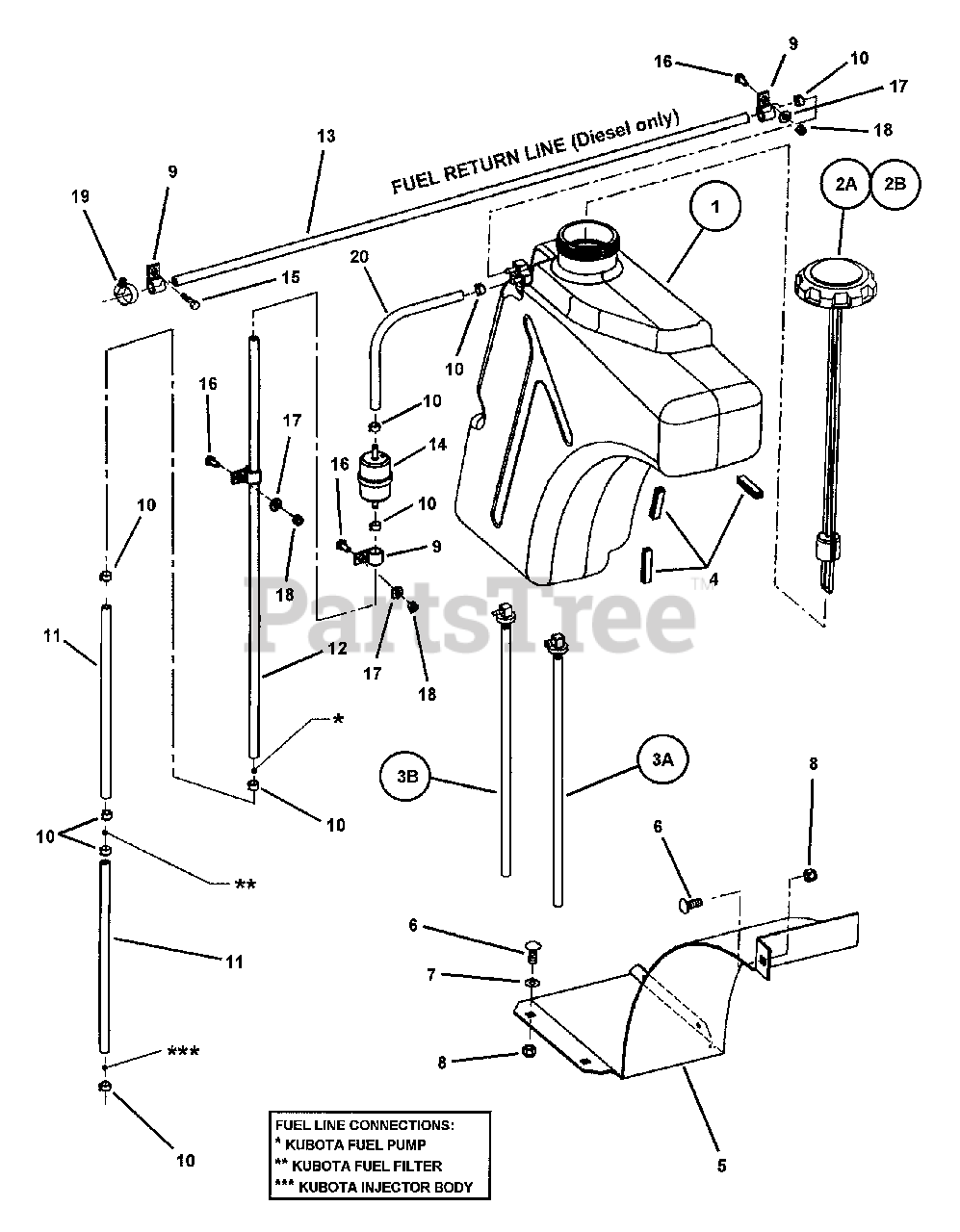

ZF 2101DKU (7084575) - Snapper Zero-Turn Mower, 21hp Kubota Fuel Tank Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

Fuel Tank Assembly Parts Diagram

  • Title

1

Snapper Pro 7054626

TANK, Fuel
(Superseded to 7054626YP)

Note: (Shown); (Includes items 2A, 3A & 3B)

$239.99

$

Usually ships in 2-12 days

0

Snapper Pro 7058017

TANK, Fuel
(Superseded to 7058017YP)

Note: (Not shown); (Includes items 2B & 3A); (23 HP Gas Engine)

$233.99

$

Usually ships in 2-12 days

0

2A

Snapper Pro 7054654

ASSEMBLY, Cap/Gauge
(Superseded to 7054654YP)

$108.99

$

Usually ships in 2-12 days

0

2B

Snapper Pro 7054119

ASSEMBLY, Cap/Gauge
(Superseded to 7054119YP)

Note: (23 HP Gas Engine)

$117.99

$

In Stock, only 4 left!

0

3A

Snapper Pro 57692

ASSEMBLY, 8mm (5/16") Fuel Pickup

$

$

Currently unavailable

3B

Snapper Pro 57693

ASSEMBLY, 4mm (5/32") Fuel Pickup

$

$

Currently unavailable

4

Snapper Pro 7026746

TRIM, 2 Inch
(Superseded to 7026746YP)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7035504

BRACKET, Fuel Tank Support
(Superseded to 7035504YP)

$132.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 7091640

BOLT, Square Neck Carriage, Grade 5
(Superseded to 703814)

$4.49

$

In Stock, only 4 left!

0

7

Snapper Pro 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

9

Snapper Pro 7091959

HARNESS CLIP, 3/8"
(Superseded to 7091959YP)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 7091957

CLAMP, 9/16" Hose

$

$

Currently unavailable

11

Snapper Pro 7046346

HOSE, Fuel (8mm x 12")

$

$

Currently unavailable

12

Snapper Pro 7046347

HOSE, Fuel (8mm x 28")
(Superseded to 7046347YP)

$12.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7046349

HOSE, Fuel (8mm x 36")
(Superseded to 7046349YP)

Note: (21 HP Diesel Engine)

$13.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7046364

FILTER, Fuel, 5/16" Hose

Note: (Kohler Part No. 240 050 02); (Hayes-Dana P/N. G81)

$

$

Not available

15

Snapper Pro 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

16

Snapper Pro 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, Grade 5
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 18

0

17

Snapper Pro 7091294

WASHER, 1/4" Flat

$

$

Not available

18

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

19

Snapper Pro 7015617

CLAMP, Hose

$

$

Currently unavailable

20

Snapper Pro 7046348

HOSE, Fuel (6-1/2")
(Superseded to 7046348YP)

$6.49

$

Usually ships in 2-12 days

0
