Zeeter HL 42 - Dixon 42" Zeeter Zero-Turn Mower (2004) MOWER DECK Parts Diagram

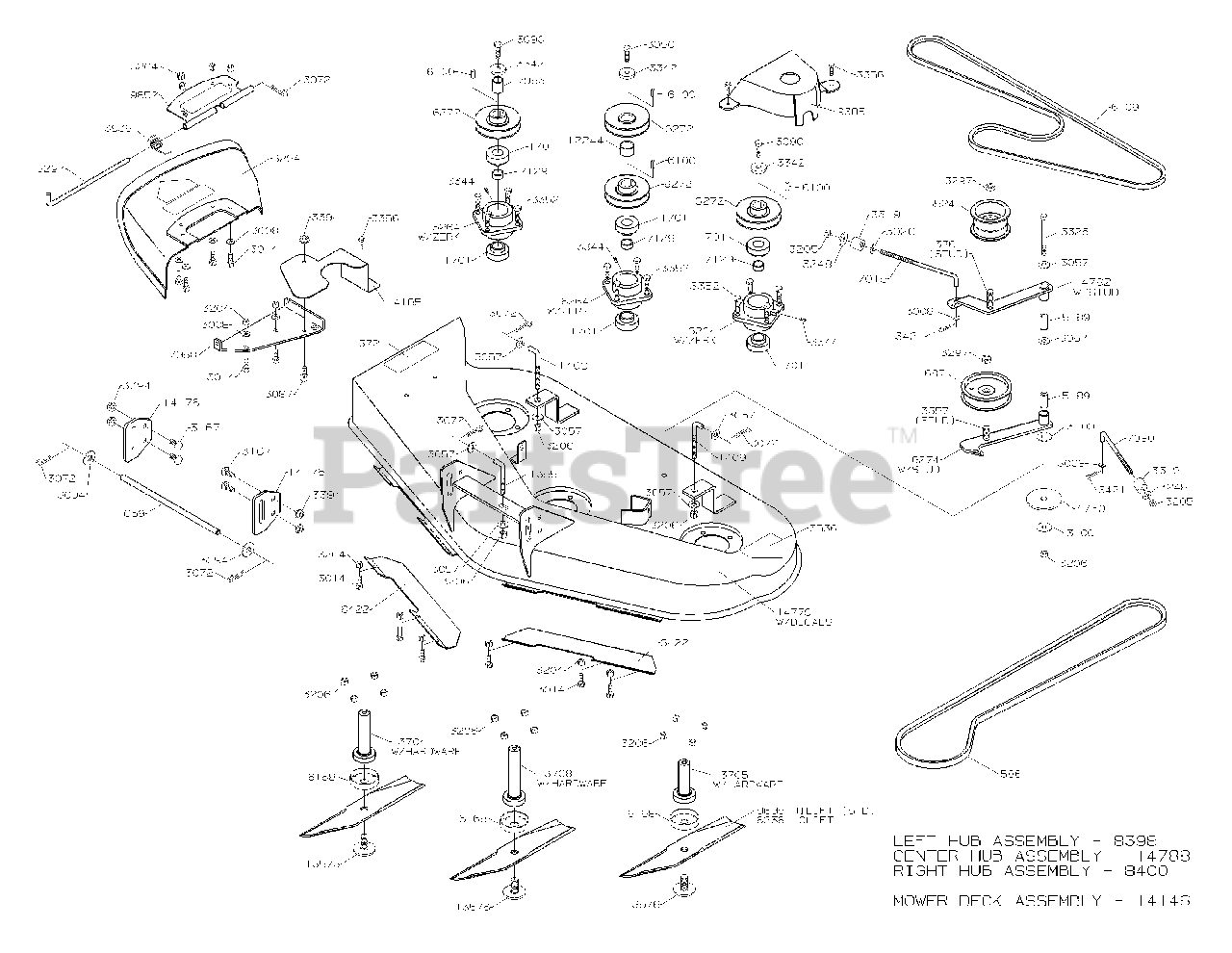

42" Zeeter Zero-Turn Mower

MOWER DECK Parts Diagram

  • Title

1059

1059

PLATED SHAFT - 13.0

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1409

1409

L ROD 3-7/8

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3100

3100

7/16 HD FLAT WASHER

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3326

3326

3/8-16X4 HHB GR8

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3357

3357

IDLER STUD

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

4750

4750

SHIPPING PLATE

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5861

5861

BELT

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6109

6109

V-BELT SERPENTINE

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6236

6236

MOWER BLADE 42 STD

$

$

Not available

6264

6264

DECK HUB W/ZERK

$

$

Not available

6272

6272

V-PULLEY

$

$

Not available

6274

6274

SERP. IDLER WLDT

$

$

Not available

6294

6294

PLASTIC DEFLECTOR

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

6422

6422

BLOW-BY-BAFFLE

$

$

Not available

6524

6524

IDLER PULLEY

$

$

Not available

7015

7015

L` ROD - 7 3/4`

$

$

Not available

7129

7129

SPACER .459

$

$

Not available

7958

7958

HINGE DEFLECTOR

$

$

Not available

7980

7980

L-ROD

$

$

Not available

7983

7983

SPACER

$

$

Not available

8398

8398

LH HUB ASM 42/542

$

$

Not available

8400

8400

RH HUB ASM 42/542

$

$

Not available

8688

8688

HI-LIFT BLADE-42`

$

$

Not available

9385

9385

BELT GUARD LH

$

$

Not available

9852

9852

DEFLECTOR MT BRKT

$

$

Not available

12244

12244

SPACER HUB

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13704

13704

R/B 13704 SHAFT 42 L

$

$

Not available

13705

13705

SHAFT 42 S

$

$

Not available

13708

13708

SHAFT 50 S

$

$

Not available

14146

14146

DECK ASM 42` ZEETER

$

$

Not available

14176

14176

42`DECK WEAR PLATE

$

$

Not available

14185

14185

PULLEY GUARD

$

$

Not available

14779

14779

DECK ASM 42` ZEETER

$

$

Not available

14788

14788

$

$

Not available

14792

14792

IDLER ARM W/STUD

$

$

Not available
