Zeeter HL 30 - Dixon 30" Zeeter Zero-Turn Mower (2004) MOWER DECK Parts Diagram

30" Zeeter Zero-Turn Mower

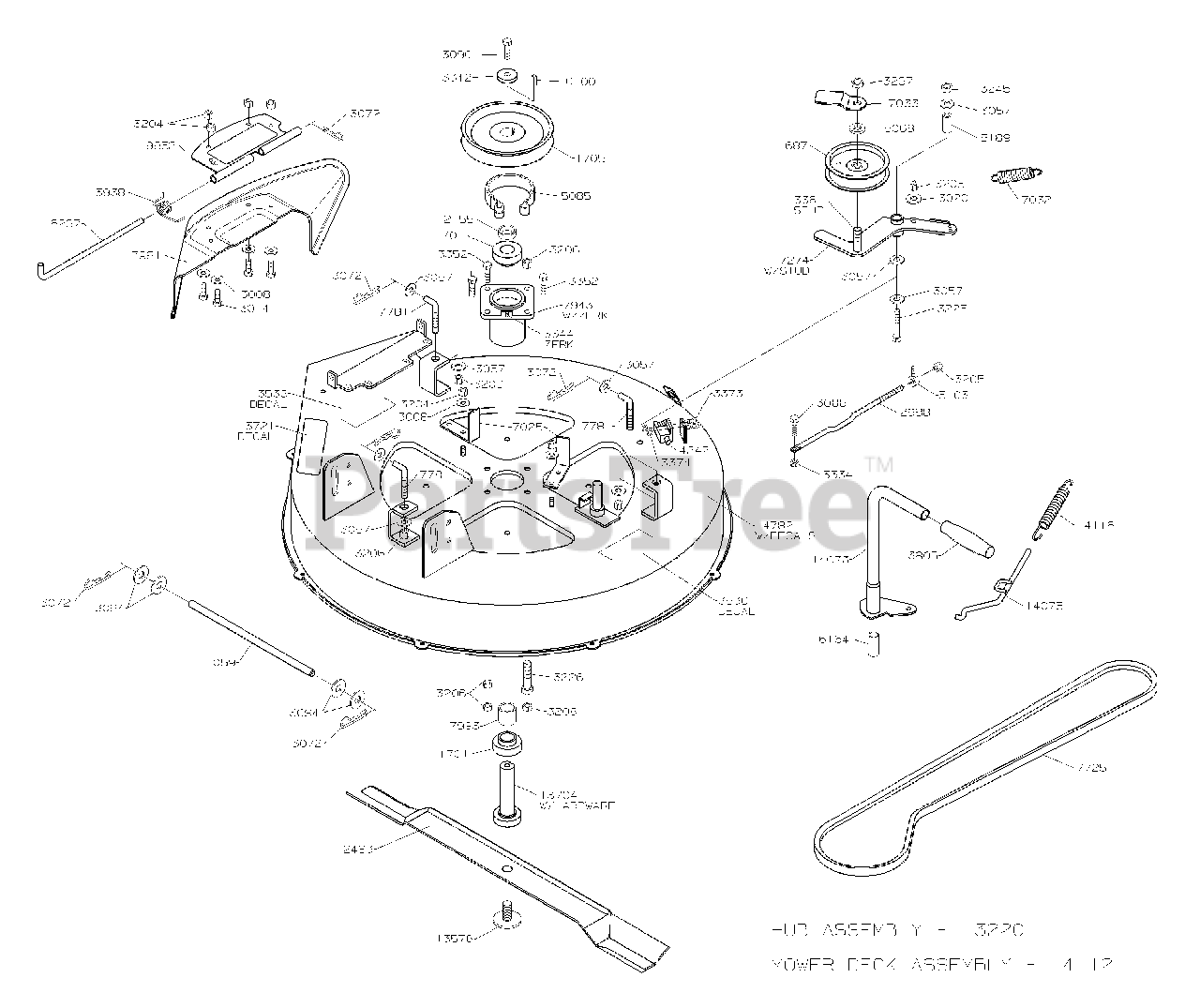

MOWER DECK Parts Diagram

  • Title

1059

1059

PLATED SHAFT - 13.0

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1705

1705

V-PULLEY 6.5 DIA

$

$

Not available

2155

2155

HUB BEARING SPACER

$

$

Not available

2483

2483

30` STD BLADE

$

$

Not available

2988

2988

BRAKE ROD

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3225

3225

3/8-16X2-1/4 HHB GR5

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3245

3245

3/8-16 THIN PROF NY

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3361

3361

STUD 1/2-13 X 2

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3374

3374

6-32 HE NUT W/NY

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3805

3805

R/B 3805 HANDLE GRIP

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5103

5103

R/B 5103 THUMBSCREW

$

$

Not available

5189

5189

BUSHING

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6164

6164

BUSH BRZ 5/8X3/4X1.6

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7025

7025

BELT RETAINER

$

$

Not available

7032

7032

SPRING - 3.50

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

7274

7274

IDLER W/STUD

$

$

Not available

7725

7725

DECK DRIVE BELT

$

$

Not available

7781

7781

L-ROD - REAR

$

$

Not available

7943

7943

DECK HUB 30` MACHINED

$

$

Not available

7981

7981

DEFLECTOR - 30"

$

$

Not available

7983

7983

SPACER

$

$

Not available

9852

9852

DEFLECTOR MT BRKT

$

$

Not available

13220

13220

HUB ASM 30`

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13704

13704

R/B 13704 SHAFT 42 L

$

$

Not available

14073

14073

DECK ENGAGE HANDLE WLDT.

$

$

Not available

14075

14075

ROD

$

$

Not available

14112

14112

DECK ASM 30`

$

$

Not available

14116

14116

SPRING

$

$

Not available

14782

14782

WLDT - 30` DECK

$

$

Not available
