Zeeter HL 30 - Dixon 30" Zeeter Zero-Turn Mower (2004) CHASSIS Parts Diagram

30" Zeeter Zero-Turn Mower

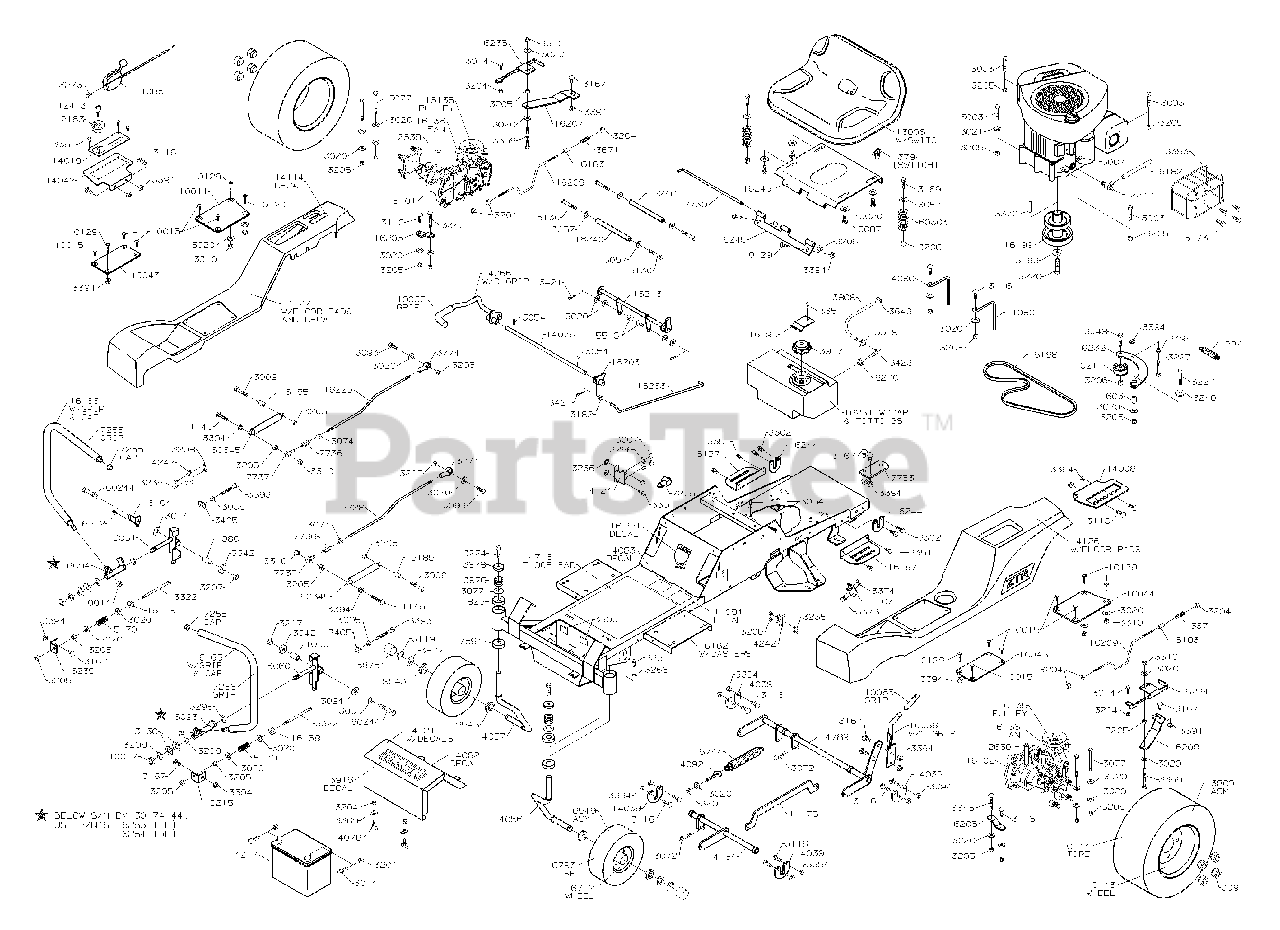

CHASSIS Parts Diagram

  • Title

1080

1080

BUSHING

$

$

Not available

1603

1603

BUSHING

$

$

Not available

1657

1657

SPRING

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

2638

2638

BREATHER CAP ASM

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3005

3005

5/16-18UNC HX NUT

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3009

3009

5/16-18X1-3/4HHB GR8

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3048

3048

3/8-16UNCX1 1/2HH BLT

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3077

Dixon 3077

5/16-18X2-3/4HHB GR5

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3130

3130

CONTACT BELLSPR 1/2

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3169

3169

R/B HCS 3/8-16 X 1 GR 5 ZD

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3207

3207

NUT, HEX 1/2-13 W/NY

$

$

Not available

3208

Dixon 3208

#10-24 HEX NUT W/NY

$

$

Not available

3220

3220

7/16-20X2-3/4 HHB G5

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3227

3227

5/16-18X2 HHB GR5

$

$

Not available

3235

3235

#10-24X5/8PHIL PANHD

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3298

3298

WASHER.515X.874X.031

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3302

3302

5/16-18X1/2 WHTF SCR

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3322

3322

5/16-18X5-1/2HHB GR8

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3345

3345

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3359

3359

5/16-18X3HHBG5 ALTHD

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3374

3374

6-32 HE NUT W/NY

$

$

Not available

3393

3393

5/16-18X2-1/2 HHB GD5

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3423

3423

ELBOW W/FILTER

$

$

Not available

3649

Dixon 3649

FUEL LINE CLAMP

$

$

Not available

3671

3671

SPRING-.390ID X 1.56

$

$

Not available

3774

3774

RH ROD END

$

$

Not available

3808

3808

HOSE 1/4 X 5.5

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3947

3947

FUEL CAP

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5516

5516

SWIVEL

$

$

Not available

6512

6512

#10-32X1/2` HHTRS

$

$

Not available

6549

6549

TIRE ASSEMBLY

$

$

Not available

6744

6744

SPRING

$

$

Not available

6792

6792

FRONT WHEEL (SILVER)

$

$

Not available

6793

6793

FRONT TIRE WB

$

$

Not available

7255

7255

CAP

$

$

Not available

7256

7256

SLEEVE

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7730

7730

SEAT HINGE PIN

$

$

Not available

7736

7736

ROD END COUPLER

$

$

Not available

7737

7737

ROD END LH

$

$

Not available

7753

7753

HITCH

$

$

Not available

8270

8270

TANK FITTING

$

$

Not available

9543

9543

CASTER WHEEL BEARING

$

$

Not available

10014

Dixon 10014

1/2-13HEX NUT W/NYL

$

$

Not available

10015

10015

1/4`NYLON TREE RIVET

$

$

Not available

10017

10017

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

10036

10036

HANDLE DECK LIFT

$

$

Not available

10043

10043

FRONT FOOT PAD 3000

$

$

Not available

10044

10044

REAR FLOOR PAD 3000

$

$

Not available

10065

10065

GRIP

$

$

Not available

10129

10129

5/16-18X1 FLANGED SCREW

$

$

Not available

10143

10143

REAR WHEEL

$

$

Not available

10144

10144

R/B 10144 REAR TIRE

$

$

Not available

11145

11145

5/16-18 X 2GR.5 CARR.BOL

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12237

12237

3/8X2 GALV PIPE NIPP

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

13393

13393

MUFFLER GUARD

$

$

Not available

13794

13794

SEAT SWITCH

$

$

Not available

13800

13800

REAR WHEEL AND TIRE

$

$

Not available

13806

13806

SEAT W/SWITCH

$

$

Not available

14019

14019

CONTROL PANEL

$

$

Not available

14038

14038

DECK LIFT QUADRANT

$

$

Not available

14039

14039

DECK HANGER

$

$

Not available

14042

14042

CONTROL PANEL MOUNT

$

$

Not available

14056

14056

CASTER AXLE WLDT-LH

$

$

Not available

14057

14057

CASTER AXLE WLDT-RH

$

$

Not available

14066

14066

BRAKE SHAFT END RH MACH.

$

$

Not available

14076

14076

SEAT FRAME PIN PLATED

$

$

Not available

14078

14078

1/4 X 20 X 1 WING BOLT

$

$

Not available

14080

14080

BELT GUIDE

$

$

Not available

14082

14082

DECAL, CAUTION

$

$

Not available

14083

14083

DECAL, DRIVE LEVERS

$

$

Not available

14084

14084

DECAL, BLADE DRIVE

$

$

Not available

14085

14085

THROTTLE CABLE

$

$

Not available

14092

14092

EYE BOLT

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

14121

14121

BAT. COVER W/DECALS

$

$

Not available

14126

14126

LH FENDER ASM.

$

$

Not available

14127

14127

RH FENDER ASM

$

$

Not available

14175

14175

R/B 14175 TIE BAR

$

$

Not available

14184

14184

LIFT SHFT WLDT-FRONT

$

$

Not available

14716

14716

FLOOR PAD

$

$

Not available

14789

14789

LIFT SHAFT WLDT 30 REAR

$

$

Not available

16060

16060

STEER PIVOT LH

$

$

Not available

16061

16061

STEER PIVOT RH

$

$

Not available

16093

16093

CONTROL WLDT. LH

$

$

Not available

16094

16094

CONTROL WLDT. RH

$

$

Not available

16101

16101

HYDRO

$

$

Not available

16102

16102

HYDRO(313-2200R)

$

$

Not available

16104

16104

SWITCH PLATE

$

$

Not available

16107

16107

SWITCH

$

$

Not available

16130

16130

3/8-16X2-1/2 HHB GR8

$

$

Not available

16135

16135

$

$

Not available

16136

16136

HYDRO FAN

$

$

Not available

16158

16158

RUBBER WASHER

$

$

Not available

16162

16162

$

$

Not available

16163

16163

CONTROL LEVER ASM.

$

$

Not available

16182

16182

OIL DRAIN HOSE

$

$

Not available

16183

16183

$

$

Not available

16185

16185

SPACER

$

$

Not available

16187

16187

PULLEY GUARD

$

$

Not available

16188

16188

DECAL, ZEETER 30HL

$

$

Not available

16196

16196

HOLD DOWN

$

$

Not available

16198

16198

BELT 30 ZEZT

$

$

Not available

16199

16199

PULLEY ENGINE

$

$

Not available

16203

16203

BRAKE TAB WLDT. MACH

$

$

Not available

16205

16205

FRONT SUPPORT 30

$

$

Not available

16207

16207

FRAME SUPPORT RH

$

$

Not available

16208

16208

FRAME SUPPORT LH

$

$

Not available

16209

16209

BRAKE ROD

$

$

Not available

16211

16211

PULLEY IDLER

$

$

Not available

16213

16213

BRAKE SHAFT WLDT.

$

$

Not available

16215

16215

LEVER ANCHOR

$

$

Not available

16228

16228

LEVER ROD

$

$

Not available

16231

16231

FUEL TANK W/CAP&FITTINGS

$

$

Not available

16232

16232

IDLER WLDT.

$

$

Not available

16233

16233

BRAKE OVER ROD

$

$

Not available

16234

16234

HYDRO RELEASE LH

$

$

Not available

16235

16235

HYDRO RELEASE RH

$

$

Not available

16239

16239

LEVER ANCHOR

$

$

Not available

16240

16240

TIE BAR

$

$

Not available

16243

16243

SEAT PLATE

$

$

Not available

16244

16244

BRAKE HORSESHOE

$

$

Not available

16245

16245

SEAT PLATE HINGE

$

$

Not available

16253

16253

CONTROL WLDT LH

$

$

Not available

16254

16254

CONTROL WLDT RH

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available

60303

60303

SEAT SPRING

$

$

Not available

60345

60345

DAMPNER DUAL ACITON #326

$

$

Not available

74144

74144

$

$

Not available
