Zeeter 36 - Dixon 36" Zeeter Zero-Turn Mower (2004) MOWER DECK Parts Diagram

36" Zeeter Zero-Turn Mower

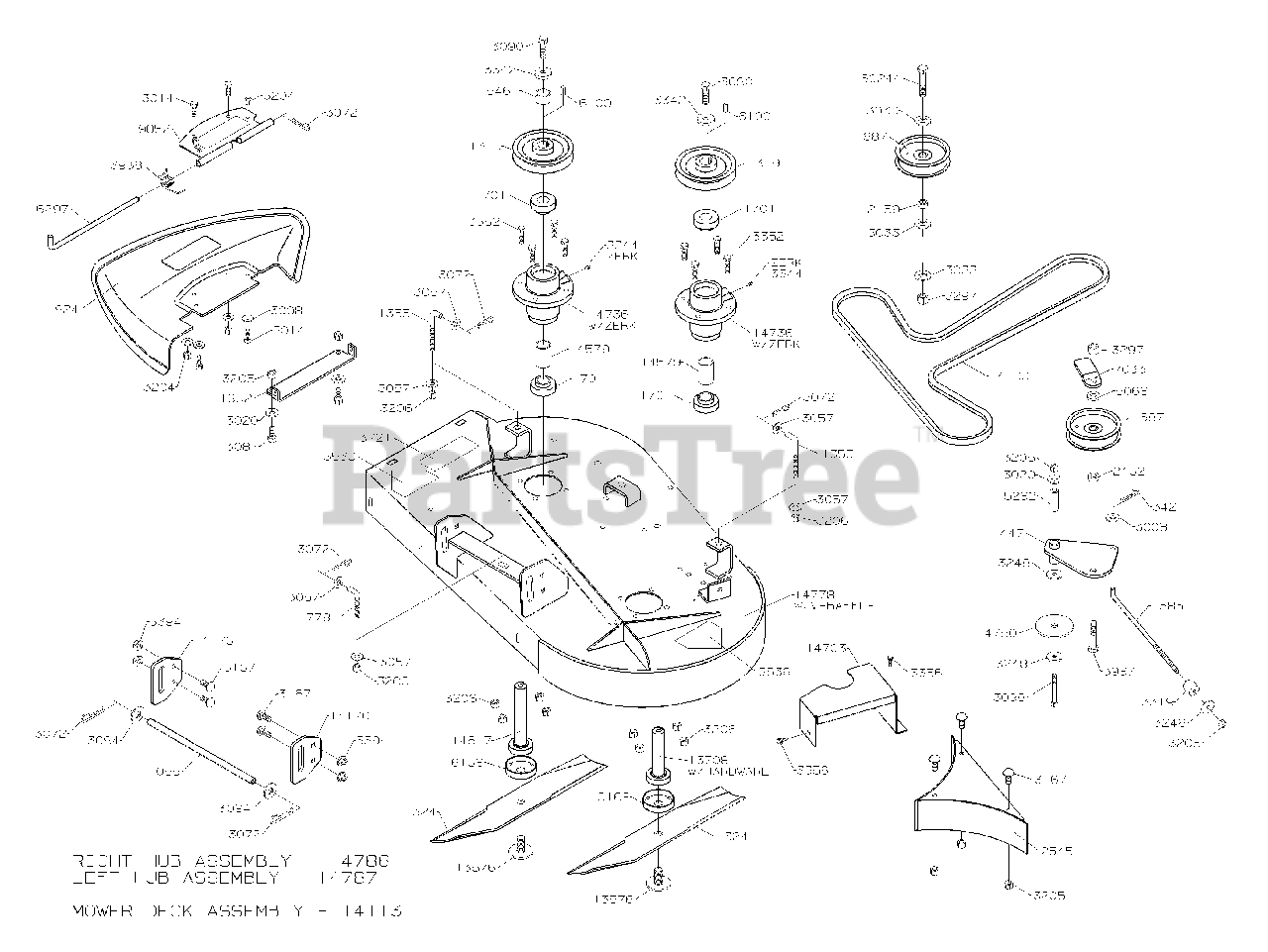

MOWER DECK Parts Diagram

  • Title

1059

1059

PLATED SHAFT - 13.0

$

$

Not available

1319

Dixon 1319

PULLEY 5` B-PULLEY

$

$

Not available

1324

1324

BLD 36` LO LIFT(REF124121)

$

$

Not available

1355

1355

L ROD 3-1/8"

$

$

Not available

1447

1447

IDLER WLDT - 36`

$

$

Not available

1685

1685

L-ROD

$

$

Not available

1687

1687

PULLEY IDLER

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1924

1924

PLASTIC DEFLECTOR 36

$

$

Not available

1992

1992

HINGE

$

$

Not available

2159

2159

TUBE .51 I.D. X .75 O.D.

$

$

Not available

2462

2462

BLADE ADAPTOR

$

$

Not available

2545

2545

BAFFLE WLDT

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3033

3033

1/2 FLATWASH NARROW

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3090

3090

1/2-20UNFX1 1/4HHBLT

$

$

Not available

3094

3094

1/2 STD FLAT WASHER

$

$

Not available

3098

3098

5/16-18X3 HHB GR5

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3297

Dixon 3297

R/B 3297 1/2-13UNC H JAML-NUT

$

$

Not available

3319

3319

IDLER SHOCK MOUNT

$

$

Not available

3342

3342

WASHER.525X1.375X.25

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3352

3352

HCS 3/8C X 1 1/4

$

$

Not available

3356

3356

SCREW, TAP & DR #12-14 X 3/4

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3536

3536

R/B 3536 DECK CAUTION DECAL

$

$

Not available

3721

3721

R/B 3721 CAUTION DECAL DEF/GC

$

$

Not available

3938

3938

DEFLECTOR SPRING

$

$

Not available

3987

Dixon 3987

1/2-13X2-1/2 HHB GR5

$

$

Not available

4750

4750

SHIPPING PLATE

$

$

Not available

5068

5068

HD PULLEY SPACER

$

$

Not available

5282

5282

BUSHING 1.90

$

$

Not available

5461

5461

SPACER HUB

$

$

Not available

6100

6100

OUTER SHAFT KEY

$

$

Not available

6168

6168

TRASH GUARD

$

$

Not available

6297

6297

DEFLECTOR PIN

$

$

Not available

7033

7033

BELT GUARD BLK

$

$

Not available

7781

7781

L-ROD - REAR

$

$

Not available

9852

9852

DEFLECTOR MT BRKT

$

$

Not available

13576

13576

BLADE BOLT

$

$

Not available

13708

13708

SHAFT 50 S

$

$

Not available

14113

14113

DECK ASM 36` ZEETER

$

$

Not available

14136

14136

V-BELT

$

$

Not available

14176

14176

42`DECK WEAR PLATE

$

$

Not available

14579

14579

SPACER

$

$

Not available

14617

14617

SHAFT

$

$

Not available

14703

14703

PULLEY GUARD

$

$

Not available

14736

14736

36" HUB W/ZERK

$

$

Not available

14778

14778

DECK ASM 36` ZEETER

$

$

Not available

14786

14786

HUB ASM RH

$

$

Not available

14787

14787

HUB ASM LH

$

$

Not available

60244

60244

CAPSCREW 1/2-13X2-3/4

$

$

Not available
