Zeeter 30 - Dixon 30" Zeeter Zero-Turn Mower (2004) TRANSAXLE Parts Diagram

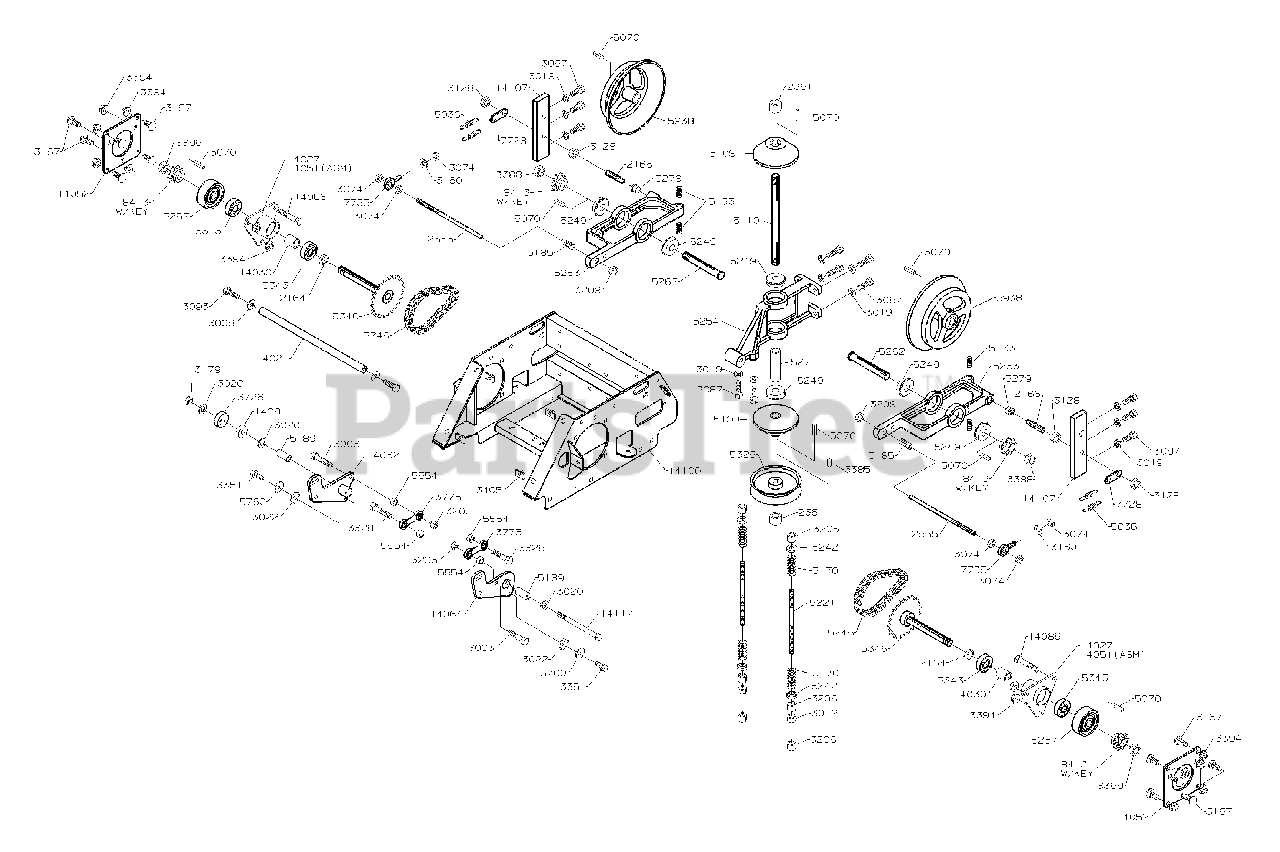

30" Zeeter Zero-Turn Mower

TRANSAXLE Parts Diagram

  • Title

2164

2164

SUPPORT SPRKT SPACER

$

$

Not available

2166

2166

PIVOT BOLT

$

$

Not available

2361

2361

5/8-11 HEX NUT W/NYLOCK

$

$

Not available

2555

2555

TORQUE ROD

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3008

3008

1/4IDX3/4OD FLT WSHR

$

$

Not available

3012

3012

3/8-16 UNC HEX NUT

$

$

Not available

3019

3019

5/16HELICAL L-WASHER

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3022

3022

WASHER 1/4 EXTLW STAR ZD

$

$

Not available

3074

3074

NUT 5/16-24 UNF HEX JAM

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3093

3093

5/16-18X1 HHB GR5

$

$

Not available

3128

3128

CHAIN

$

$

Not available

3160

3160

5/16STD FL WASH TYPA

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3179

Dixon 3179

3/8-16 HEX JAM NUT

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3209

3209

1/2-20 HEX JAM NUT

$

$

Not available

3328

3328

5/16-24X1-1/2HHB GR5

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3385

3385

$

$

Not available

3388

3388

R/B 3388 5/8 X 11UNC HEX NUT

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3405

Dixon 3405

CLIP NUT 5/16-18

$

$

Not available

3726

Dixon 3726

SPRING RETAINER

$

$

Not available

3775

Dixon 3775

DOUBLE BALL JOINT

$

$

Not available

5036

5036

PIVOT SPRING

$

$

Not available

5070

5070

KEY, 3/16 SQ X .88

$

$

Not available

5109

5109

CONE (1)

$

$

Not available

5110

5110

SHAFT - CONE FRAME

$

$

Not available

5133

5133

R/B 5133 CRADLE SPRING

$

$

Not available

5170

5170

POS SPR(YELLOW ZINC CHRO

$

$

Not available

5185

Dixon 5185

R/B 5185 ADJUSTER TORQUE ROD

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5221

Dixon 5221

POS. NEUTRAL ROD

$

$

Not available

5242

5242

PLUG W/HOLE - FLAT

$

$

Not available

5246

5246

R/B 5246 CHAIN RS40 30P

$

$

Not available

5249

5249

5/8 BEARING W/SNAP

$

$

Not available

5253

5253

CRADLE - MACHINED

$

$

Not available

5254

5254

CONE FRAME-MACHINED

$

$

Not available

5257

5257

BRAKE DRUM

$

$

Not available

5262

5262

CRADLE SHAFT

$

$

Not available

5271

5271

SPACER 3.115

$

$

Not available

5279

Dixon 5279

BUSHING, PIVOT

$2.49

$

Usually ships in 3-10 days

0

5326

5326

TRANSAXLE PULLEY

$

$

Not available

5343

5343

TRANSAXLE BRG .625" BORE

$

$

Not available

5346

5346

24T SPROCKET WLDT

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

5760

5760

LEVER STOP

$

$

Not available

5938

5938

DISCUP MACHINED

$

$

Not available

7728

7728

SPRING ANCHOR

$

$

Not available

7735

7735

ROD END - RH

$

$

Not available

8413

8413

R/B 8413 SPROCKET - 9T

$

$

Not available

14021

14021

TIE BAR

$

$

Not available

14027

14027

SUPPORT HUB-MACHINED

$

$

Not available

14030

14030

SPACER

$

$

Not available

14052

14052

SEC. DRIVE MT. PLATE

$

$

Not available

14062

14062

BELL CRANK WLDT-RH

$

$

Not available

14064

14064

BELL CRANK WLDT-LH

$

$

Not available

14086

14086

5/16X1-3/4ALL THD

$

$

Not available

14100

14100

TRANSAXLE HOUSING WLDT.

$

$

Not available

14107

14107

VERTICAL SUPPORT BAR

$

$

Not available

14117

14117

3/8-16X5.25 HHB GR5

$

$

Not available
