Zeeter 30 - Dixon 30" Zeeter Zero-Turn Mower (2003) CHASSIS Parts Diagram

30" Zeeter Zero-Turn Mower

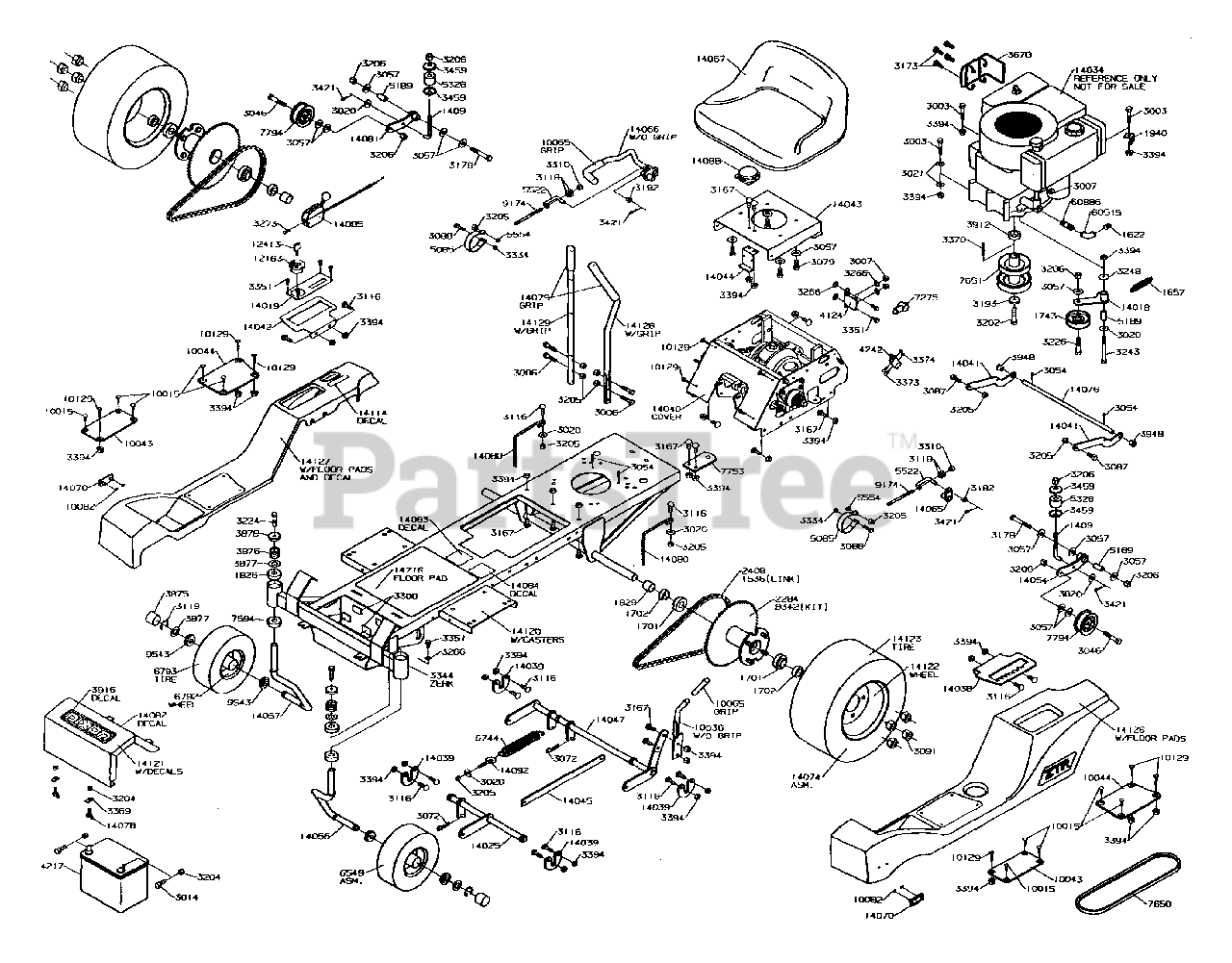

CHASSIS Parts Diagram

  • Title

1409

1409

L ROD 3-7/8

$

$

Not available

1536

1536

#40 RC CONN LINK

$

$

Not available

1622

1622

PLUG-NO CHARGE 3/8

$

$

Not available

1657

1657

SPRING

$

$

Not available

1701

1701

BEARING-ECC LOCK

$

$

Not available

1702

1702

LOCK COLLAR - ECC

$

$

Not available

1743

1743

1743-IDLER FLAT 3`

$

$

Not available

1826

1826

CASTER BUSHING

$

$

Not available

1829

1829

AXLE SPACER

$

$

Not available

1940

1940

SPRING ANCHOR

$

$

Not available

2284

2284

WHEEL HUB MACHINED

$

$

Not available

2408

2408

DR. CHAIN ASSY#40-92

$

$

Not available

3003

3003

5/16X18X1-1/2HHB GR5

$

$

Not available

3006

3006

5/16-18X1-1/4HHB GR5

$

$

Not available

3007

3007

1/4-20 UNC HEX NUT

$

$

Not available

3014

3014

1/4-20X/34 HHBLT GR 5

$

$

Not available

3020

3020

5/16STD FLAT WASHER.

$

$

Not available

3021

3021

5/16INT EX L-WASHER

$

$

Not available

3046

3046

3/8-16UNCX2 HH BLT

$

$

Not available

3054

3054

PIN, ROLL 3/16 DIA X 1

$

$

Not available

3057

3057

WASHER, 3/8 STD FLAT

$

$

Not available

3072

3072

$

$

Not available

3079

3079

3/8-16UNC X3/4HH BLT

$

$

Not available

3087

3087

5/16-18X3/4 HHB GR5

$

$

Not available

3088

3088

1/4-20X1 HHB GR5

$

$

Not available

3091

3091

1/2-20UNF HEX LUGNUT

$

$

Not available

3116

3116

RHSNB 5/16-18 X 1 GR 5 ZD

$

$

Not available

3118

3118

DISCSPRING .75ODX.38

$

$

Not available

3119

3119

RET.RING TRU ARC W75

$

$

Not available

3167

3167

RHSNB 5/16-18 X 3/4 GR 5 ZD.

$

$

Not available

3173

3173

SCREW, TAP #10-16 X 1/2

$

$

Not available

3178

3178

3/8-16X2 1/2 HHBG5

$

$

Not available

3182

Dixon 3182

FLIP-LOK BUSHING

$

$

Not available

3193

Dixon 3193

WASHER .408IDX1.37OD
(Superseded to 539115546)

$4.99

$

In Stock, only 3 left!

0

3202

3202

7/16-20 HHB GR5

$

$

Not available

3204

3204

1/4-20 HEX NUT W/NY

$

$

Not available

3205

3205

5/16-18 HX NUT W/NY.

$

$

Not available

3206

3206

3/8-16UNC HEX L-NUT

$

$

Not available

3224

3224

5/16-18X1 HHB G5W/NY

$

$

Not available

3226

3226

3/8-16X1-3/4 HHB GR5

$

$

Not available

3243

3243

5/16-18X3-1/4 HHB GR5

$

$

Not available

3248

3248

5/16IDX1/8THK WASHER

$

$

Not available

3266

3266

1/4" INT TOOTH L.W.

$

$

Not available

3273

3273

PAN HD 8-18 X 3/8 PHIL

$

$

Not available

3300

3300

FOAM PAD 1/8X1X1-1/2

$

$

Not available

3310

3310

5/16-18 THIN PROF NY

$

$

Not available

3334

3334

1/4-20 THIN PROF NY

$

$

Not available

3344

3344

ZERK, 3/16, DRIVE IN

$

$

Not available

3351

3351

1/4-20X1/2HWH FORM SCR H

$

$

Not available

3369

3369

1/4-20 U NUT

$

$

Not available

3370

3370

1/4" SQ KEY X 2.5

$

$

Not available

3373

3373

R/B 3373 #6-32UNCX1/2`RD HEAD

$

$

Not available

3374

3374

6-32 HE NUT W/NY

$

$

Not available

3394

3394

5/16-18 FLANGED L-NUT

$

$

Not available

3421

3421

COTTER HP .08DIAX1.19

$

$

Not available

3459

Dixon 3459

CUP WASHER

$

$

Not available

3678

3678

MUFFLER GUARD

$

$

Not available

3875

Dixon 3875

HUB COVER

$

$

Not available

3876

Dixon 3876

WASHER, PLAIN .632 X 1.38 X .046

$

$

Not available

3877

Dixon 3877

WASHER .78X1.5X.06

$

$

Not available

3878

3878

$

$

Not available

3912

3912

SPACER .50

$

$

Not available

3916

Dixon 3916

R/B 3916 DECAL - DIXON

$

$

Not available

3948

3948

FLIP-LOK BUSHING

$

$

Not available

4124

4124

BODY WIRING ASM

$

$

Not available

4217

4217

R/B 4217 BATTERY

$

$

Not available

4242

4242

DECK SWITCH

$

$

Not available

5085

5085

BRAKE BAND

$

$

Not available

5189

5189

BUSHING

$

$

Not available

5328

Dixon 5328

RUBBER SPRING-CRADLE

$

$

Not available

5522

5522

RH BRAKE LINK

$

$

Not available

5554

Dixon 5554

SPACER

$

$

Not available

6549

6549

TIRE ASSEMBLY

$

$

Not available

6744

6744

SPRING

$

$

Not available

6792

6792

FRONT WHEEL (SILVER)

$

$

Not available

6793

6793

FRONT TIRE WB

$

$

Not available

7275

7275

TERMINAL COVER-SM

$

$

Not available

7594

7594

THRUST BEARING SR810-57LS

$

$

Not available

7650

7650

T/A DRIVE BELT

$

$

Not available

7651

7651

PULLEY ENGINE - 30`

$

$

Not available

7753

7753

HITCH

$

$

Not available

7794

7794

IDLER PULLEY

$

$

Not available

8342

8342

R/B 8342 WHEEL HUB ASM 30 36

$

$

Not available

9174

9174

BRAKE ROD

$

$

Not available

9543

9543

CASTER WHEEL BEARING

$

$

Not available

10015

10015

1/4`NYLON TREE RIVET

$

$

Not available

10036

10036

HANDLE DECK LIFT

$

$

Not available

10043

10043

FRONT FOOT PAD 3000

$

$

Not available

10044

10044

REAR FLOOR PAD 3000

$

$

Not available

10065

10065

GRIP

$

$

Not available

10082

10082

NUT, 3/16 PUSH

$

$

Not available

10129

10129

5/16-18X1 FLANGED SCREW

$

$

Not available

12163

12163

IGNITION SWITCH

$

$

Not available

12413

12413

KEY MOLDED

$

$

Not available

14018

14018

ILDER ARM WLDT.

$

$

Not available

14019

14019

CONTROL PANEL

$

$

Not available

14025

14025

FRONT DECK SHAFT WLDT.

$

$

Not available

14034

14034

$

$

Not available

14038

14038

DECK LIFT QUADRANT

$

$

Not available

14039

14039

DECK HANGER

$

$

Not available

14040

14040

TRANSAXLE COVER

$

$

Not available

14041

14041

SEAT FRAME ARM

$

$

Not available

14042

14042

CONTROL PANEL MOUNT

$

$

Not available

14043

14043

SEAT PLATE

$

$

Not available

14044

14044

SEAT CLIP

$

$

Not available

14045

14045

R/B 14175 TIE BAR

$

$

Not available

14047

14047

REAR LIFT SHAFT WLDT.

$

$

Not available

14054

14054

TENSIONER ARM WLDT.-LH

$

$

Not available

14056

14056

CASTER AXLE WLDT-LH

$

$

Not available

14057

14057

CASTER AXLE WLDT-RH

$

$

Not available

14065

14065

BRAKE SHAFT END.LH MACH.

$

$

Not available

14066

14066

BRAKE SHAFT END RH MACH.

$

$

Not available

14067

14067

R/B 14022 SEAT

$

$

Not available

14070

14070

LOGO ZEETER

$

$

Not available

14074

14074

REAR WHEEL AND TIRE

$

$

Not available

14076

14076

SEAT FRAME PIN PLATED

$

$

Not available

14078

14078

1/4 X 20 X 1 WING BOLT

$

$

Not available

14079

14079

GRIP

$

$

Not available

14080

14080

BELT GUIDE

$

$

Not available

14081

14081

TENSIONER ARM WLDT.-RH

$

$

Not available

14082

14082

DECAL, CAUTION

$

$

Not available

14083

14083

DECAL, DRIVE LEVERS

$

$

Not available

14084

14084

DECAL, BLADE DRIVE

$

$

Not available

14085

14085

THROTTLE CABLE

$

$

Not available

14088

14088

SEAT SWITCH

$

$

Not available

14092

14092

EYE BOLT

$

$

Not available

14114

14114

DECAL, PARK BRAKE

$

$

Not available

14120

14120

$

$

Not available

14121

14121

BAT. COVER W/DECALS

$

$

Not available

14122

14122

R/B 10143 REAR WHEEL

$

$

Not available

14123

14123

REAR TIRE

$

$

Not available

14126

14126

LH FENDER ASM.

$

$

Not available

14127

14127

RH FENDER ASM

$

$

Not available

14128

14128

LH LEVER W/GRIP

$

$

Not available

14129

14129

RH LEVER W/GRIP

$

$

Not available

14716

14716

FLOOR PAD

$

$

Not available

60515

60515

ELBOW3/8 9OD SCH40 CAST

$

$

Not available

60886

60886

NIPPLE 3/8`X1-1/2 SCH40

$

$

Not available
