ZD3020 - Exmark 20" Z-Seed Slicer Seeder (SN: 411294212 - 413950473) (Rev A) (2022) Belt Drive Assembly Parts Diagram

20" Z-Seed Slicer Seeder

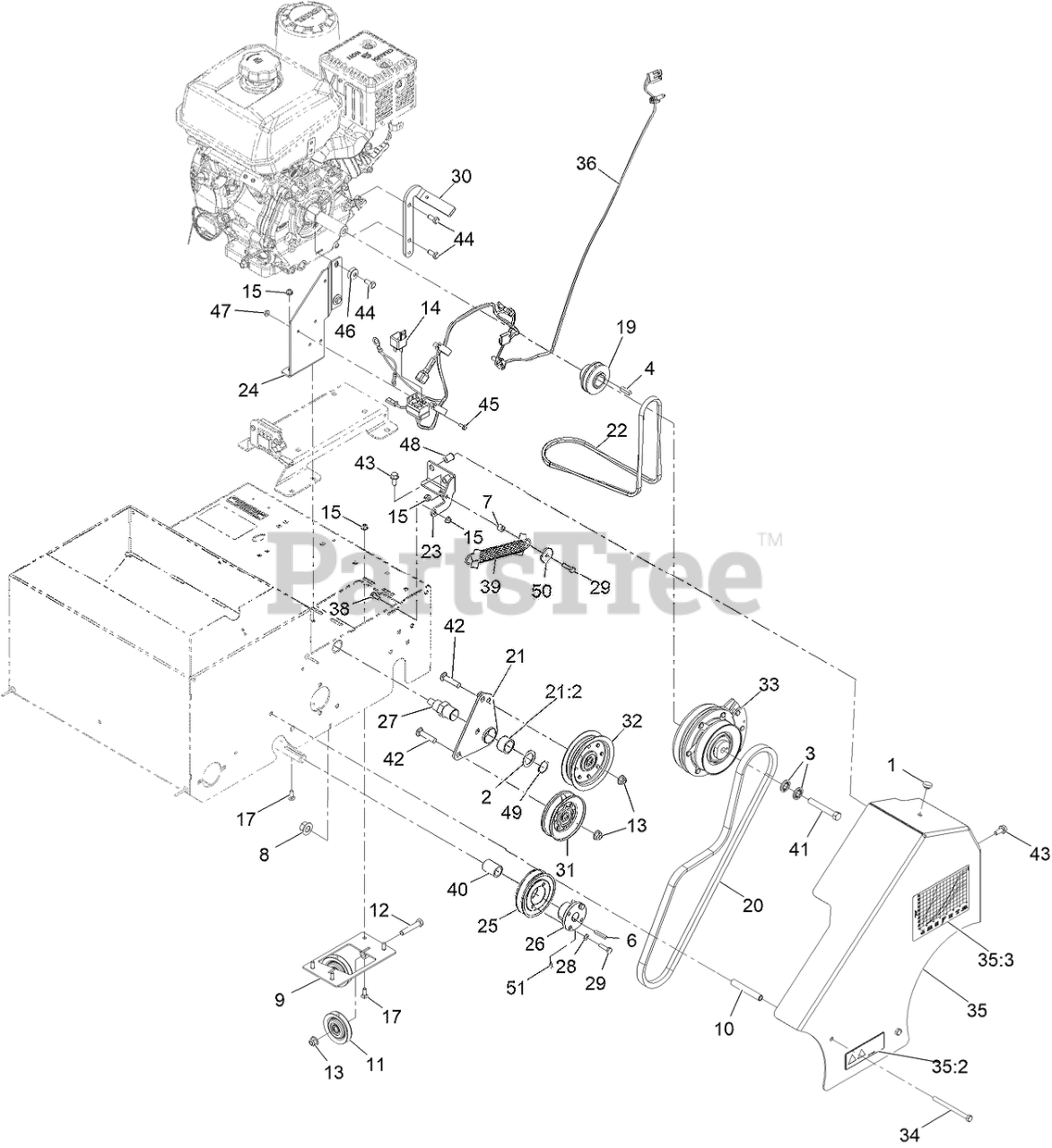

Belt Drive Assembly Parts Diagram

  • Title

1

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

2

Exmark 1-543436

WASHER-SPACER

$1.49

$

In Stock, Qty 9

0

3

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

4

Exmark 1-807259

KEY

$2.99

$

In Stock, only 1 left!

0

6

Exmark 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0

7

Exmark 98-4799

SPACER

$7.49

$

Usually ships in 3-6 days

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 126-0418-03

PULLEY-TENSION

$46.99

$

In Stock, only 1 left!

0

10

Exmark 104-0502

SPACER-KICKSTAND, LONG

$16.99

$

Usually ships in 3-6 days

0

11

Exmark 121-1965

PULLEY-IDLER

$43.99

$

In Stock, only 2 left!

0

12

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Exmark 105-4145

RELAY

$47.99

$

Usually ships in 3-6 days

0

15

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

17

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Exmark 116-9471

PULLEY-MULE DRIVE

$75.99

$

Usually ships in 3-6 days

0

20

Exmark 116-9518

BELT-SEEDER, CLUTCH
(Superseded to 116-9518-SL)

$47.99

$

In Stock, only 1 left!

0

21

Exmark 116-9519

IDLER ARM ASM

$75.99

$

Usually ships in 3-6 days

0

21:2

Exmark 116-9538

BUSHING

$15.99

$

Usually ships in 3-6 days

0

22

Exmark 116-9532

BELT-MULE DRIVE
(Superseded to 116-9532-SL)

$25.99

$

Usually ships in 3-6 days

0

23

Exmark 116-9533-03

BRACKET-SPRING

$17.99

$

Usually ships in 3-6 days

0

24

Exmark 135-2029-03

GUARD-BELT

$37.99

$

Usually ships in 3-6 days

0

25

Exmark 121-2019

SHEAVE-TAPER LOCK

$98.99

$

Usually ships in 3-6 days

0

26

Exmark 121-2022

BUSHING-TAPER LOCK

$35.99

$

Usually ships in 3-6 days

0

27

Exmark 116-9539

PIVOT-IDLER

$25.99

$

Usually ships in 3-6 days

0

28

Exmark 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 135-2030

STOP-CLUTCH

$21.99

$

Usually ships in 3-6 days

0

31

Exmark 116-9623

PULLEY-IDLER V

$36.99

$

Usually ships in 3-6 days

0

32

Exmark 116-9728

PULLEY-IDLER FLAT (4.06-I

$42.99

$

Usually ships in 3-6 days

0

33

Exmark 116-9852

CLUTCH-ELECTRIC

$638.99

$

Usually ships in 3-6 days

0

34

Exmark 322-19

SCREW-HH

$6.49

$

In Stock, only 1 left!

0

35

Exmark 142-4832

GUARD-BELT, W/DECALS

$231.99

$

Usually ships in 3-6 days

0

35:2

Exmark 93-7321

DECAL-DANGER

$26.99

$

Usually ships in 3-6 days

0

35:3

Exmark 116-8537

DECAL-GRAPH, SEED

$16.99

$

Usually ships in 3-6 days

0

36

Exmark 135-7761

HARNESS-WIRE

$101.99

$

Usually ships in 3-6 days

0

38

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Exmark 126-0091

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

40

Exmark 126-0108

SPACER

$9.49

$

Usually ships in 3-6 days

0

41

Exmark 3212-12

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$3.49

$

In Stock, only 4 left!

0

42

Exmark 3231-29

SCREW-CARR

$7.49

$

In Stock, Qty 10

0

43

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

44

Exmark 3235-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

45

Exmark 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

46

Exmark 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

47

Exmark 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 16

0

48

Exmark 32148-7

NUT-CLINCH

$3.99

$

Usually ships in 3-6 days

0

49

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

50

Exmark 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

51

Exmark 126-0284

SCREW-SET, HS

$31.99

$

Usually ships in 3-6 days

0
