ZD3020 - Exmark 20" Z-Seed Slicer Seeder (SN: 408644346 - 411294211) (Rev A) (2021) Transmission Assembly Parts Diagram

20" Z-Seed Slicer Seeder

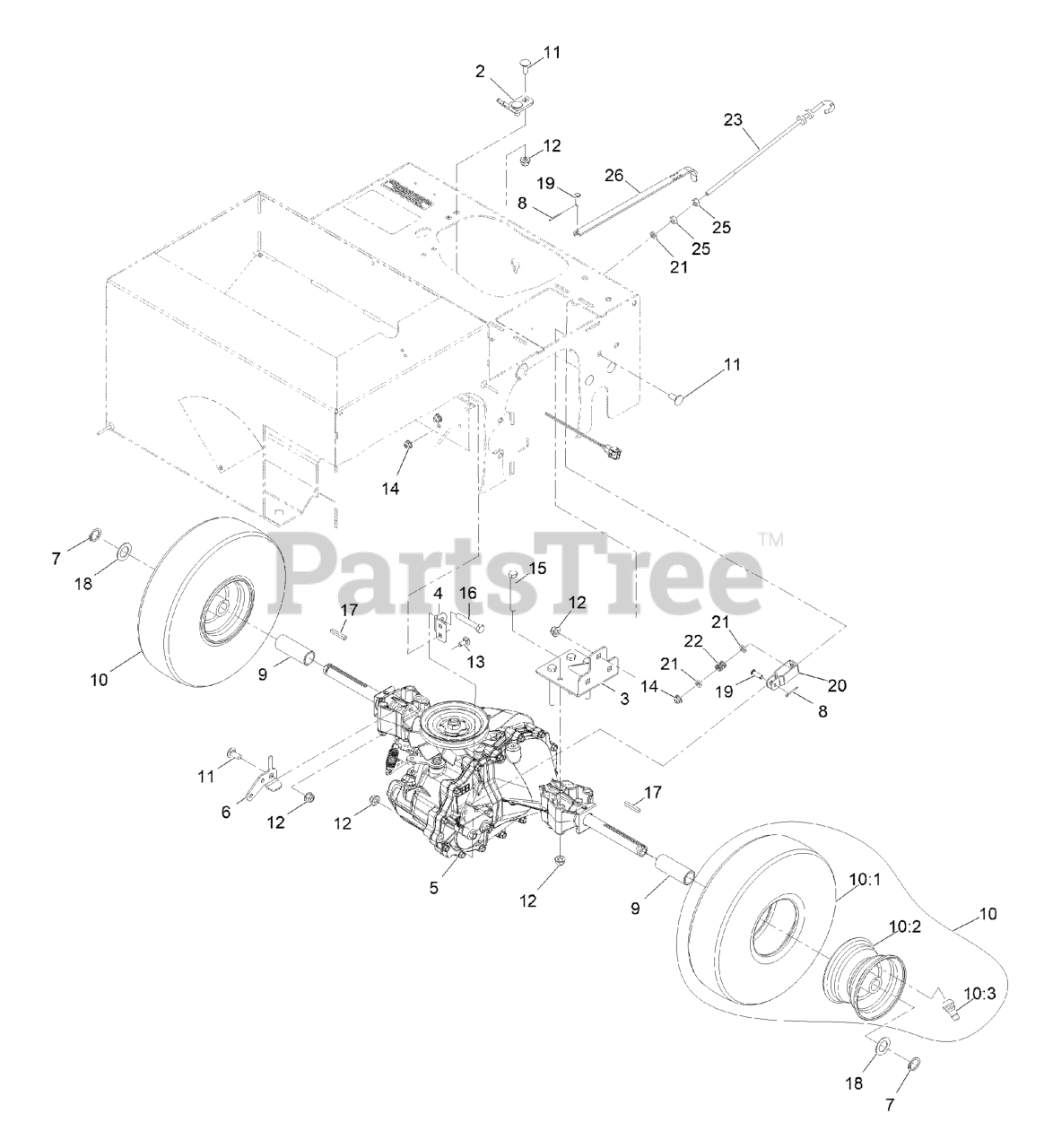

Transmission Assembly Parts Diagram

  • Title

2

Exmark 121-1897

BRACKET-CABLE

$20.99

$

Usually ships in 3-6 days

0

3

Exmark 121-1901-03

BRACKET-AXLE

$44.99

$

Usually ships in 3-6 days

0

4

Exmark 121-1904

BRACKET-TRANSAXLE, TORQUE

$18.99

$

Usually ships in 3-6 days

0

5

Exmark 121-1908

TRANSAXLE ASM

Note: Apply anti-seize compound to axle ends before installing tires.

$1010.99

$

Usually ships in 3-6 days

0

6

Exmark 121-1909

BRACKET-TRANSAXLE

$20.99

$

Usually ships in 3-6 days

0

7

Exmark 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

8

Exmark 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

9

Exmark 121-1988

SPACER

$17.99

$

Usually ships in 3-6 days

0

10

Exmark 142-4835

WHEEL ASM

$113.99

$

Usually ships in 3-6 days

0

10:1

Exmark 121-6081

TIRE

$79.99

$

Usually ships in 3-6 days

0

10:2

Exmark 142-4836

WHEEL-RIM

$54.99

$

Usually ships in 3-6 days

0

10:3

Exmark 5108

VALVE

$6.99

$

In Stock, Qty 14

0

11

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Exmark 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

14

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

15

Exmark 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

16

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0

18

Exmark 67-9410

WASHER

$4.49

$

Usually ships in 3-6 days

0

19

Exmark 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

20

Exmark 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

21

Exmark 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 63-4220

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

23

Exmark 121-2018

ROD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

25

Exmark 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

26

Exmark 121-2039

LEVER-BYPASS

$21.99

$

Usually ships in 3-6 days

0
