ZB4636 - Exmark 36" Z-Sweep Power Broom, Kohler CH270 (SN: 413950474 & Above) (Rev A) (2023) Traction Drive Assembly Parts Diagram

36" Z-Sweep Power Broom, Kohler CH270

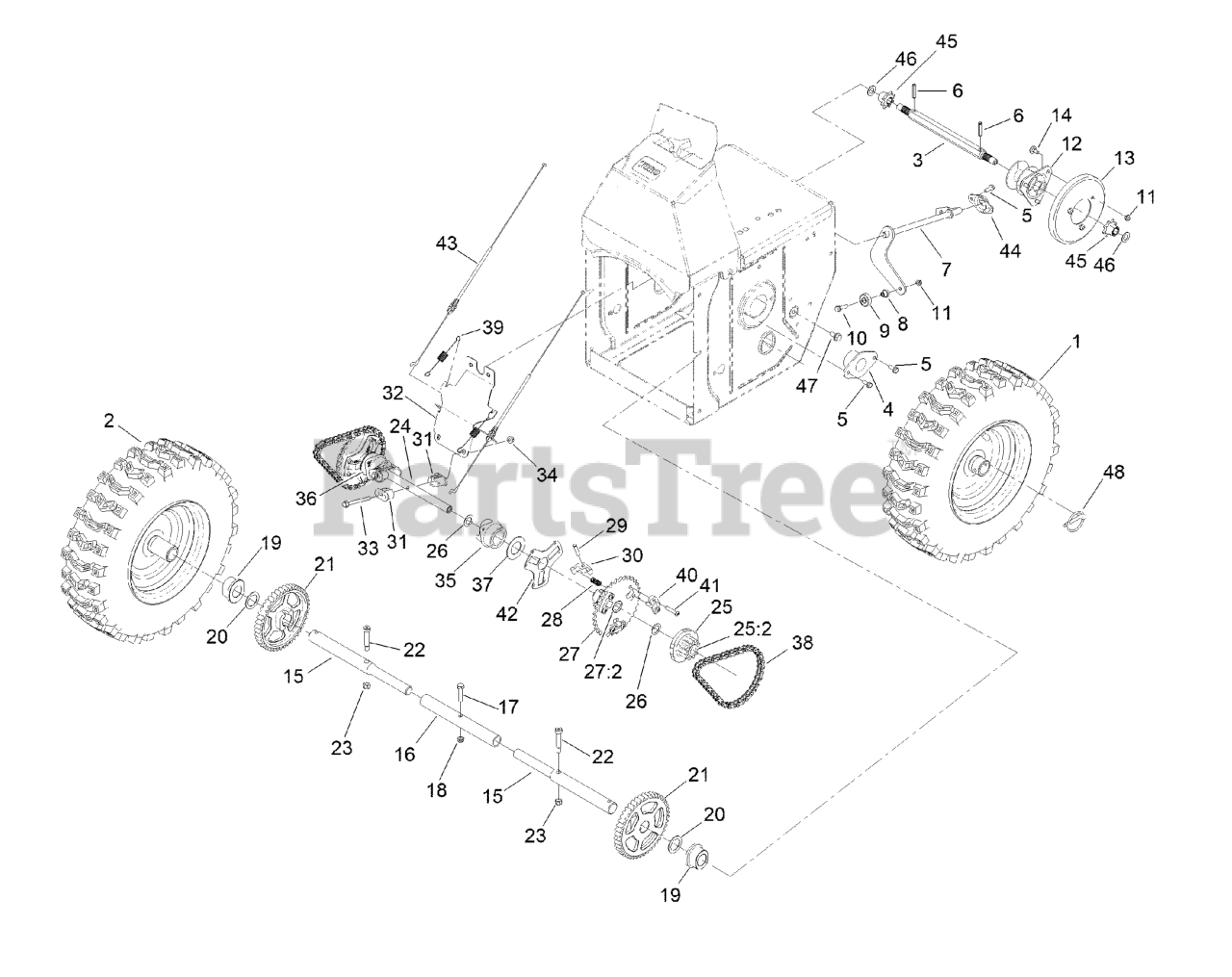

Traction Drive Assembly Parts Diagram

  • Title

1

Exmark 136-6668

LH WHEEL AND TIRE ASM

$96.99

$

Usually ships in 3-6 days

0

2

Exmark 136-6667

RH WHEEL AND TIRE ASM

$96.99

$

Usually ships in 3-6 days

0

3

Exmark 125-1135

SHAFT-HEX

$45.99

$

Usually ships in 3-6 days

0

4

Exmark 108-7319

RETAINER-BEARING

$30.99

$

Usually ships in 3-6 days

0

5

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

6

Exmark 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

7

Exmark 137-6162

SHIFT ROD

$19.99

$

Usually ships in 3-6 days

0

8

Exmark 119-7684

SPACER-PLATE, SHIFT

$1.99

$

Usually ships in 3-6 days

0

9

Exmark 121-6835

BEARING-BALL

$8.49

$

In Stock, Qty 12

0

10

Exmark 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

11

Exmark 137-3091

NUT-HEX

$1.49

$

In Stock, Qty 10

0

12

Exmark 119-7630

TRUNNION

$13.99

$

In Stock, Qty 11

0

13

Exmark 119-1567

WHEEL-FRICTION

$47.99

$

In Stock, Qty 12

0

14

Exmark 137-6246

SCREW-SHOULDER

$1.49

$

Usually ships in 3-6 days

0

15

Exmark 136-6640

AXLE

$38.99

$

Usually ships in 3-6 days

0

16

Exmark 106-7259

TUBE-AXLE

$92.99

$

Usually ships in 3-6 days

0

17

Exmark 137-3051

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

18

Exmark 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 136-6641

BUSHING-AXLE

$6.99

$

Usually ships in 3-6 days

0

20

Exmark 138-0725

WASHER-THRUST

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 136-6642

GEAR-AXLE

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 138-0720

BOLT-SHOULDER, HSH

$3.49

$

Usually ships in 3-6 days

0

23

Exmark 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 13

0

24

Exmark 107-8883

SHAFT-INTERMEDIATE

$61.99

$

Usually ships in 3-6 days

0

25

Exmark 107-8894

11T GEAR ASM

$61.99

$

Usually ships in 3-6 days

0

25:2

Exmark 108-2973

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 108-0015

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

27

Exmark 107-8895

32T SPROCKET ASM

$84.99

$

Usually ships in 3-6 days

0

27:2

Exmark 108-2973

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

28

Exmark 107-8885

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 5

0

29

Exmark 107-8899

PIN-DOWEL

$2.99

$

In Stock, only 4 left!

0

30

Exmark 107-8879

PAWL-CLUTCH

$7.99

$

Usually ships in 3-6 days

0

31

Exmark 107-8889

GUIDE-COLLAR

$5.49

$

Usually ships in 3-6 days

0

32

Exmark 136-6648-03

BRACE-SHIFT, COLLAR

$11.99

$

Usually ships in 3-6 days

0

33

Exmark 138-3653

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Exmark 119-4040

SCREW-SHOULDER

$0.99

$

In Stock, Qty 11

0

35

Exmark 107-8887

COLLAR-SHIFT, LH

$11.99

$

Usually ships in 3-6 days

0

36

Exmark 107-8888

COLLAR-SHIFT, RH

$11.99

$

Usually ships in 3-6 days

0

37

Exmark 107-8891

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

38

Exmark 108-0016

CHAIN-ROLLER

$60.99

$

Usually ships in 3-6 days

0

39

Exmark 107-8893

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

40

Exmark 107-8880

SUPPORT-PAWL

$6.49

$

Usually ships in 3-6 days

0

41

Exmark 137-3010

SCREW-BHCS

$1.49

$

Usually ships in 3-6 days

0

42

Exmark 136-7318

RETAINER-PAWL, PIN

$6.49

$

Usually ships in 3-6 days

0

43

Exmark 107-8896

CABLE-CLUTCH

$29.99

$

In Stock, only 2 left!

0

44

Exmark 136-6647-03

RETAINER-ROD, SHIFT

$3.99

$

Usually ships in 3-6 days

0

45

Exmark 125-1134

GEAR-PINION, 8 TOOTH

$6.99

$

Usually ships in 3-6 days

0

46

Exmark 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

47

Exmark 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

48

Exmark 138-3642

PIN-KLIK

$4.49

$

In Stock, Qty 8

0
