ZB4636 - Exmark 36" Z-Sweep Power Broom, Kohler CH270 (SN: 413950474 & Above) (Rev A) (2023) Control Panel Assembly Parts Diagram

36" Z-Sweep Power Broom, Kohler CH270

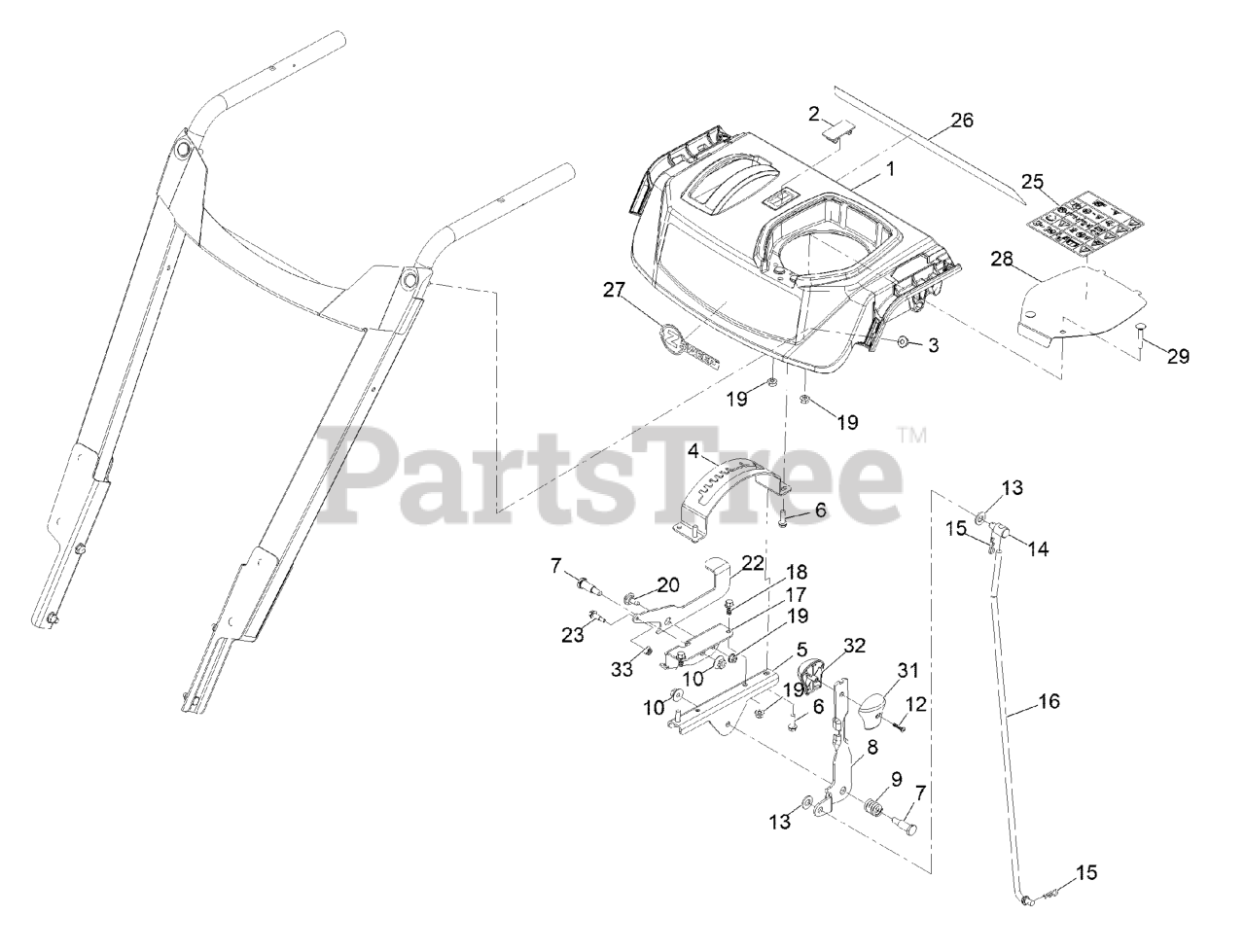

Control Panel Assembly Parts Diagram

  • Title
1

Exmark 144-1346

PANEL-CONTROL

$

$

Currently unavailable

2

Exmark 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

3

$1.49

$

In Stock, Qty 12

0

4

Exmark 137-6187-03

GATE-SHIFT

$8.49

$

Usually ships in 3-6 days

0

5

Exmark 137-6188-03

BRACKET-SHIFT

$6.99

$

Usually ships in 3-6 days

0

6

Exmark 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

7

Exmark 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 137-6231-03

SELECTOR-SPEED

$9.49

$

Usually ships in 3-6 days

0

9

Exmark 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

10

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

13

Exmark 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

14

Exmark 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 8

0

15

Exmark 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

16

Exmark 137-6225

ROD-SHIFT

$17.99

$

In Stock, only 3 left!

0

17

Exmark 139-9919-03

BRACKET-LEVER, BROOM ANGLE

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 137-3111

Screw-HHF 1/4-20 X 5/8

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 119-4040

SCREW-SHOULDER

$0.99

$

In Stock, Qty 11

0

20

Exmark 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

22

Exmark 139-9920-03

LEVER-BROOM ANGLE

$17.99

$

Usually ships in 3-6 days

0

23

Exmark 139-1709

SCREW-SHOULDER

$2.49

$

Usually ships in 3-6 days

0

25

Exmark 142-9546

PLATE-COVER, CONT PNL

$6.99

$

Usually ships in 0 days

0

26

Exmark 144-0316

BOLT-CARR

$

$

Currently unavailable

27

Exmark 142-5433

KNOB-SHIFT, LH

$

$

Currently unavailable

28

Exmark 139-9927-03

PLATE-COVER, CONT PNL

$25.99

$

Usually ships in 3-6 days

0

29

Exmark 137-3011

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

32

Exmark 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

33

$1.49

$

In Stock, Qty 10

0
