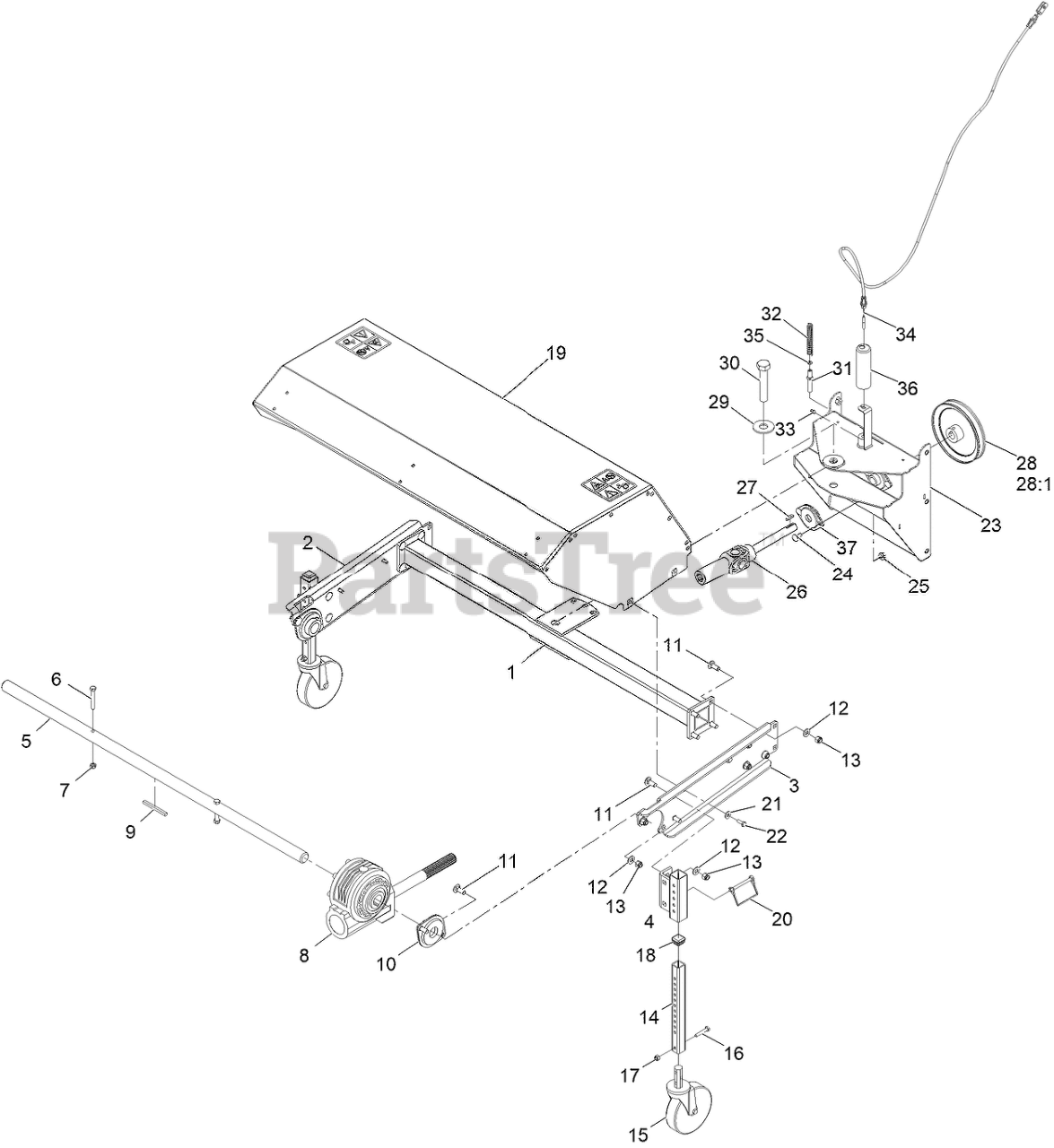

ZB4636 - Exmark 36" Z-Sweep Power Broom, Kohler CH270 (SN: 411294212 - 413950473) (Rev A) (2022) Hood and Frame Assembly Parts Diagram

36" Z-Sweep Power Broom, Kohler CH270

Hood and Frame Assembly Parts Diagram

  • Title

1

Exmark 144-0338

FRAME

$

$

Currently unavailable

2

Exmark 144-0335

ARM-RIGHT

$

$

Currently unavailable

3

Exmark 144-0336

ARM-LEFT

$

$

Currently unavailable

4

Exmark 144-0337

CASTER-BRACKET

$

$

Currently unavailable

5

Exmark 116-8114

SHAFT

$344.99

$

Usually ships in 3-6 days

0

6

Exmark 120-9738

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

8

Exmark 116-8115

GEARBOX-WORM

$2055.99

$

Usually ships in 3-6 days

0

9

Exmark 83-2800

KEY-STRAIGHT

$5.49

$

Usually ships in 3-6 days

0

10

Exmark 116-8116

BEARING-FLANGE

$163.99

$

Usually ships in 3-6 days

0

11

Exmark 139-2590

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

13

Exmark 137-3087

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

14

Exmark 116-8223

TUBE-SQUARE, HEIGHT ADJUS

$71.99

$

Usually ships in 3-6 days

0

15

Exmark 116-8117

CASTER-WHEEL

$106.99

$

In Stock, only 2 left!

0

16

Exmark 137-3050

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

18

Exmark 103-3202

CAP

$1.49

$

In Stock, only 1 left!

0

19

Exmark 144-0340

HOOD ASM, BLACK W/ DECALS

$

$

Currently unavailable

20

Exmark 116-8224

PIN-WIRE, LOCK

$20.99

$

In Stock, Qty 11

0

21

Exmark 120-9646

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

22

Exmark 137-3042

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Exmark 139-9942-03

FRAME-MOUNTING [BLACK]

$

$

Currently unavailable

24

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

26

Exmark 116-8104

SHAFT-DRIVE

$609.99

$

Usually ships in 3-6 days

0

27

Exmark 116-8105

KEY-ROUND END

$40.99

$

Usually ships in 3-6 days

0

28

Exmark 116-7930

PULLEY-IMPELLER

$149.99

$

Usually ships in 3-6 days

0

28:1

Exmark 3246-18

SETSCREW

$5.49

$

Usually ships in 3-6 days

0

29

Exmark 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0

30

Exmark 3216-7

SCREW-HH

$21.99

$

Usually ships in 3-6 days

0

31

Exmark 116-8106

PIN-SWING

$74.99

$

Usually ships in 3-6 days

0

32

Exmark 116-8107

SPRING-COMPRESSION

$55.99

$

Usually ships in 3-6 days

0

33

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

34

Exmark 116-7671

CABLE-ANGLE, BROOM

$50.99

$

Usually ships in 3-6 days

0

35

Exmark 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

36

Exmark 116-8108

CAP

$26.99

$

Usually ships in 3-6 days

0

37

Exmark 116-8103

BEARING-SHAFT

$98.99

$

Usually ships in 3-6 days

0
