ZB4636 - Exmark 36" Z-Sweep Power Broom, Kohler CH270 (SN: 411294212 - 413950473) (Rev A) (2022) Broom Head and Shield Assembly Parts Diagram

36" Z-Sweep Power Broom, Kohler CH270

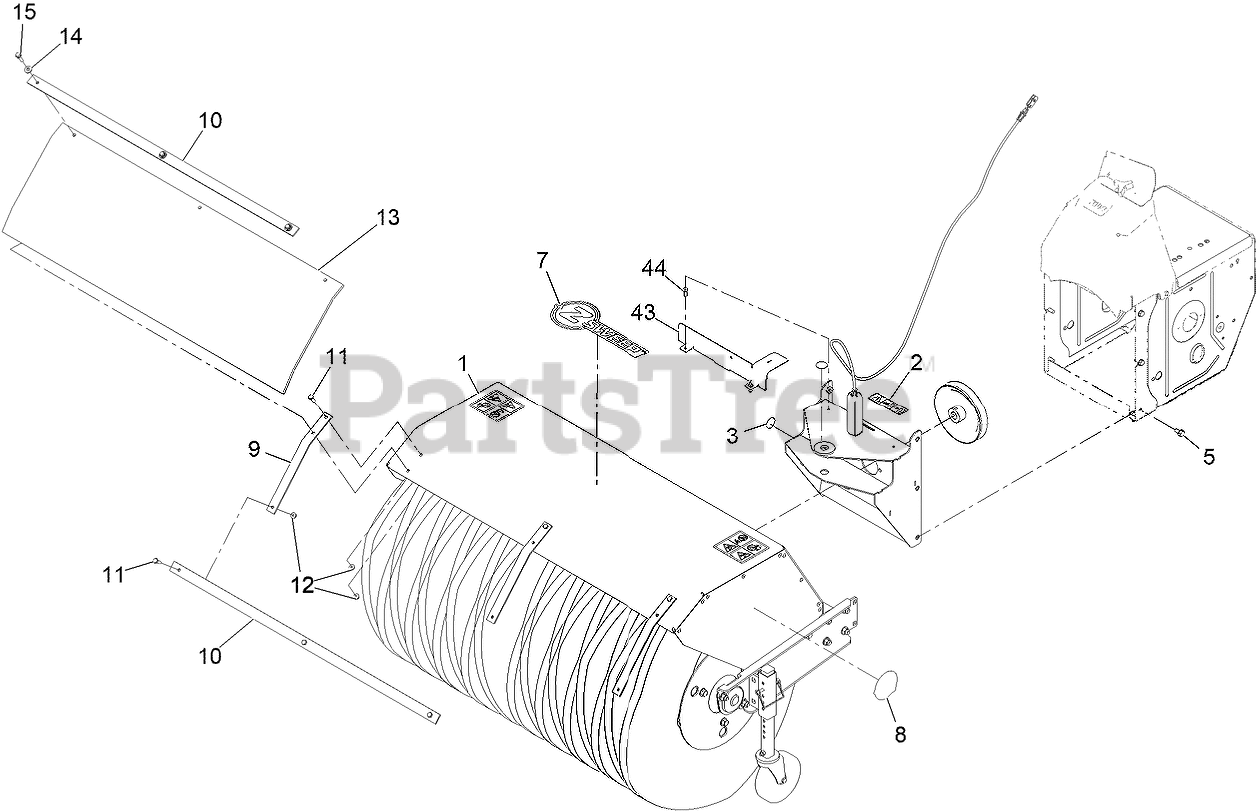

Broom Head and Shield Assembly Parts Diagram

  • Title

1

MB BROOM

Note: Not serviced separately

$

$

Not available

2

Exmark 112-9028

DECAL-COVER, MISSING

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 115-2903

DECAL-GREASE

$7.49

$

Usually ships in 3-6 days

0

5

Exmark 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

7

Exmark 142-5432

DECAL-Z-SWEEP LOGO

$

$

Currently unavailable

8

Exmark 142-3051

Decal-Z-Logo

$4.99

$

Usually ships in 3-6 days

0

9

Exmark 116-8869-03

STRAP-SUPPORT, DEFLECTOR

$19.99

$

Usually ships in 3-6 days

0

10

Exmark 116-8880-03

STRAP-SUPPORT, BROOM DEFL

$30.99

$

Usually ships in 3-6 days

0

11

Exmark 137-3042

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

13

Exmark 116-8864

DEFLECTOR-BROOM

$72.99

$

Usually ships in 3-6 days

0

14

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

15

Exmark 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

43

Exmark 139-9928-03

PLATE-COVER

$43.99

$

Usually ships in 3-6 days

0

44

Exmark 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
