ZA4830 - Exmark 30" Z-Aerate Stand-On Aerator, Kawasaki FS541V (SN: 413950474 & Above) (Rev A) (2023) Motion Control Assembly Parts Diagram

30" Z-Aerate Stand-On Aerator, Kawasaki FS541V

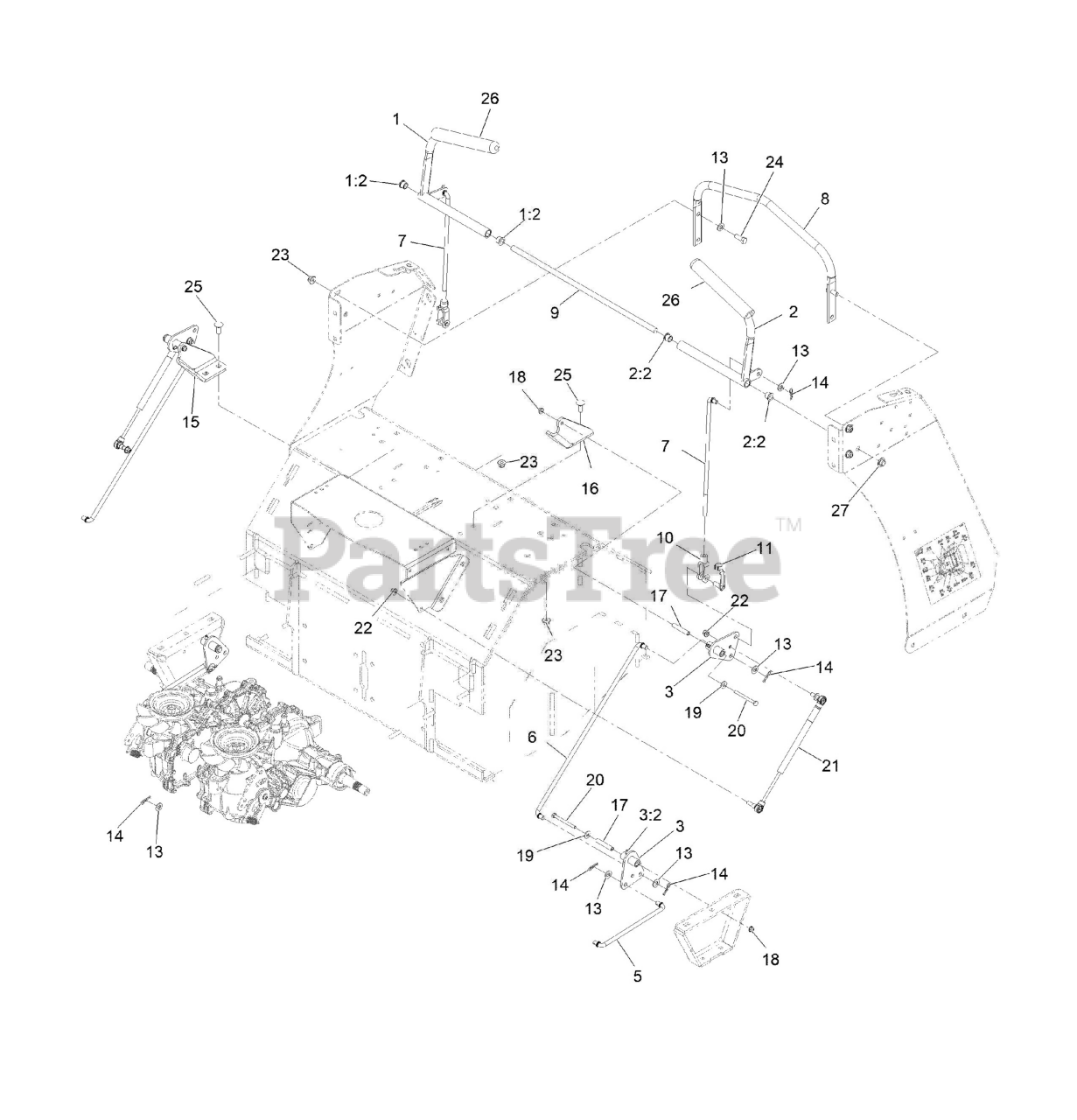

Motion Control Assembly Parts Diagram

  • Title
1

Exmark 116-6567

RH CONTROL HANDLE ASM

$188.99

$

In Stock, Qty 5

0

1:2

Exmark 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

2

Exmark 116-6566

LH CONTROL HANDLE ASM

$188.99

$

In Stock, only 1 left!

0

2:2

Exmark 116-4279

BEARING-FLANGE

$4.49

$

In Stock, Qty 20+

0

3

Exmark 126-0340

CRANK-BELL

$71.99

$

Usually ships in 3-6 days

0

3:2

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

5

Exmark 116-6722

LINK-CONTROL, HYDRO

$28.99

$

Usually ships in 3-6 days

0

6

Exmark 116-9298

LINK-CONTROL, BELL CRANK

$33.99

$

Usually ships in 3-6 days

0

7

Exmark 116-6730

LINK-CONTROL, BELL CRANK

$41.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6608-01

BAR-REFERENCE

$70.99

$

Usually ships in 3-6 days

0

9

Exmark 116-6607

SHAFT-PIVOT, CONTROL

$19.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 12

0

11

Exmark 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 6

0

13

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

15

Exmark 116-6576-03

BRACKET-PIVOT, RH

$32.99

$

Usually ships in 3-6 days

0

16

Exmark 116-6577-03

BRACKET-PIVOT, LH

$30.99

$

Usually ships in 3-6 days

0

17

$16.99

$

Usually ships in 3-6 days

0

18

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

20

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

21

Exmark 116-0027

DAMPER-CONTROL, MOTION
(Superseded to 142-8117)

$

$

Not available

22

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Exmark 103-8153

GRIP-LEVER, CONTROL

$14.99

$

In Stock, only 1 left!

0

27

Exmark 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0
