ZA4830 - Exmark 30" Z-Aerate Stand-On Aerator, Kawasaki FS541V (SN: 413950474 & Above) (Rev A) (2023) Main Frame Assembly Parts Diagram

30" Z-Aerate Stand-On Aerator, Kawasaki FS541V

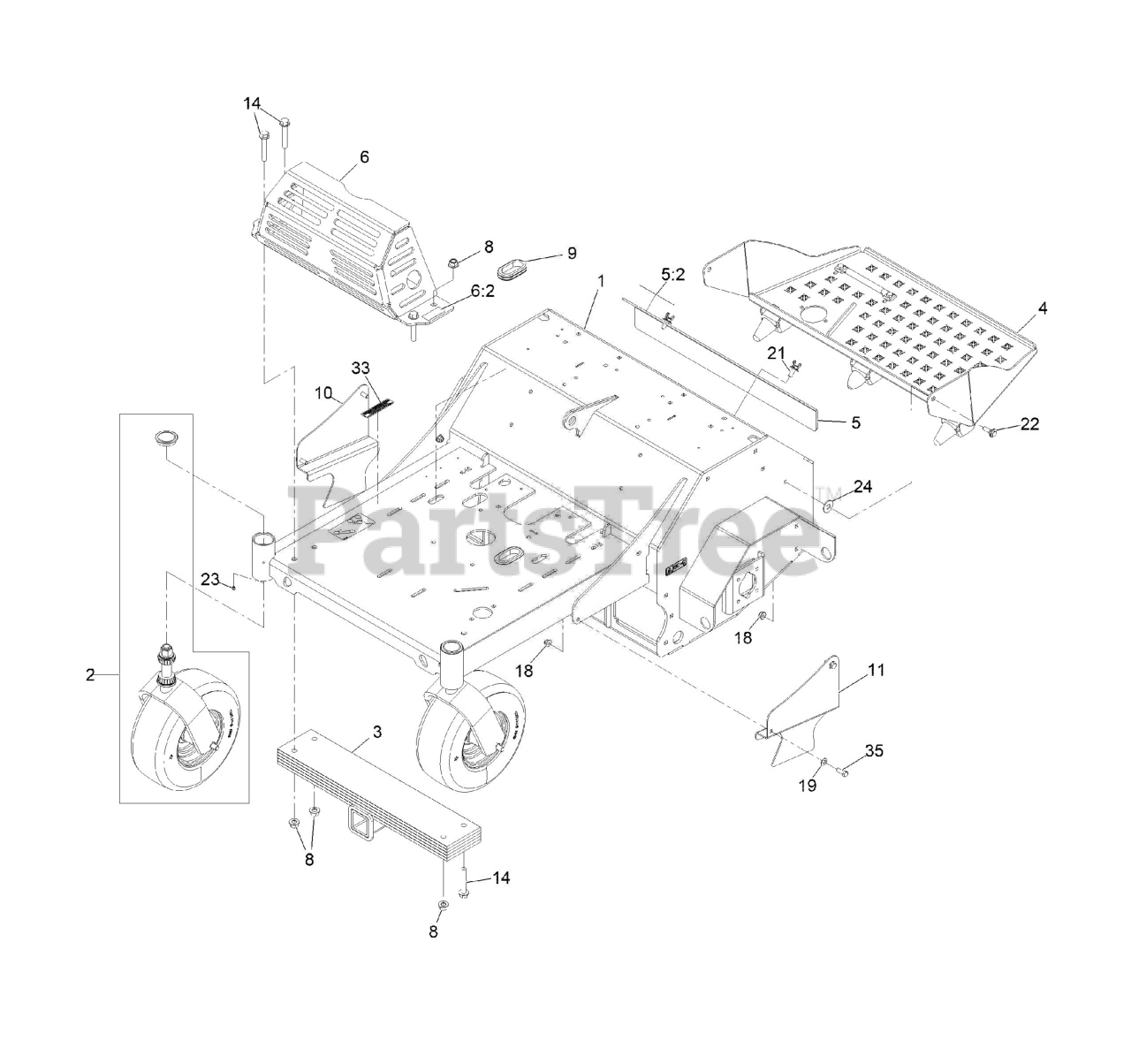

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-4378

Main Frame ASM

$2620.99

$

Usually ships in 0 days

0

2

Front Caster ASM W/Fork

Note: Not serviced separately

$

$

Not available

3

Exmark 116-6536-03

ASM-WEIGHT

$375.99

$

Usually ships in 3-6 days

0

4

Exmark 116-9135

PLATFORM W/ROCKER ASM

$533.99

$

Usually ships in 3-6 days

0

5

Exmark 142-4379

ACCESS COVER ASM

$56.99

$

Usually ships in 3-6 days

0

5:2

Exmark 121-6163

DECAL-OPERATION, TINE GRO

$8.49

$

Usually ships in 3-6 days

0

6

Exmark 116-8258

MUFFLER GUARD ASM

$314.99

$

Usually ships in 3-6 days

0

6:2

Exmark 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

9

Exmark 126-0015

GROMMET

$5.99

$

Usually ships in 3-6 days

0

10

Exmark 116-6612-01

GUARD-CHAIN, RH

$61.99

$

In Stock, only 2 left!

0

11

Exmark 116-6611-01

GUARD-CHAIN, LH

$61.99

$

In Stock, only 2 left!

0

14

Exmark 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

18

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 135-4629

Screw-Sems (3/8-16 X 1)

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

23

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

24

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

35

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0
