ZA4830 - Exmark 30" Z-Aerate Stand-On Aerator, Kawasaki FS541V (SN: 408644346 - 411294211) (Rev A) (2021) LH Transaxle Assembly Parts Diagram

30" Z-Aerate Stand-On Aerator, Kawasaki FS541V

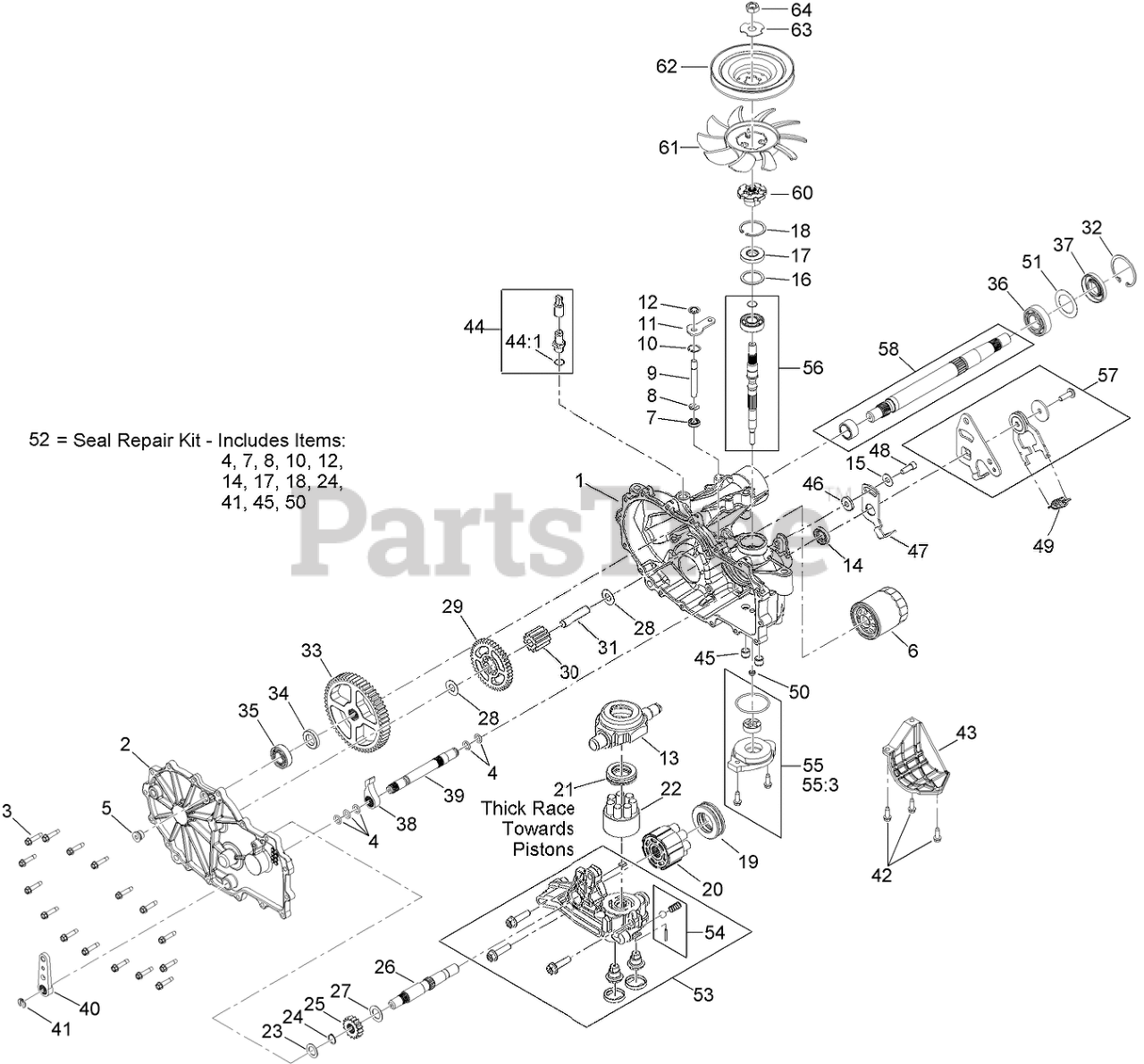

LH Transaxle Assembly Parts Diagram

  • Title

1

Exmark 114-8471

LH MAIN HOUSING KIT

$613.99

$

In Stock, only 1 left!

0

2

Exmark 114-8472

LH SIDE COVER KIT

$

$

Not available

3

Exmark 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 114-1678

O-RING

$5.99

$

Usually ships in 3-6 days

0

5

Exmark 135-1140

353-508
(Superseded to 353-508)

$8.49

$

In Stock, only 1 left!

0

6

Exmark 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

7

Exmark 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

8

Exmark 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

9

Exmark 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

10

Exmark 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

11

Exmark 106-8680

ARM-BYPASS

$19.99

$

Usually ships in 3-6 days

0

12

Exmark 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

13

Exmark 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

14

Exmark 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

15

Exmark 114-8491

WASHER

$5.49

$

Usually ships in 3-6 days

0

16

Exmark 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

17

Exmark 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

18

Exmark 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

19

Exmark 112-4154

BEARING-THRUST

$103.99

$

Usually ships in 3-6 days

0

20

Exmark 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

21

Exmark 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

22

Exmark 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

23

Exmark 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

24

Exmark 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

25

Exmark 126-0788

GEAR-16T

$92.99

$

Usually ships in 3-6 days

0

26

Exmark 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

27

Exmark 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

28

Exmark 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 125-0000

GEAR-43T

$62.99

$

Usually ships in 3-6 days

0

30

Exmark 120-7974

GEAR-11T

$75.99

$

Usually ships in 3-6 days

0

31

Exmark 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

32

Exmark 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

33

Exmark 114-1694

GEAR-54T

$139.99

$

In Stock, only 2 left!

0

34

Exmark 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

35

Exmark 135-1361

BEARING-BALL

$38.99

$

Usually ships in 3-6 days

0

36

Exmark 120-7976

BEARING-BALL
(Superseded to 130-8477)

$25.99

$

Usually ships in 3-6 days

0

37

Exmark 104-2144

SEAL

$49.99

$

In Stock, only 1 left!

0

38

Exmark 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

39

Exmark 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

40

Exmark 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

41

Exmark 131-0906

RING-RETAINING, EXT

$6.49

$

Usually ships in 3-6 days

0

42

Exmark 104-2120

SCREW

$7.99

$

In Stock, only 1 left!

0

43

Exmark 120-7981

GUARD-FILTER, RH

$34.99

$

Usually ships in 3-6 days

0

44

Exmark 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

44:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

45

Exmark 126-3251

USE 114-8455
(Superseded to 114-8455)

$13.99

$

Usually ships in 3-6 days

0

46

Exmark 114-8458

SPACER

$40.99

$

Usually ships in 3-6 days

0

47

Exmark 114-8459

ARM-NEUTRAL, RIGHT

$39.99

$

Usually ships in 3-6 days

0

48

Exmark 106-8682

SCREW-SH

$8.99

$

Usually ships in 3-6 days

0

49

Exmark 115-8307

SPRING-EXTENSION

$22.99

$

Usually ships in 3-6 days

0

50

Exmark 131-0908

Seal-Gerotor

$

$

Not available

51

Exmark 121-5745

SPACER

$10.99

$

Usually ships in 3-6 days

0

52

Exmark 109-3537

SEAL KIT
(Superseded to 140-8351)

$90.99

$

In Stock, only 1 left!

0

53

Exmark 120-7980

LH CENTER SECTION CHARGE

$508.99

$

Usually ships in 3-6 days

0

54

Exmark 114-8464

CHARGE RELIEF KIT

$22.99

$

Usually ships in 3-6 days

0

55

Exmark 114-8465

CHARGE KIT

$110.99

$

In Stock, only 1 left!

0

55:3

Exmark 109-3540

O RING-SEAL

$6.49

$

In Stock, Qty 6

0

56

Exmark 117-5361

INPUT SHAFT KIT
(Superseded to 121-3248)

$270.99

$

Usually ships in 3-6 days

0

57

Exmark 126-2291

CONTROL ARM KIT

$199.99

$

Usually ships in 3-6 days

0

58

Exmark 114-8470

AXLE SHAFT KIT

$265.99

$

Usually ships in 3-6 days

0

60

Exmark 116-9705

HUB-PULLEY

$8.49

$

In Stock, only 1 left!

0

61

Exmark 116-9706

FAN

$27.99

$

In Stock, only 1 left!

0

62

Exmark 116-9707

PULLEY

$28.99

$

In Stock, only 1 left!

0

63

Exmark 116-9708

WASHER-SLOTTED

$5.49

$

In Stock, only 1 left!

0

64

Exmark 116-9714

NUT-HJ

$5.49

$

In Stock, only 4 left!

0

99

Exmark 135-3604

BRAKE SHAFT SEAL KIT

Note: Not illustrated

$167.99

$

Usually ships in 3-6 days

0
