ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 413950474 - 999999999) (Rev A) (2023) Tine Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

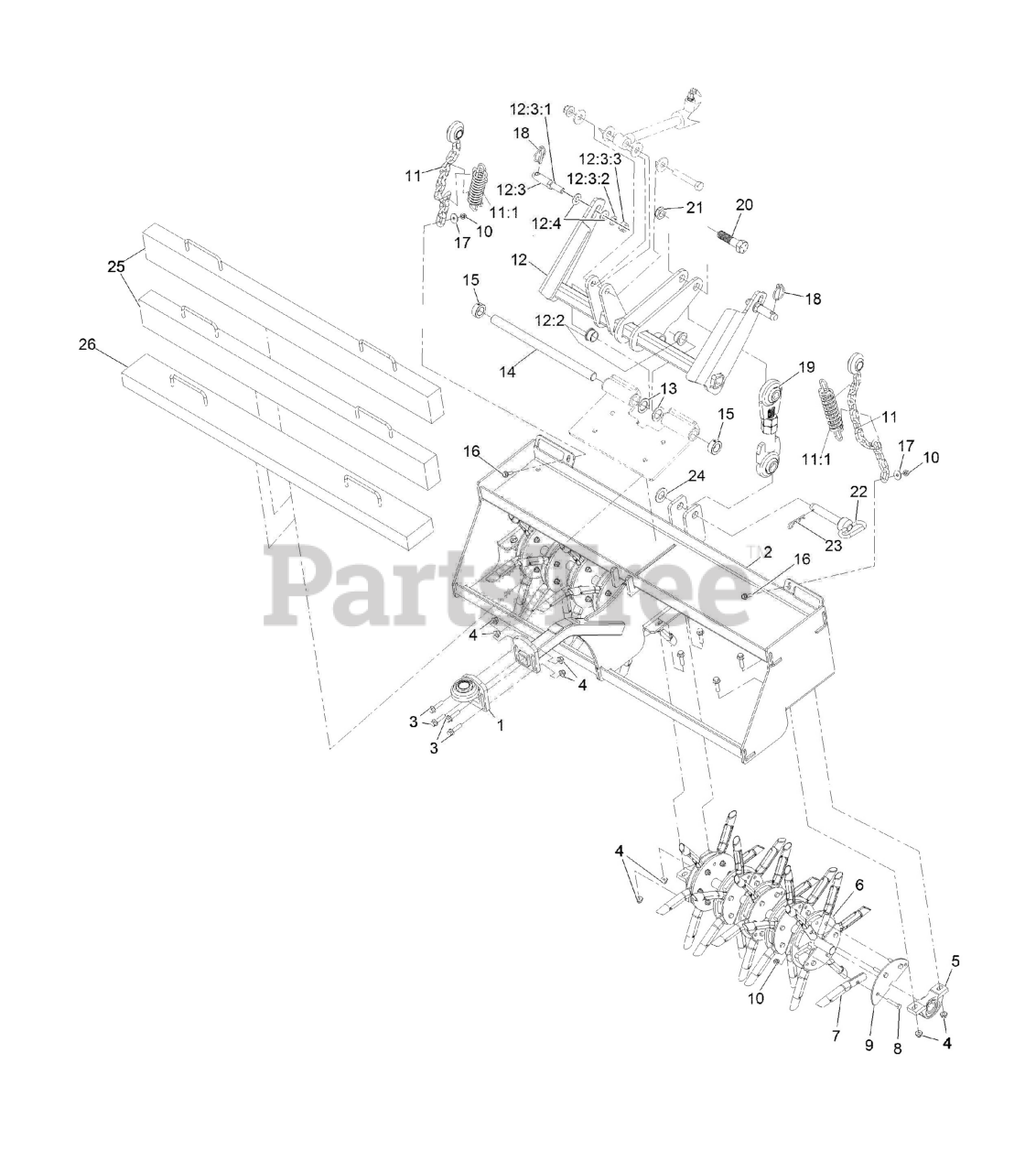

Tine Assembly Parts Diagram

  • Title
1

Exmark 135-9370

MOUNT-SWIVEL BRG,AER HEAD

$149.99

$

Usually ships in 3-6 days

0

2

Exmark 135-8785-05

HEAD-AERATION, 40""

$975.99

$

Usually ships in 3-6 days

0

3

Exmark 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 135-9379

PILLOW BLOCK BEARING

$28.99

$

Usually ships in 3-6 days

0

6

Exmark 135-9387-05

REEL-TINE

$220.99

$

Usually ships in 3-6 days

0

7

Exmark 126-2143

TINE-CORING (3/4 INCH)

$11.99

$

In Stock, Qty 20+

0

8

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

9

Exmark 135-9385-05

DISK, HALF, AE

$9.49

$

Usually ships in 3-6 days

0

10

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Exmark 135-7099

SWIVEL-CHAIN ASM

$300.99

$

Usually ships in 3-6 days

0

11:1

Exmark 135-9373

Z-PLUG DRAWBAR SPRING

$49.99

$

Usually ships in 3-6 days

0

12

Exmark 135-7285

ARM-LIFT, ASM

$441.99

$

Usually ships in 3-6 days

0

12:2

Exmark 256-132

BUSHING-FLANGE

$8.99

$

In Stock, Qty 5

0

12:3

Exmark 135-9368

7/8 X 4-1/2 LIFT PIN\N21

$9.49

$

Usually ships in 3-6 days

0

12:3:1

Exmark 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

12:3:2

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12:3:3

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12:4

Exmark 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

13

Exmark 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

14

Exmark 142-0261

PIVOT-LIFT ARM

$17.99

$

Usually ships in 3-6 days

0

15

$7.99

$

Usually ships in 3-6 days

0

16

Exmark 3234-17

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 115-7109

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

19

Exmark 135-9420

BALL SWIVEL, ADUSTABLE LI

$227.99

$

Usually ships in 3-6 days

0

20

Exmark 142-0611

7/8-9 X 3-1/4 GR8 HEX CAP

$9.49

$

Usually ships in 3-6 days

0

21

Exmark 138-7087

NUT-LOCK, NI

$8.99

$

Usually ships in 3-6 days

0

22

Exmark 135-9421

7/8 X 4 HITCH PIN RED HAN

$15.99

$

Usually ships in 3-6 days

0

23

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 135-9604

112LBS WEIGHT\N45.25

$373.99

$

Usually ships in 3-6 days

0

26

Exmark 135-6953

WEIGHT-HORIZ, ZPLUG

$401.99

$

Usually ships in 3-6 days

0
