ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 413950474 - 999999999) (Rev A) (2023) Control Tower Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

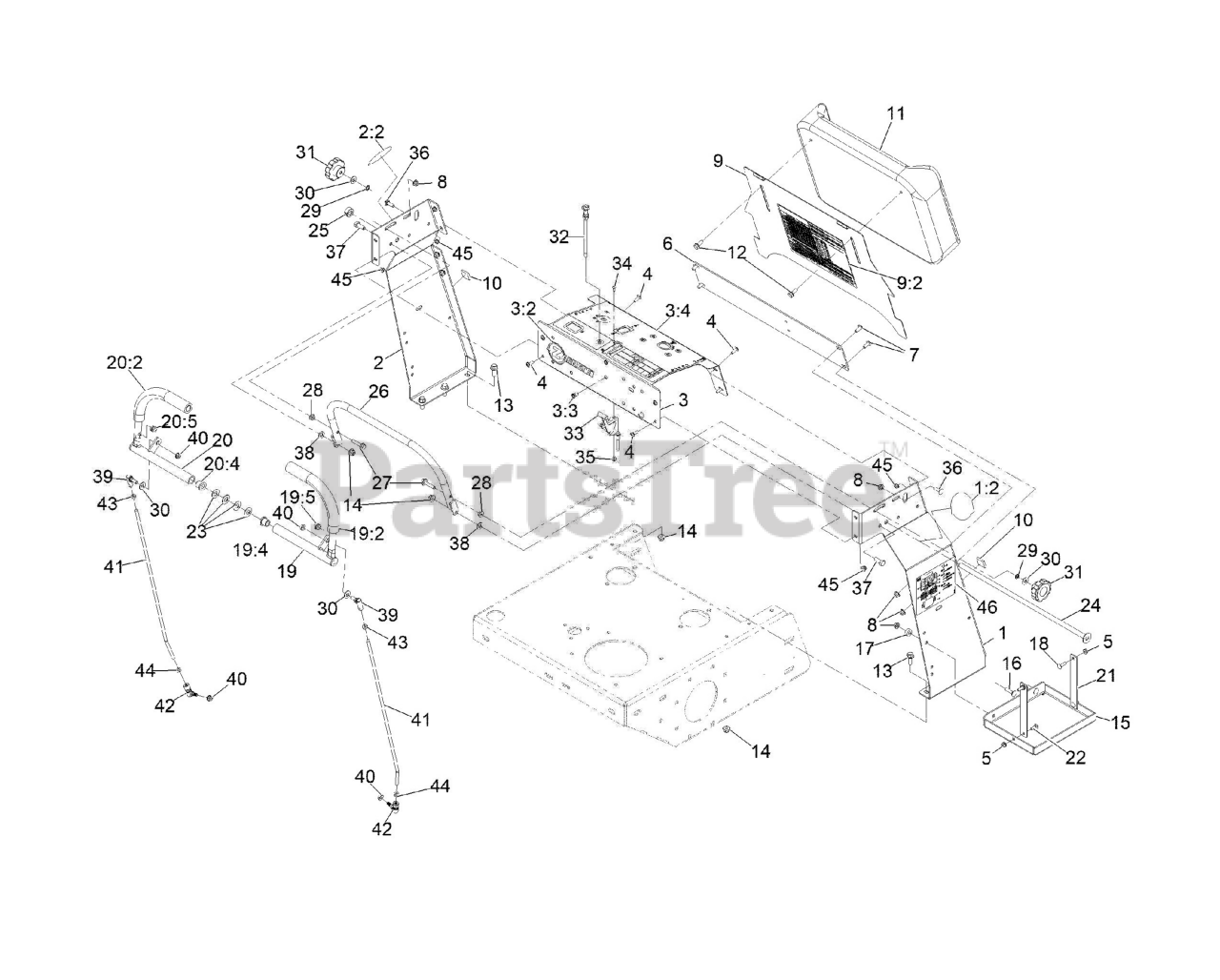

Control Tower Assembly Parts Diagram

  • Title

1

Exmark 142-3161

PANEL-TOWER, LH

$168.99

$

Usually ships in 3-6 days

0

1:2

Exmark 142-3051

Decal-Z-Logo

$4.99

$

Usually ships in 3-6 days

0

2

Exmark 142-3160

PANEL-TOWER, RH

$168.99

$

Usually ships in 3-6 days

0

2:2

Exmark 142-3051

Decal-Z-Logo

$4.99

$

Usually ships in 3-6 days

0

3

Exmark 142-3159

PANEL-CONTROL

$150.99

$

Usually ships in 3-6 days

0

3:2

Exmark 142-3052

DECAL-Z-AERATE LOGO

$4.99

$

Usually ships in 3-6 days

0

3:3

Exmark 138-2760

Nut-Clinch, Hex

$2.49

$

Usually ships in 3-6 days

0

3:4

Exmark 142-4317

Decal-Control Panel

$37.99

$

Usually ships in 3-6 days

0

4

Exmark 135-7080

Screw-Hsbhf

$3.49

$

In Stock, Qty 8

0

5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Exmark 142-0304-05

PLATE-FACE

$24.99

$

Usually ships in 3-6 days

0

7

Exmark 100-5487

SCREW-PTH

$1.99

$

In Stock, Qty 20+

0

8

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Exmark 135-7599

PLATE-PAD,KNEE

$93.99

$

Usually ships in 3-6 days

0

9:2

Exmark 142-4373

Decal-Spray Chart

$13.99

$

Usually ships in 3-6 days

0

10

Exmark 93-9155

Velcro

$1.99

$

Usually ships in 3-6 days

0

11

Exmark 142-3165

PAD-KNEE, Z-LOGO

$104.99

$

In Stock, only 1 left!

0

12

Exmark 126-2712

SCREW-HHF

$5.49

$

In Stock, Qty 8

0

13

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

14

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 135-9345-05

TRAY-BATTERY

$31.99

$

Usually ships in 3-6 days

0

16

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

17

Exmark 121-1759

SPACER

$2.99

$

In Stock, only 1 left!

0

18

Exmark 3229-2

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

19

Exmark 135-7155

HANDLE-CONTROL, LH ASM

$106.99

$

Usually ships in 3-6 days

0

19:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

19:4

Exmark 143-0889

Bushing,Flange,0.50 ID,0.75 OD

$2.49

$

Usually ships in 3-6 days

0

19:5

Exmark 135-5988

Grommet-Rubber

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 135-7156

HANDLE-CONTROL, RH ASM

$150.99

$

Usually ships in 3-6 days

0

20:2

Exmark 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

20:4

Exmark 143-0889

Bushing,Flange,0.50 ID,0.75 OD

$2.49

$

Usually ships in 3-6 days

0

20:5

Exmark 135-5988

Grommet-Rubber

$1.99

$

Usually ships in 3-6 days

0

21

Exmark 142-3158-05

Strap-Battery

$9.49

$

Usually ships in 3-6 days

0

22

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

23

Exmark 110-6894

WASHER-PIVOT

$1.49

$

Usually ships in 3-6 days

0

24

Exmark 135-5430

Rod-Pivot, Joy Stick

$28.99

$

Usually ships in 3-6 days

0

25

Exmark 135-6192

Collar

$33.99

$

Usually ships in 3-6 days

0

26

Exmark 135-5427-01

Bar-Speed [red]

$68.99

$

Usually ships in 3-6 days

0

27

Exmark 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

28

Exmark 32128-26

Nut-Flange

$6.49

$

Usually ships in 3-6 days

0

29

Exmark 135-6286

Washer-Lock

$0.99

$

Usually ships in 3-6 days

0

30

Exmark HDW14535

FLAT WASHER, 5/16 NOM,ST

$1.49

$

Usually ships in 3-6 days

0

31

Exmark 135-5689

KNOB-FLUTED

$10.99

$

In Stock, only 2 left!

0

32

Exmark 135-5707

CABLE-CHOKE

$49.99

$

In Stock, only 1 left!

0

33

Exmark 135-5260

CABLE-THROTTLE

$49.99

$

In Stock, only 1 left!

0

34

Exmark 135-6374

Screw-HSBH

$0.99

$

Usually ships in 3-6 days

0

35

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

36

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

37

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

38

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

39

Exmark 135-5257

Balljoint-SS

$17.99

$

Usually ships in 3-6 days

0

40

Exmark 107-0380

Nut-HHF

$5.49

$

Usually ships in 3-6 days

0

41

Exmark 135-8624

ROD-CONTROL

$42.99

$

Usually ships in 3-6 days

0

42

Exmark 135-5718

Ball Joint-Quick Disconnect, SS

$14.99

$

Usually ships in 3-6 days

0

43

Exmark 135-6512

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

44

Exmark 107-0282

Nut-Hex

$0.99

$

Usually ships in 3-6 days

0

45

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

46

Exmark 142-3908

Decal-Service Aid

$9.49

$

Usually ships in 3-6 days

0
