ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 411294212 - 413950473) (Rev A) (2022) Hopper Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

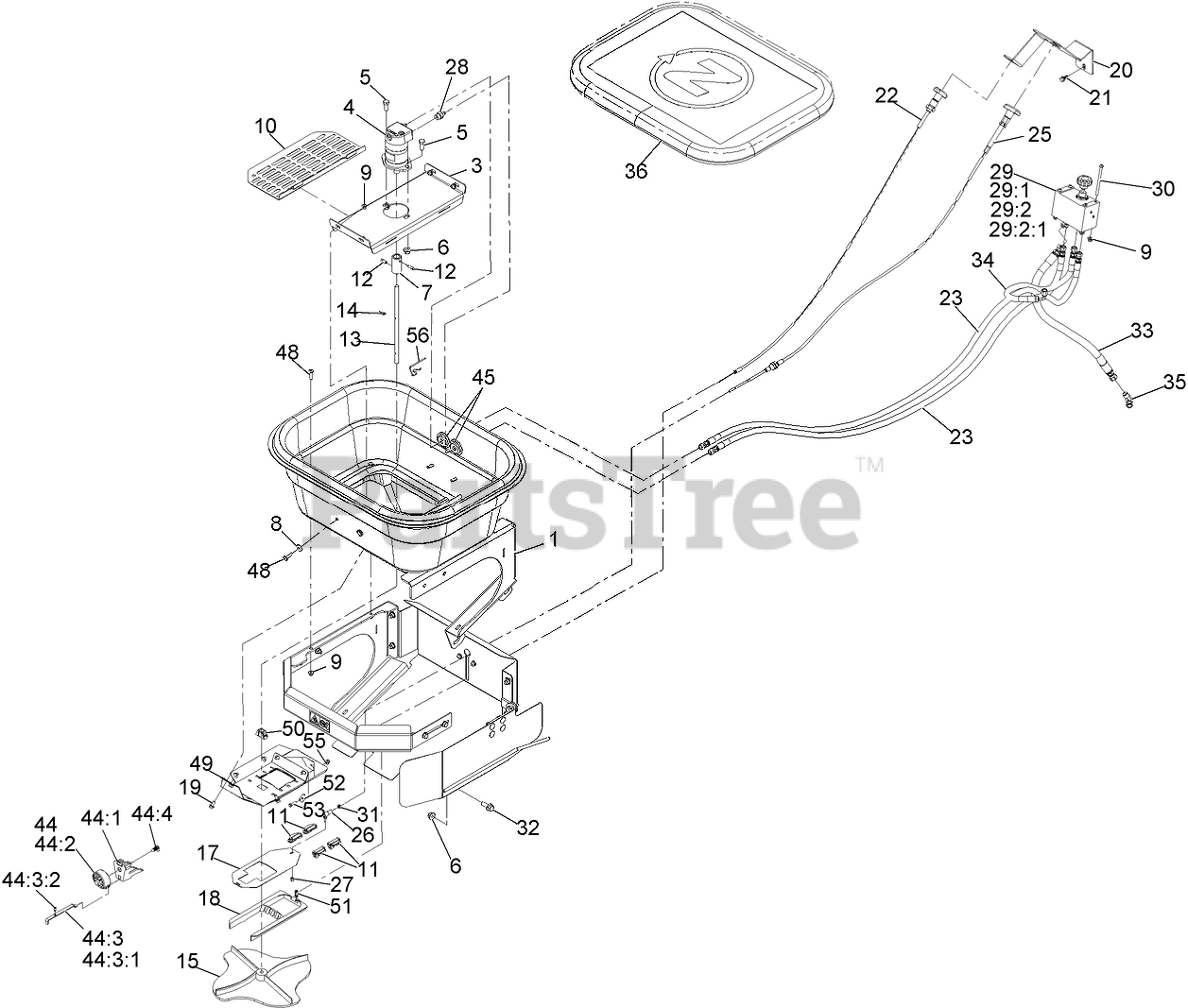

Hopper Assembly Parts Diagram

  • Title

1

Hopper ASM

Note: Not serviced separately

$

$

Not available

3

Exmark 142-1987

PAN, HOPPER, 120

$55.99

$

Usually ships in 3-6 days

0

4

Exmark 135-5243

MOTOR-HYDRAULIC, SPREADER

$527.99

$

Usually ships in 3-6 days

0

5

Exmark 126-0520

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

6

Exmark 135-6110

Nut-Hex Flange

$1.99

$

In Stock, Qty 5

0

7

Exmark 135-5937

COUPLER-SS

$28.99

$

In Stock, only 2 left!

0

8

Exmark 135-6341

Washer

$1.99

$

Usually ships in 3-6 days

0

9

Exmark 135-6108

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

10

Exmark 142-1995

SCREEN, HOPPER, 120

$26.99

$

Usually ships in 3-6 days

0

11

Exmark 142-3316

GUIDE-RATE, GATE

$1.99

$

In Stock, Qty 7

0

12

Exmark 3241-7

Screw-SQH

$3.99

$

In Stock, only 2 left!

0

13

Exmark 142-3726

SHAFT-HOPPER, 120

$26.99

$

In Stock, only 1 left!

0

14

Exmark 142-3666

WIRE-AGITATOR

$3.99

$

In Stock, only 1 left!

0

15

Exmark 142-3506

Spinner-Spreader

$41.99

$

In Stock, only 2 left!

0

17

Exmark 142-5905

Slide-Door, Hopper

$17.99

$

Usually ships in 3-6 days

0

18

Exmark 142-3406

DIFFUSER

$7.99

$

Usually ships in 3-6 days

0

19

Exmark 135-6280

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

20

Exmark 142-3105-05

Bracket-Hopper Cable

$28.99

$

Usually ships in 3-6 days

0

21

Exmark 137-3111

Screw-HHF 1/4-20 X 5/8

$1.49

$

Usually ships in 3-6 days

0

22

Exmark 135-5931

CABLE-PUSH/PULL

$57.99

$

In Stock, only 2 left!

0

23

Exmark 142-6410

HOSE ASM-HYD HP

$92.99

$

Usually ships in 3-6 days

0

25

Exmark 135-5935

CABLE-PUSH/PULL

$108.99

$

Usually ships in 3-6 days

0

26

Exmark 135-5682

BALL JOINT-SS

$49.99

$

Usually ships in 3-6 days

0

27

Exmark HDW05856

Nut,NYL Lock,#10-32,ST/ST 18-8

$1.49

$

In Stock, Qty 6

0

28

Exmark 01-201-0780

DISCONTINUED

$7.49

$

Usually ships in 3-6 days

0

29

Exmark 142-4324

Manifold-Flow Control, Hopper
(Superseded to 142-8082)

$355.99

$

In Stock, only 1 left!

0

29:1

Exmark 01-201-0780

DISCONTINUED

$7.49

$

Usually ships in 3-6 days

0

29:2

Exmark 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

29:2:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

30

Exmark 135-6385

Screw-HSBH

$1.99

$

Usually ships in 3-6 days

0

31

Exmark 520-0019

Nut,Hex Jam Mch Scr,10-32,Sst

$0.99

$

In Stock, only 1 left!

0

32

Exmark 135-6208

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

33

Exmark 142-3120

HOSE ASM-HYD HP

$55.99

$

Usually ships in 3-6 days

0

34

Exmark 142-3118

HOSE ASM

$53.99

$

Usually ships in 3-6 days

0

35

Exmark 135-5680

FITTING-90 SWIVEL

$3.99

$

Usually ships in 3-6 days

0

36

Exmark 142-6116

COVER-HOPPER, SMALL

$92.99

$

Usually ships in 3-6 days

0

44

Exmark 142-3821

RATE DIAL ASM

$56.99

$

Usually ships in 3-6 days

0

44:1

Exmark 142-3319

MOUNT-DIAL

$3.49

$

In Stock, Qty 6

0

44:2

Exmark 142-3359

Dial

$11.99

$

In Stock, Qty 7

0

44:3

Rate Gate Link ASM

Note: Not serviced separately

$

$

Not available

44:3:1

Exmark 126-0987

LINK-GATE, RATE

$35.99

$

In Stock, only 1 left!

0

44:3:2

Exmark 126-4196

SCREW-SHOULDER, SLOTTED

$10.99

$

In Stock, only 2 left!

0

44:4

Exmark 88-1080

Footpad Fastener

$9.49

$

In Stock, only 3 left!

0

45

Exmark 142-3912

Grommet-Hopper

$1.99

$

Usually ships in 3-6 days

0

48

Exmark 135-7081

Screw-Hsbhf

$3.49

$

Usually ships in 3-6 days

0

49

Exmark 142-5847

BASE PLATE, HOPPER, 120

$48.99

$

Usually ships in 3-6 days

0

50

Exmark 142-4042

HOPPER BOTTOM BEARING

$1.99

$

In Stock, only 1 left!

0

51

Exmark 142-3886

WIRE-STOP

$3.99

$

Usually ships in 3-6 days

0

52

Exmark 135-5569

RETAINER, CABLE

$1.99

$

In Stock, only 2 left!

0

53

Exmark 135-6356

SCREW-HH

$1.99

$

In Stock, Qty 14

0

55

Exmark 135-6342

Nut-Hex Flange

$1.99

$

In Stock, Qty 8

0

56

Exmark 142-3541

Clip-Spinner

$10.99

$

In Stock, only 2 left!

0
