ZA4640 - Exmark 40" Z-Aerate Stand-On Aerator, Briggs & Stratton (SN: 406294345 - 408644345) (Rev A) (2020) Front Frame Assembly Parts Diagram

40" Z-Aerate Stand-On Aerator, Briggs & Stratton

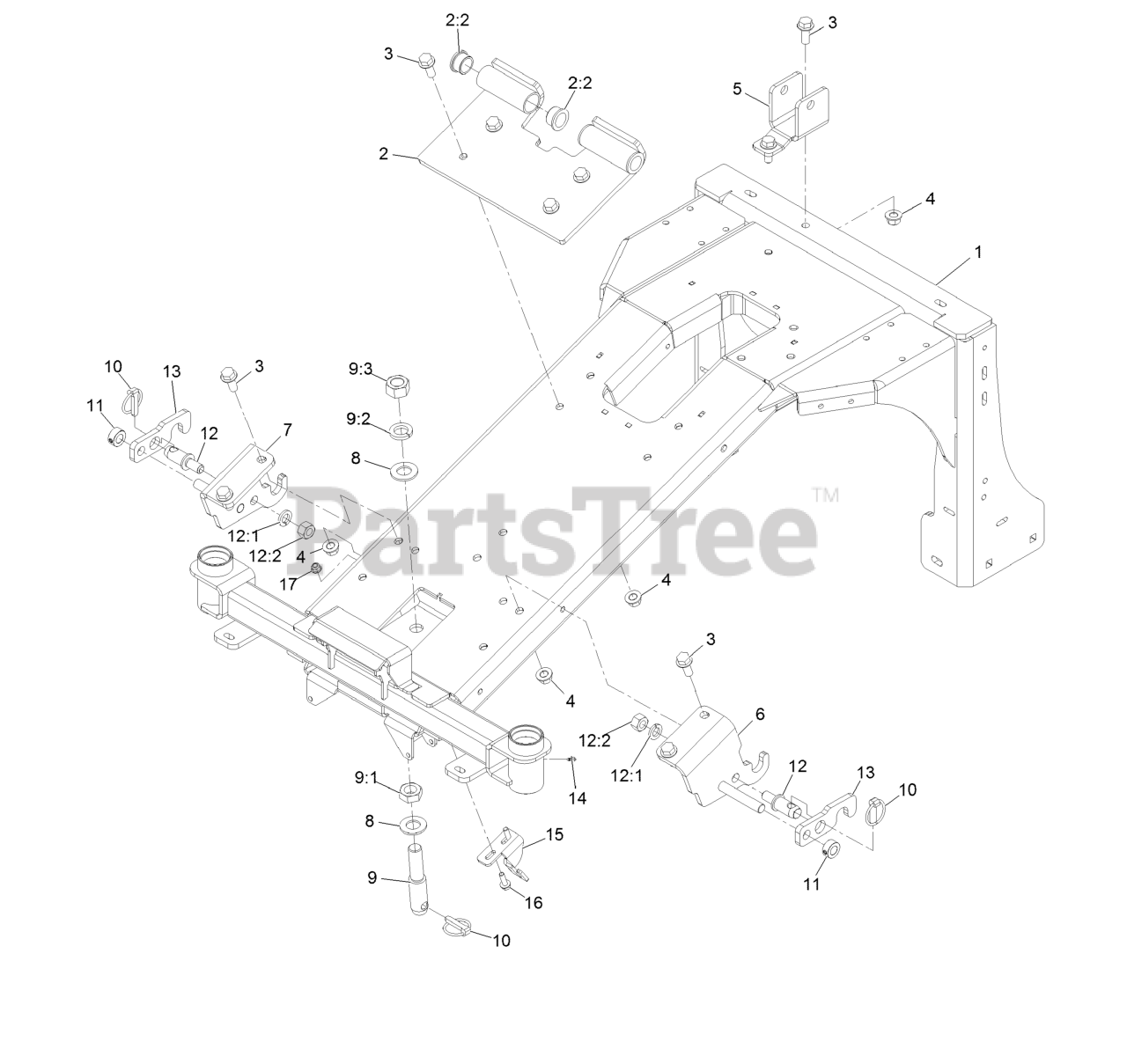

Front Frame Assembly Parts Diagram

  • Title

1

Exmark 135-9501-05

FRONT FRAME ASM

$1442.99

$

Usually ships in 3-6 days

0

2

Exmark 135-7147

PIVOT-ARM, LIFT ASM

$220.99

$

Usually ships in 3-6 days

0

2:2

Exmark 256-132

BUSHING-FLANGE

$8.99

$

In Stock, Qty 5

0

3

Exmark 3234-38

SCREW-HHF

$5.99

$

In Stock, only 3 left!

0

4

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

5

Exmark 135-8678-05

BRACKET-MOUNT, CYLINDER

$27.99

$

Usually ships in 3-6 days

0

6

Exmark 135-9471-05

X-REF 135-9471-05

$51.99

$

Usually ships in 3-6 days

0

7

Exmark 135-9472-05

HITCH PIN-RH

$51.99

$

Usually ships in 3-6 days

0

8

Exmark 3256-29

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

9

Exmark 135-9371

1-1/8 X 5-1/4 LIFT ARM PI

$12.99

$

Usually ships in 3-6 days

0

9:1

Exmark 3220-8

NUT-JAM

$9.49

$

Usually ships in 3-6 days

0

9:2

Exmark 3253-28

WASHER-LOCK/SP

$9.49

$

Usually ships in 3-6 days

0

9:3

Exmark 3219-18

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

10

Exmark 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

11

Exmark 142-1443

5/8 SHAFT COLLAR

$3.49

$

Usually ships in 3-6 days

0

12

Exmark 135-9369

7/8 X 3-1/8 ANCHOR PIN (2

$4.99

$

Usually ships in 3-6 days

0

12:1

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12:2

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

13

Exmark 135-9330-05

PLATE-ATTACHMENT, LOCK

$6.49

$

Usually ships in 3-6 days

0

14

Exmark 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 19

0

15

Exmark 135-9659-05

BRACKET-CABLE, LCS

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 3234-17

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0
