ZA3624 - Exmark 24" Z-Aerate Stand-On Aerator, Kohler CH440 (SN: 413950474 & Above) (Rev A) (2023) Tower Assembly Parts Diagram

24" Z-Aerate Stand-On Aerator, Kohler CH440

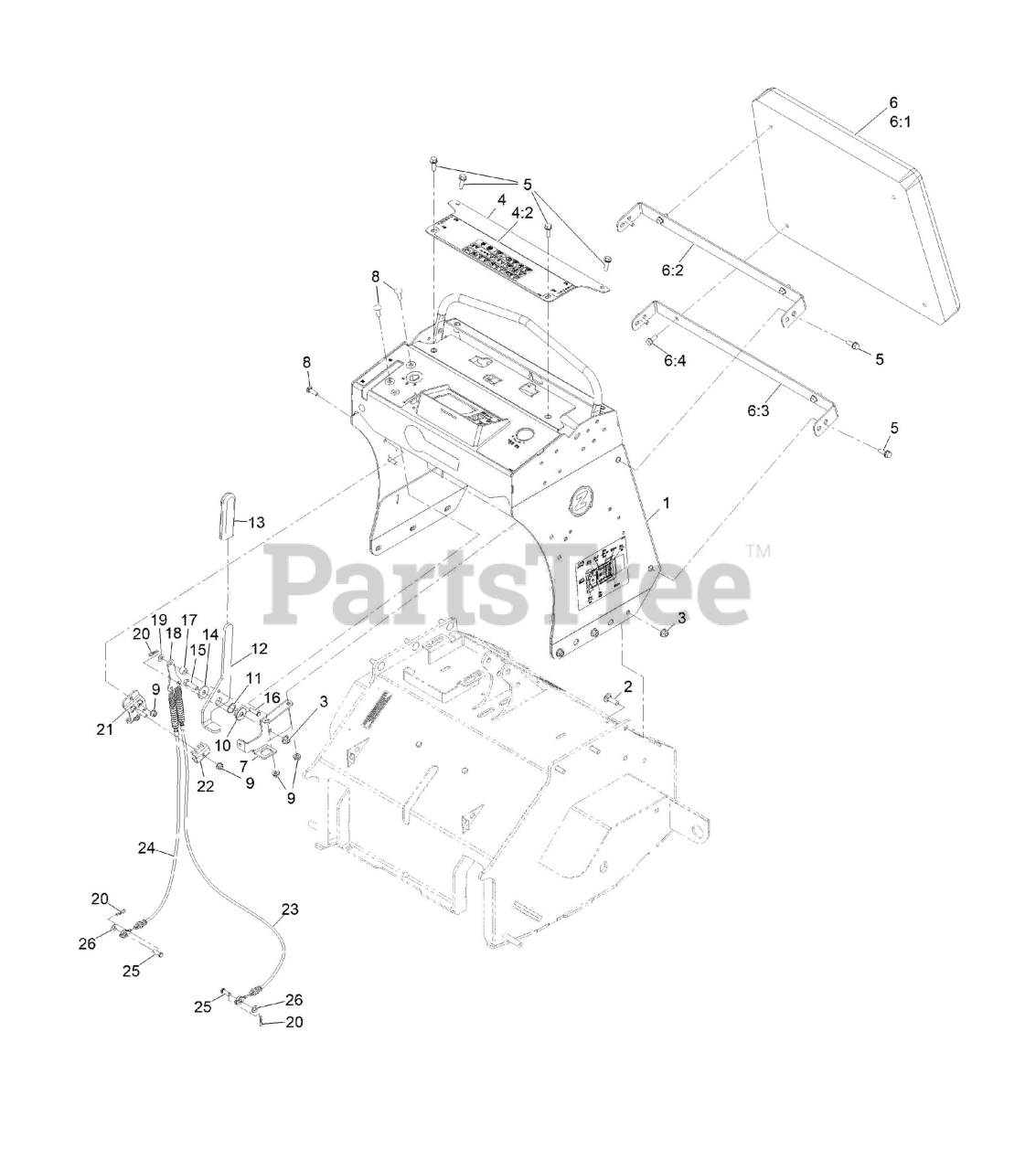

Tower Assembly Parts Diagram

  • Title
1

Exmark 142-4437

CONTROL TOWER ASM

$668.99

$

Usually ships in 3-6 days

0

2

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 135-1695

CONTROL PANEL ASM

$74.99

$

Usually ships in 3-6 days

0

4:2

Exmark 135-2014

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

5

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

6

Cushion ASM

Note: Not serviced separately

$

$

Not available

6:1

Exmark 135-1693

CUSHION-GREY

$246.99

$

Usually ships in 3-6 days

0

6:2

Exmark 135-1712-03

BRACKET-PAD, UPPER

$21.99

$

Usually ships in 3-6 days

0

6:3

Exmark 135-1713-03

BRACKET-PAD, LOWER

$21.99

$

Usually ships in 3-6 days

0

6:4

Exmark 98-9940

SCREW-HHF

$2.49

$

In Stock, only 3 left!

0

7

Exmark 135-1714-03

BRACKET-PIVOT, BRAKE

$21.99

$

Usually ships in 3-6 days

0

8

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

9

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Exmark 126-5989

PIVOT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 119-4164

WASHER-WAVE

$3.49

$

In Stock, only 3 left!

0

12

Exmark 135-1715

HANDLE-BRAKE

$27.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

14

Exmark 2844

WASHER

$2.99

$

In Stock, Qty 17

0

15

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Exmark 283-61

Pin-Yoke

$2.49

$

In Stock, only 2 left!

0

17

Exmark 114-8549

Bushing

$3.49

$

In Stock, Qty 20+

0

18

Exmark 132-1188

Yoke-Cable

$5.49

$

Usually ships in 3-6 days

0

19

Exmark 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

20

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

21

Exmark 132-7582

Mount-Cable, Brake

$34.99

$

Usually ships in 3-6 days

0

22

Exmark 132-1187

Clamp-Cable

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 135-0081

CABLE-BRAKE, LH

$46.99

$

Usually ships in 3-6 days

0

24

Exmark 135-0082

CABLE-BRAKE, RH

$46.99

$

Usually ships in 3-6 days

0

25

Exmark 283-75

PIN-CLEVIS

$3.49

$

Usually ships in 3-6 days

0

26

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
