ZA3624 - Exmark 24" Z-Aerate Stand-On Aerator, Kohler CH440 (SN: 413950474 & Above) (Rev A) (2023) Main Frame Assembly Parts Diagram

24" Z-Aerate Stand-On Aerator, Kohler CH440

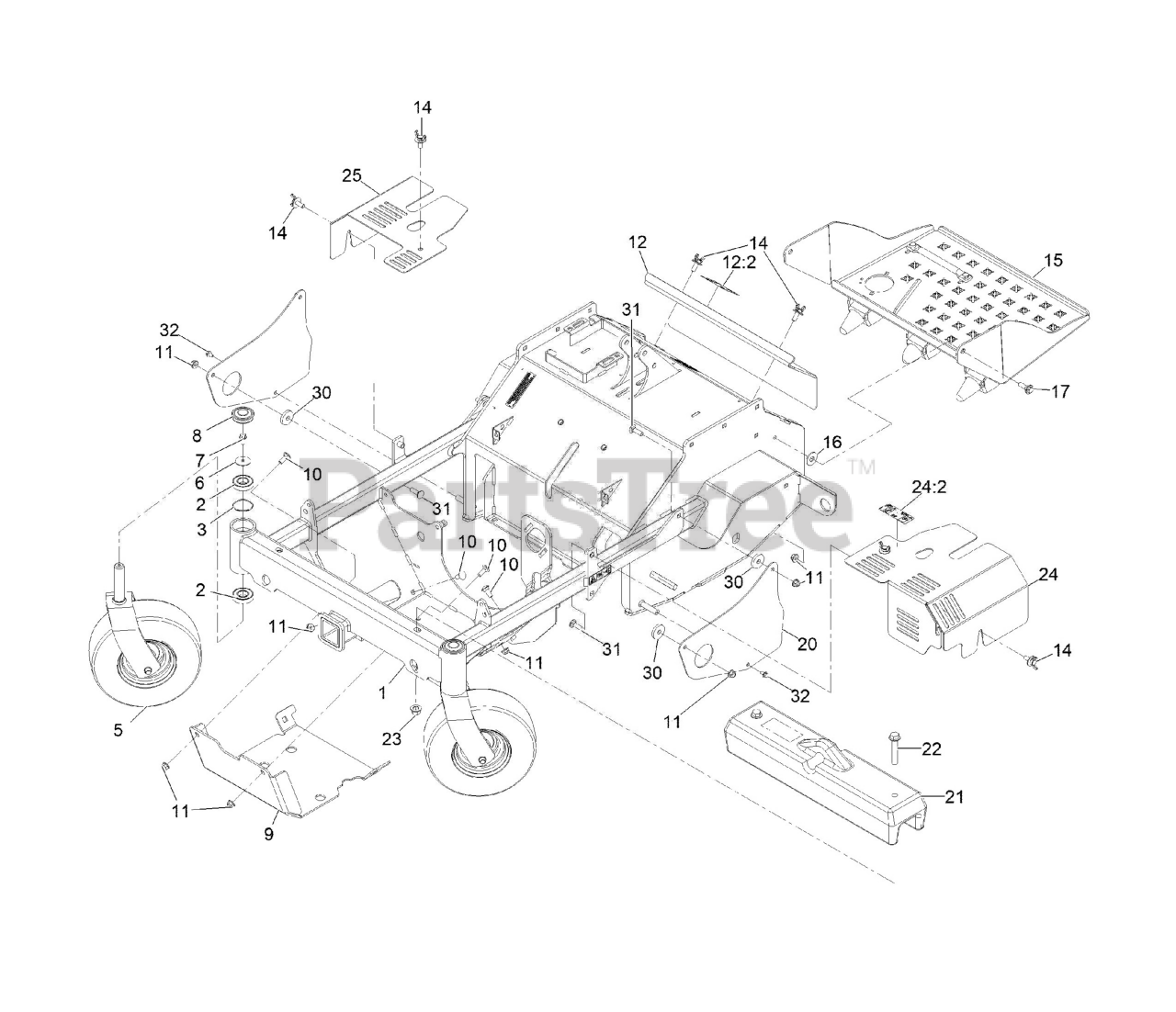

Main Frame Assembly Parts Diagram

  • Title

1

Exmark 142-4432

Main Frame ASM

$

$

Currently unavailable

2

Exmark 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 14

0

3

Exmark 126-5897

SPRING

$1.49

$

In Stock, Qty 17

0

5

Front Caster ASM

Note: Not serviced separately

$

$

Not available

6

Exmark 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

7

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

8

Exmark 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 14

0

9

Exmark 126-8726-03

GUARD-ENGINE

$82.99

$

Usually ships in 3-6 days

0

10

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

11

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Exmark 142-4435

ACCESS COVER ASM

$84.99

$

Usually ships in 3-6 days

0

12:2

Exmark 121-6163

DECAL-OPERATION, TINE GRO

$8.49

$

Usually ships in 3-6 days

0

14

Exmark 135-4629

Screw-Sems (3/8-16 X 1)

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 126-9135

PLATFORM ASM

$503.99

$

Usually ships in 3-6 days

0

16

Exmark 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Exmark 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, Qty 6

0

20

Exmark 135-5138-01

Guard-Chain

$26.99

$

Usually ships in 3-6 days

0

21

Exmark 142-4436

WEIGHT-FRONT

$417.99

$

Usually ships in 3-6 days

0

22

Exmark 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

23

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

24

Exmark 135-3270

HYDRO-COVER

$86.99

$

Usually ships in 3-6 days

0

24:2

Exmark 135-3183

DECAL-RELEASE, DRIVE

$7.49

$

Usually ships in 3-6 days

0

25

Exmark 135-0822-03

COVER-HYDRO

$42.99

$

Usually ships in 3-6 days

0

30

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 5

0

31

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

32

Exmark 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0
