ZA3624 - Exmark 24" Z-Aerate Stand-On Aerator, Kohler CH440 (SN: 411294212 - 413950473) (Rev A) (2022) Ground Drive Assembly Parts Diagram

24" Z-Aerate Stand-On Aerator, Kohler CH440

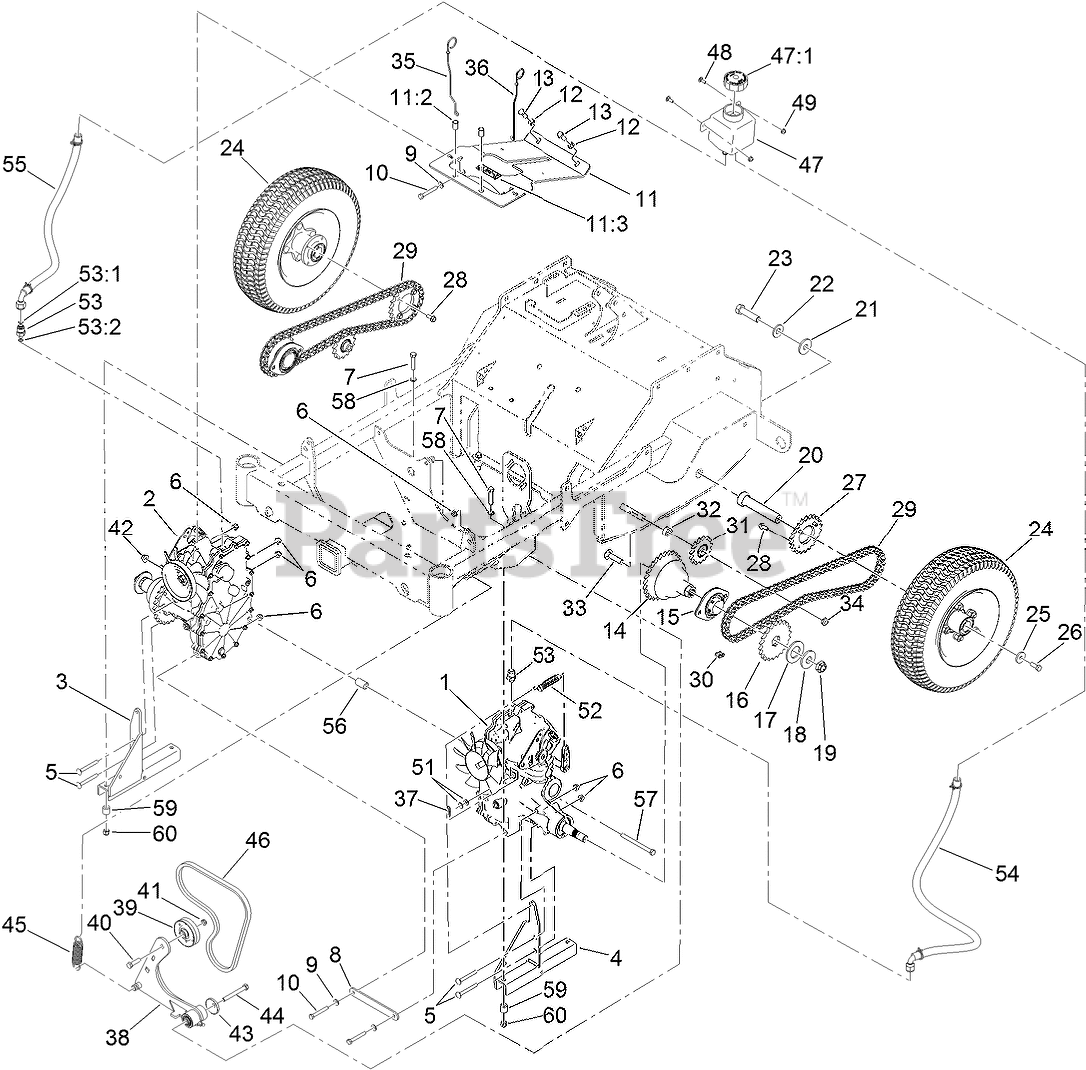

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 142-6970

HYDRO-ZT3100, LH

$1476.99

$

Usually ships in 3-6 days

0

2

Exmark 142-6971

HYDRO-ZT3100, RH

$1476.99

$

Usually ships in 3-6 days

0

3

Exmark 135-2004-03

MOUNT-HYDRO, RH

$68.99

$

Usually ships in 3-6 days

0

4

Exmark 135-2006-03

MOUNT-HYDRO, LH

$68.99

$

Usually ships in 3-6 days

0

5

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

7

Exmark 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

8

Exmark 126-9092-03

Crossmember-Transmission

$7.49

$

Usually ships in 3-6 days

0

9

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

10

Exmark 132-3838

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 135-2497

SUPPORT-COVER

$101.99

$

Usually ships in 3-6 days

0

11:2

Exmark 32148-10

NUT-CLINCH

$8.49

$

Usually ships in 3-6 days

0

11:3

Exmark 121-6161

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Exmark 135-0537

HUB-BELL

$444.99

$

Usually ships in 3-6 days

0

15

Exmark 135-1056

BEARING-FLANGED

$67.99

$

Usually ships in 3-6 days

0

16

Exmark 135-0347

SPROCKET

$64.99

$

Usually ships in 3-6 days

0

17

Exmark 135-0360

WASHER-SPACER

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 26-1990

Washer-Belleville

$20.99

$

Usually ships in 3-6 days

0

19

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

20

Exmark 135-1895

AXLE-WHEEL, DRIVE

$58.99

$

Usually ships in 3-6 days

0

21

Exmark 135-1894

WASHER-SPACER

$7.99

$

Usually ships in 3-6 days

0

22

Exmark 125-1736

Washer-Belleville

$4.49

$

In Stock, only 3 left!

0

23

Exmark 327-7

Screw-HH

$13.99

$

In Stock, only 1 left!

0

24

Exmark 142-4438

WHEEL AND TIRE ASM 16X4.5-8, BLACK RIM

$150.99

$

Usually ships in 3-6 days

0

25

Exmark 53-6380

Washer-Flat

$8.49

$

Usually ships in 3-6 days

0

26

Exmark 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

27

Exmark 126-9075

SPROCKET

$64.99

$

In Stock, only 2 left!

0

28

Exmark 98-9940

SCREW-HHF

$2.49

$

In Stock, only 3 left!

0

29

Exmark 135-1100

CHAIN-ROLLER

$213.99

$

Usually ships in 3-6 days

0

30

Exmark 116-6897

LINK-CONNECTING

$7.99

$

In Stock, only 4 left!

0

31

Exmark 126-9108

SPROCKET-IDLER, 15T

$103.99

$

In Stock, only 2 left!

0

32

Exmark 126-9498

SPACER

$6.99

$

Usually ships in 3-6 days

0

33

Exmark 3233-4

Screw-CARR

$2.99

$

Usually ships in 3-6 days

0

34

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

35

Exmark 135-0683

ROD-BYPASS, LH

$18.99

$

Usually ships in 3-6 days

0

36

Exmark 135-0685

ROD-BYPASS, RH

$18.99

$

Usually ships in 3-6 days

0

37

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

38

Exmark 126-9116

IDLER ARM ASM

$178.99

$

Usually ships in 3-6 days

0

39

Exmark 116-9715

PULLEY-IDLER

$60.99

$

In Stock, only 1 left!

0

40

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

41

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

42

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

44

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

45

Exmark 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

46

Exmark 126-9834

BELT-V, COGGED

$30.99

$

In Stock, only 2 left!

0

47

Exmark 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

47:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

48

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

49

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

51

Exmark 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

52

Exmark 109-7124

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

53

Exmark 135-3138

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

53:1

Exmark 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

53:2

Exmark 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

54

Exmark 135-0061

HOSE ASM

$47.99

$

Usually ships in 3-6 days

0

55

Exmark 135-0062

HOSE ASM

$41.99

$

Usually ships in 3-6 days

0

56

Exmark 135-0124

SPACER

$10.99

$

Usually ships in 3-6 days

0

57

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

58

Exmark 106-5592

SPACER-BRAKE, PARKING

$15.99

$

Usually ships in 3-6 days

0

59

Exmark 98-8895

SPACER

$26.99

$

Usually ships in 3-6 days

0

60

Exmark 112-0236

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0
