ZA3624 - Exmark 24" Z-Aerate Stand-On Aerator, Kohler CH440 (SN: 411294212 - 413950473) (Rev A) (2022) Electrical Assembly Parts Diagram

24" Z-Aerate Stand-On Aerator, Kohler CH440

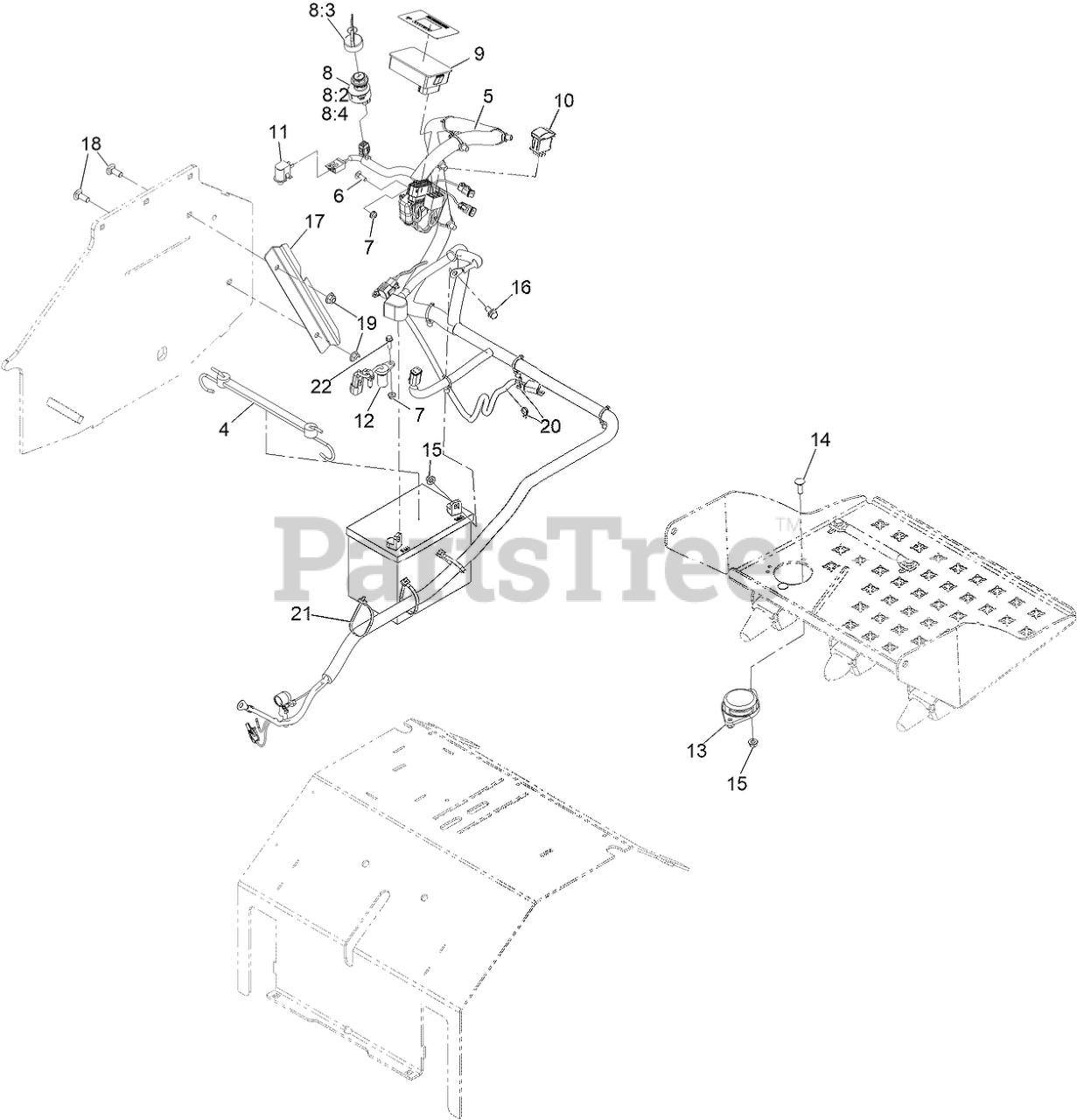

Electrical Assembly Parts Diagram

  • Title

4

Exmark 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

5

Exmark 126-9535

HARNESS-WIRE

$431.99

$

Usually ships in 3-6 days

0

6

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

7

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

8:2

Exmark 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

8:3

Exmark 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

8:4

Exmark 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

9

Exmark 135-2500

Hour Meter ASM

$273.99

$

Usually ships in 3-6 days

0

10

Exmark 100-1535

SWITCH

$90.99

$

In Stock, only 3 left!

0

11

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

12

Exmark 135-0101

SENSOR-QUADRATURE

$213.99

$

Usually ships in 3-6 days

0

13

Exmark 92-6282

SWITCH-SEAT

$34.99

$

In Stock, Qty 5

0

14

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

15

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Exmark 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

17

Exmark 126-9701-03

GUARD-HARNESS

$15.99

$

Usually ships in 3-6 days

0

18

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Exmark 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0
