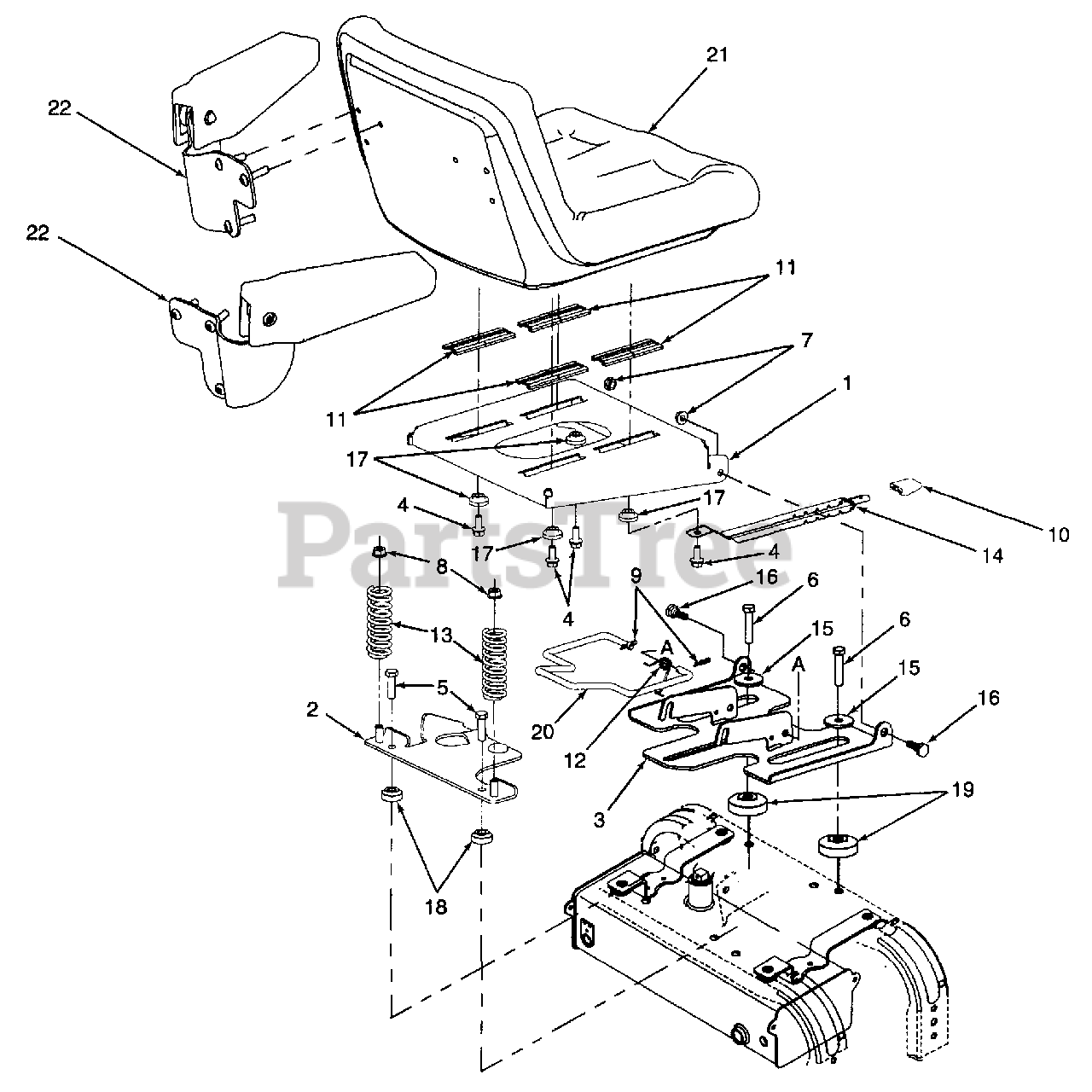

Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower Seat Assembly Mfg. 4-20-98 & After Parts Diagram

54" Zero-Turn Mower

Seat Assembly Mfg. 4-20-98 & After Parts Diagram

  • Title

1

Cub Cadet 603-0294

Seat Base

$

$

Not available

2

Cub Cadet 603-0318A

Plate, Seat Spring Mtg.

Variations

Cub Cadet 603-0318A-0637

PLATE-SEAT SPRG MT(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0470A

Bracket, Seat Mounting

$

$

Currently unavailable

4

Cub Cadet 710-1260

Screw, Hex Wash Hd Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0520

Screw, Hex Cap 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 5

0

6

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1-3/4 GR5

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3005

Nut, Hex Flange Lock 3/8-16 GR5

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 720-0190

Knob, Seat Adjustment
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

11

Cub Cadet 731-3154

Seat Slide

$

$

Not available

12

Cub Cadet 732-0827

Spring, Torsion

$

$

Not available

13

Cub Cadet 732-3080

Spring, Compression
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

14

Cub Cadet 732-3098

Spring, Index

$

$

Not available

15

Cub Cadet 736-0227

Washer, Flat, .390 x 1.5 x .134

$6.49

$

In Stock, Qty 9

0

16

Cub Cadet 738-0296

Bolt, Shoulder .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 738-0372

Spacer, Shoulder, .38 I.D.
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 19

0

18

Cub Cadet 738-3156

Spacer, Shoulder

$

$

Not available

19

Cub Cadet 738-3166

Spacer, Seat Pan Shoulder

$

$

Not available

20

Cub Cadet 747-3342

Rod, Seat Pan Lock

$

$

Not available

21

Cub Cadet 757-3006

Seat Assembly

$

$

Not available

22

Cub Cadet 757-3009

Seat Arm

Note: (Set of Two)

$

$

Not available
