Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower Lift Assist Spring Parts Diagram

54" Zero-Turn Mower

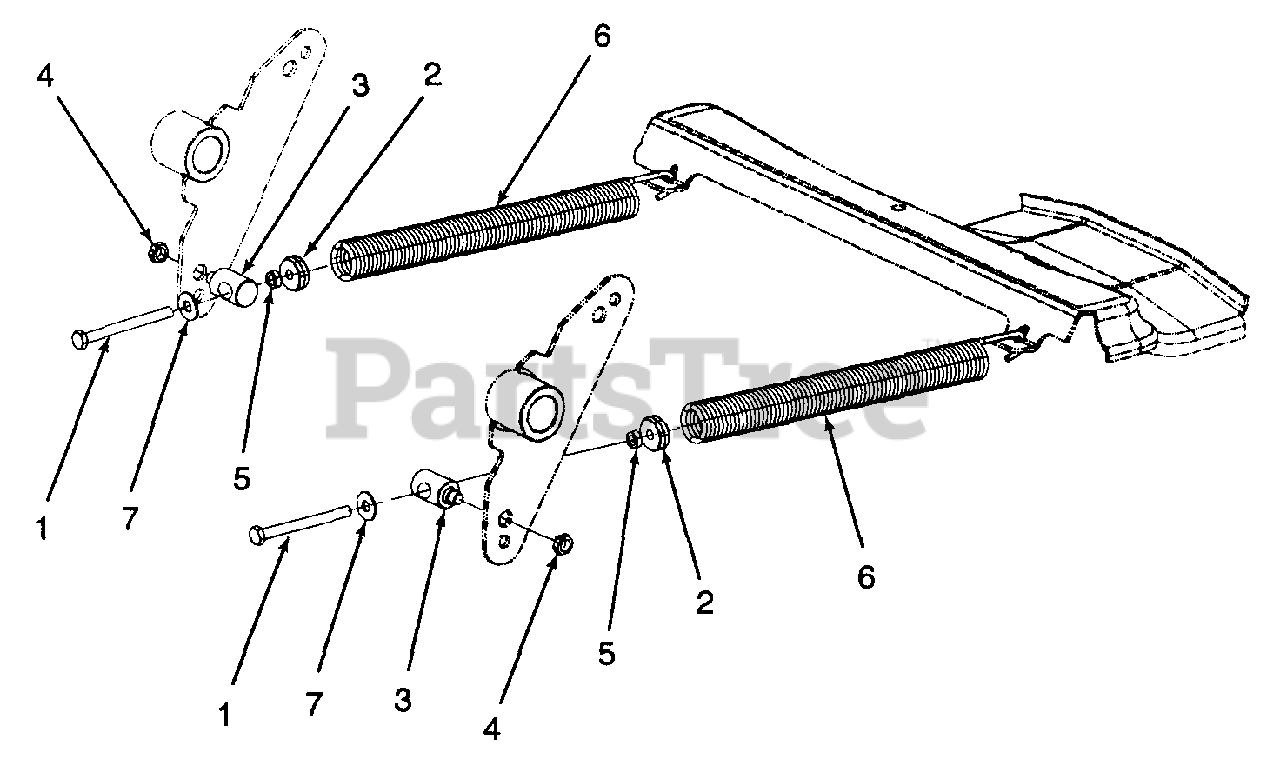

Lift Assist Spring Parts Diagram

  • Title
1

Cub Cadet 710-1207

Screw, Hex Cap, Special 5/16-18 x 3.5 GR5

$6.99

$

In Stock, only 4 left!

0

2

Cub Cadet 711-0509

Insert, Spring, 5/16-18 Thrd

$60.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-1059

Ferrule, .88 O.D. w/.160 Dia. Shldr

$

$

Not available

4

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3007

Nut, Hex Jam, 5/16-18 GR5

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 732-0772

Spring, Extension, 1.25 O.D. x 11.5

$

$

Not available

7

Cub Cadet 736-0159

Washer, Flat, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0
