Z54L (53AC365K100) - Cub Cadet 54" Zero-Turn Mower 18 HP Cylinder/Crankcase Parts Diagram

54" Zero-Turn Mower

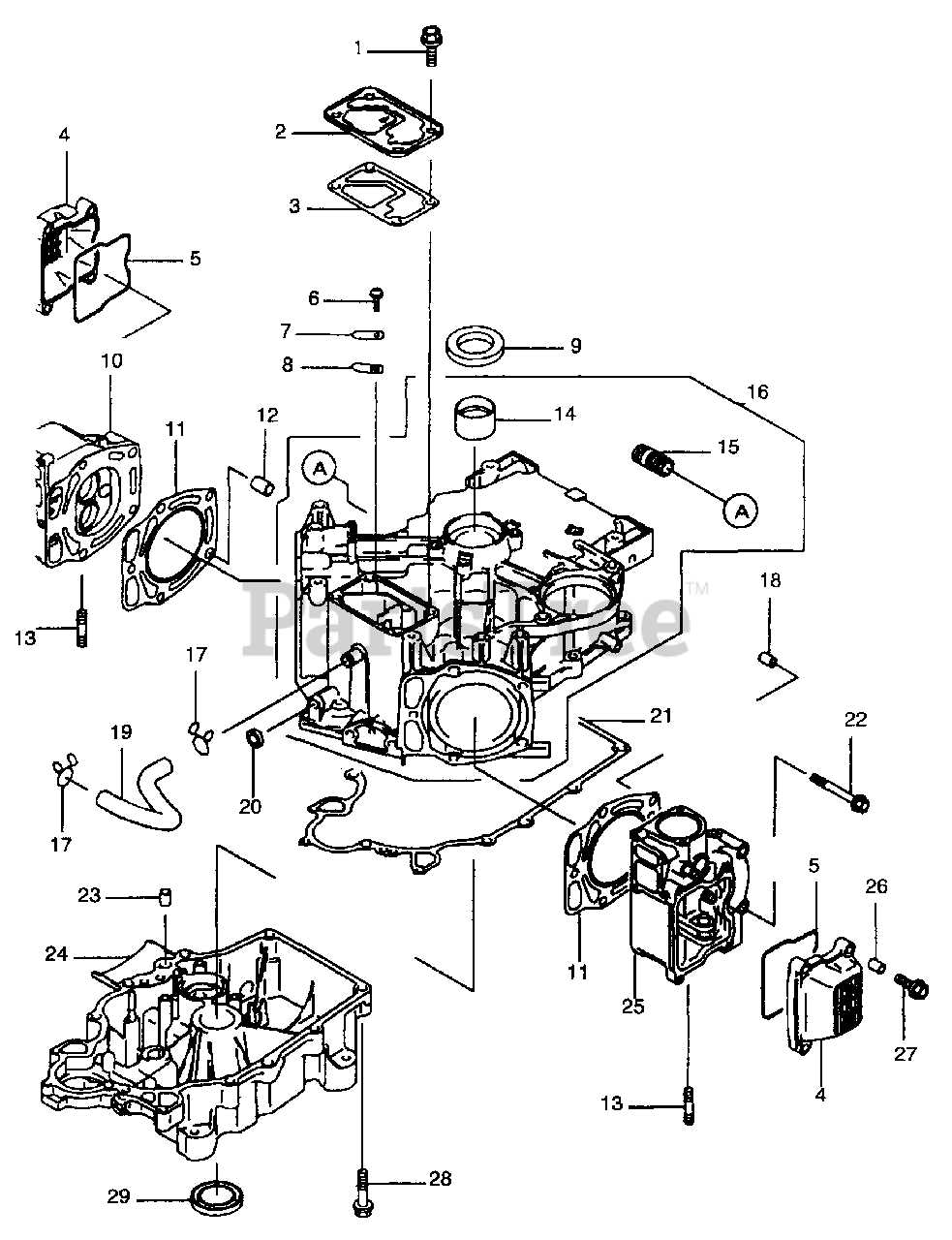

18 HP Cylinder/Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-130B0816

Flanged Bolt
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

2

Cub Cadet KM-14024-2109

Cover

$

$

Not available

3

Cub Cadet KM-11060-2074

Gasket

$3.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-11022-2056

Rocker Case

$16.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-11060-2332

Gasket-Rocker Case
(Superseded to KM-11061-2182)

$7.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 6

0

7

Cub Cadet KM-13183-2120

Plate

$0.99

$

In Stock, only 2 left!

0

8

Cub Cadet KM-16126-2146

Valve

$0.99

$

In Stock, Qty 9

0

9

Cub Cadet KM-92049-2110

Oil Seal
(Superseded to KM-92049-2112)

$6.99

$

In Stock, Qty 14

0

10

Cub Cadet KM-11008-2066

Head-Comp-Cylinder
(Superseded to KM-11008-2133)

$

$

Not available

11

Cub Cadet KM-11004-2098

Gasket-Head

$18.99

$

In Stock, only 4 left!

0

12

Cub Cadet KM-92043-1037

Pin

$0.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-92004-2141

Stud

$1.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92141-2110

Plane Bearing
(Superseded to KM-92141-2122)

$8.49

$

In Stock, Qty 14

0

15

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 8

0

16

Cub Cadet KM-49120-6070

Crankcase-Comp

$

$

Not available

17

Cub Cadet KM-92170-2002

Clamp

$0.99

$

In Stock, Qty 7

0

18

Cub Cadet KM-92143-2010

Collar

$0.99

$

In Stock, Qty 9

0

19

Cub Cadet KM-92190-2145

Tube

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet KM-92049-2097

Oil Seal

$2.49

$

In Stock, only 3 left!

0

21

Cub Cadet KM-11060-2284

Gasket Crankcase Cover
(Superseded to KM-11060-2449)

$22.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-130G0865

Flanged Bolt
(Superseded to KM-130BA0865)

$1.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KM-92043-1037

Pin

$0.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-49015-6100

Cover Crankcase

$375.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-11008-6005

Head Comp Cylinder
(Superseded to KM-11008-6035)

$

$

Not available

26

Cub Cadet KM-92143-2010

Collar

$0.99

$

In Stock, Qty 9

0

27

Cub Cadet KM-130B0625

Flanged Bolt
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

28

Cub Cadet KM-130G0845

Flanged Bolt
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

29

Cub Cadet KM-92049-2112

Oil Seal

$6.99

$

In Stock, Qty 14

0
