Z54 (53BA1B6K100) - Cub Cadet 54" Zero-Turn Mower (1999) Battery, Electrical Components And Switches Parts Diagram

54" Zero-Turn Mower

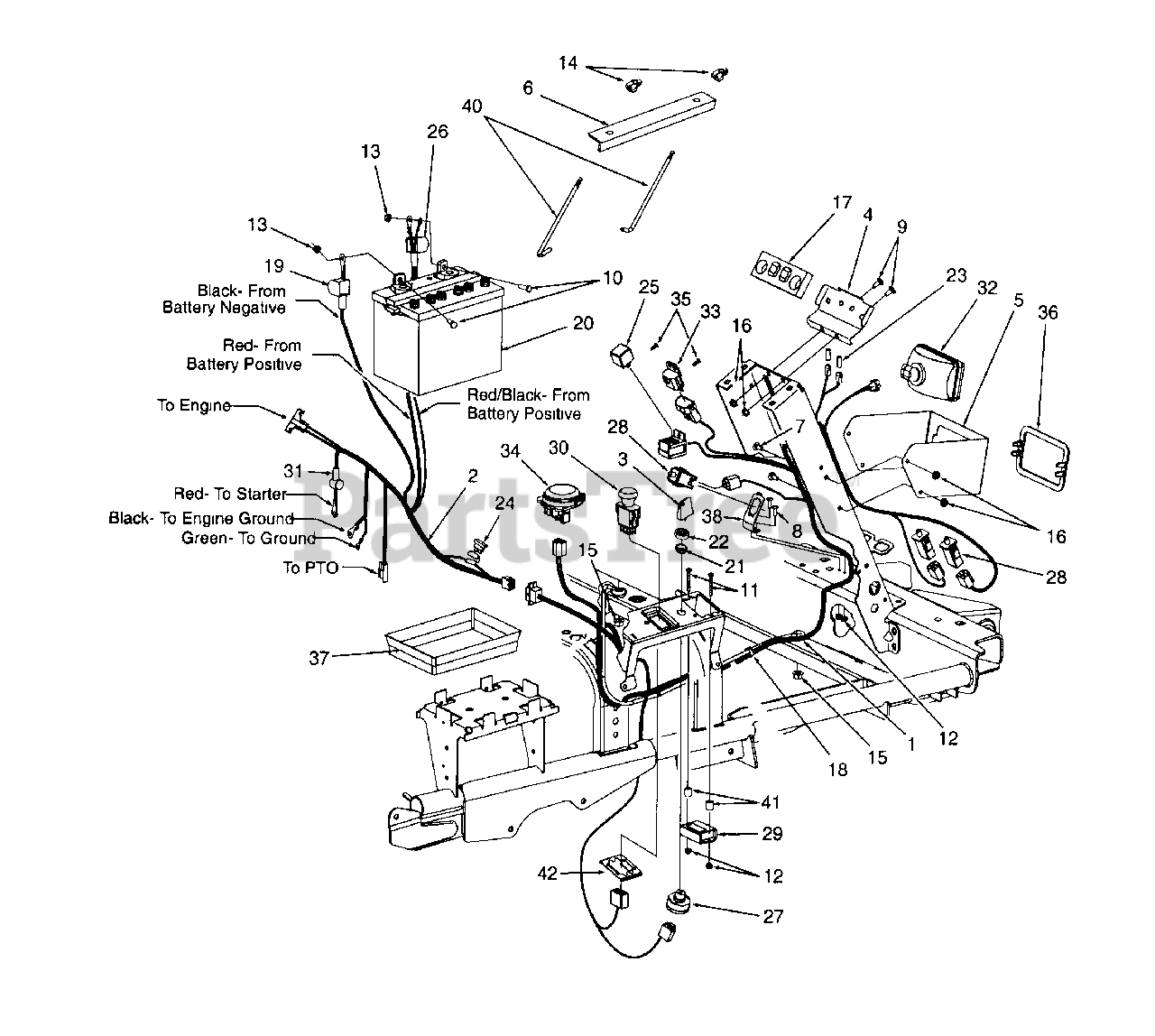

Battery, Electrical Components And Switches Parts Diagram

  • Title

1

Cub Cadet 629-3033

Main Wire Harness

$

$

Not available

2

Cub Cadet 629-3034

Engine Wire Harness

Note: (Inc. 19, 24, 26 & 31)

$

$

Not available

3

Cub Cadet 703-1345A

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

4

Cub Cadet 703-2809

Indicator Bulb Mounting Bracket

Variations

Cub Cadet 703-2809-0637

BRACKET, INDICATOR LG(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-2836

Headlight Mounting Bracket

Variations

Cub Cadet 703-2836-0498

BRACKET-HEADLIGHT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2836-0637

BRACKET-HEADLIGHT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-3149

Battery Retainer Strip

$

$

Not available

7

Cub Cadet 710-0134

Carriage Bolt 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0425

Machine Screw #10-24 x 5/8

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3013

Hex Cap Screw 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

10

Cub Cadet 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3143

Pan Head Cutting Screw #10-24

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0161

Hex Insert Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0397

Nylon Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0431

Hex Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

17

Cub Cadet 723-0455

Indicator Light Foam Protector

$

$

Not available

18

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 725-0340

Battery Terminal Cover - Black

$

$

Not available

20

Cub Cadet 725-1722

Battery

$

$

Not available

21

Cub Cadet 725-1346

Ignition Switch Nut 5/8-32
(Superseded to 925-1346)

$

$

Not available

22

Cub Cadet 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 725-1365

Indicator Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 725-1656

Mini 20 Amp Fuse

$

$

Not available

25

Cub Cadet 725-1718

Relay
(Superseded to 925-1718)

$73.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 725-3007A

Battery Terminal Cover - Red

$

$

Not available

27

Cub Cadet 725-3163

Ignition Switch
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

28

Cub Cadet 725-3164A

Plunger Safety Switch
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

29

Cub Cadet 725-3229

Hourmeter/Tachometer

$

$

Not available

30

Cub Cadet 725-3233

PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 9

0

31

Cub Cadet 725-3237

Terminal Cover - Red

$10.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 725-3250

Headlight Ass'y
(Superseded to 925-3250)

$

$

Not available

Cub Cadet 759-3864

Headlight Bulb
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

33

Cub Cadet 725-3251

Voltage Sensor
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

34

Cub Cadet 725-3253

Seat Switch
(Superseded to 925-3253)

$61.99

$

In Stock, only 1 left!

0

35

Cub Cadet 726-0349

Ratcheet Retainer

$

$

Not available

36

Cub Cadet 731-3184

Headlight Bezel

$

$

Not available

37

Cub Cadet 731-3233

Battery Tray

$

$

Not available

38

Cub Cadet 732-0816

Switch Mounting Spring

$

$

Not available

40

Cub Cadet 747-3347

Battery Retainer Rod

$

$

Not available

41

Cub Cadet 750-0539

Spacer
(Superseded to 950-0539)

$

$

Not available

42

Cub Cadet 783-0462

PTO Switch Retainer Bracket

$

$

Not available
