Z54 (53AC385K100) - Cub Cadet 54" Zero-Turn Mower Drive Controls And Support Tower Parts Diagram

54" Zero-Turn Mower

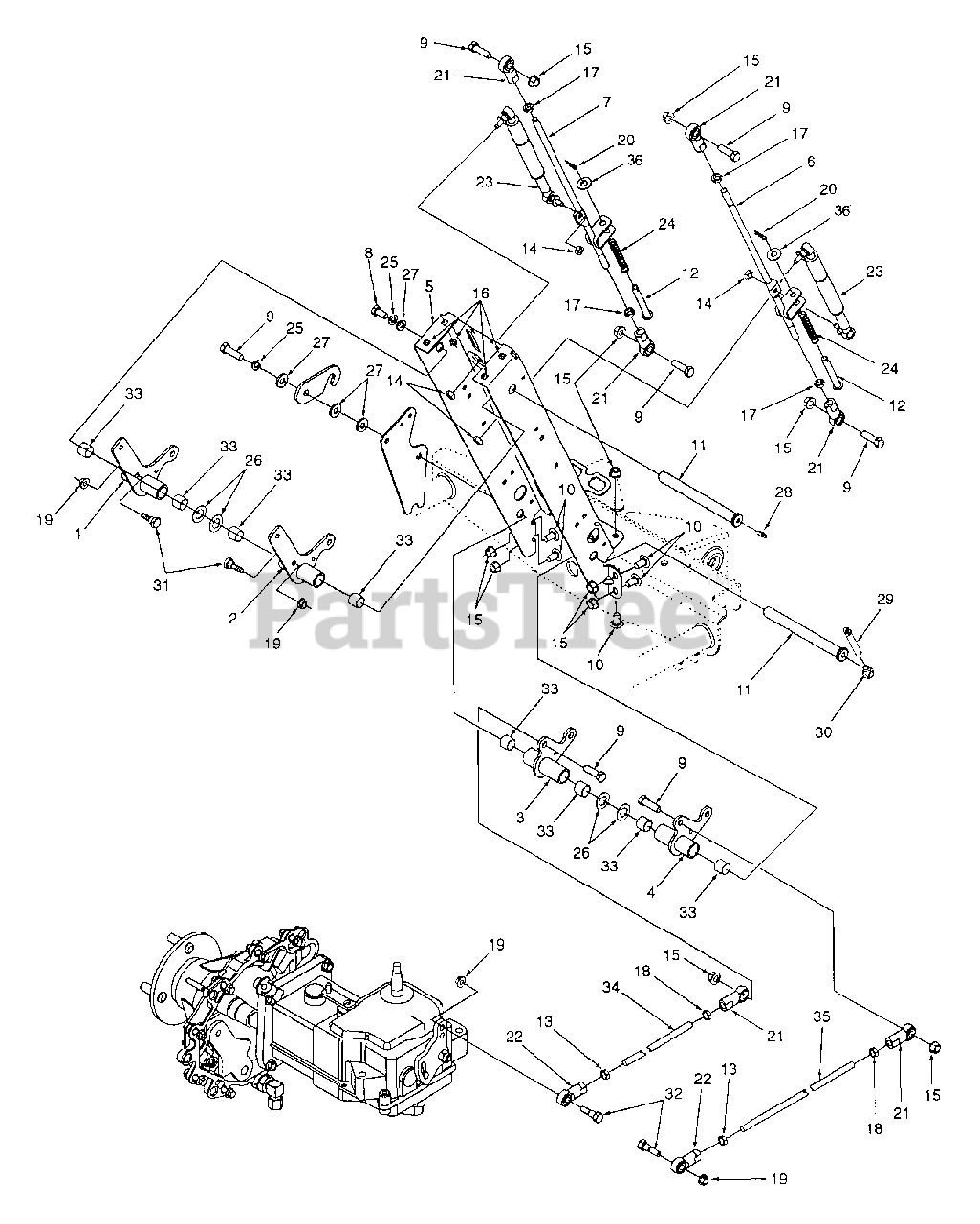

Drive Controls And Support Tower Parts Diagram

  • Title

1

Cub Cadet 603-0340

Bellcrank Ass'y, Upper LH

Note: Includes Ref No. 33 (2)

$

$

Not available

2

Cub Cadet 603-0341

Bellcrank Ass'y, Upper RH

Note: Includes Ref No. 33 (2)

Variations

Cub Cadet 603-0341-0637

BELLCRANK ASS'Y UPPER RH - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0342

Bellcrank Ass'y, Lower LH

Note: Includes Ref No. 33 (2)

$

$

Not available

4

Cub Cadet 603-0343

Bellcrank Ass'y, Lower RH
(Superseded to 603-0343-0637)

Note: Includes Ref No. 33 (2)

Variations

Cub Cadet 603-0343-0637

BELCRNK ASM:W/BRG - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 603-0364

Support Ass'y, Tower

Note: Code 0498

Variations

Cub Cadet 603-0364-0637

TOWER SUPPORT ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 603-0410

Rod Ass'y, Control RH

$

$

Not available

7

Cub Cadet 603-0411

Rod Ass'y, Control LH

$

$

Not available

8

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x 3/4 GR5

$4.49

$

In Stock, Qty 14

0

9

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 711-1111

Shaft, Control

$

$

Not available

12

Cub Cadet 711-1124

Pin, .374 Dia x 2.88 Lg

$

$

Not available

13

Cub Cadet 712-0312

Nut, Hex Jam LH Thrd, 3/8-24
(Superseded to 712-0312A)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-0365

Nut, Hex Center Lock, M8 GR8.8

$

$

Not available

15

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0453

Nut, Retainer, 1/4-20

$

$

Not available

17

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

19

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 723-0420

Rod End, Spherical RH, 3/8-24

$

$

Not available

22

Cub Cadet 723-0421

Rod End, Spherical LH, 3/8-24
(Superseded to 923-0421)

$

$

Not available

23

Cub Cadet 727-3113

Cylinder, Damper

$207.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-3084

Spring, Compression

$

$

Not available

25

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0539

Washer, Thrust, .625 x 1.12 x .06

$

$

Not available

27

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

28

Cub Cadet 737-0280

Fitting, Grease

$7.99

$

In Stock, Qty 8

0

29

Cub Cadet 737-3072

Fitting, Grease w/Tube

$

$

Not available

30

Cub Cadet 737-3073

Adapter, 90° 1/4-20 Thrd.

$

$

Not available

31

Cub Cadet 738-0296

Bolt, Shoulder, .437 Dia x .268

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 738-3153

Bolt, Shoulder

$

$

Not available

33

Cub Cadet 741-3063

Bearing, Sleeve, .628 x .75 x .625

$17.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-3281

Rod, Control, LH 31-5/8 Lg.

$

$

Not available

35

Cub Cadet 747-3282

Rod, Control, RH 35-3/8 Lg.

$

$

Not available

36

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

Cub Cadet 736-0300

Flat Washer .406 x .87 x .06

$4.49

$

In Stock, Qty 20+

0
