Z54 (53AC385K100) - Cub Cadet 54" Zero-Turn Mower 20HP Fuel System Parts Diagram

54" Zero-Turn Mower

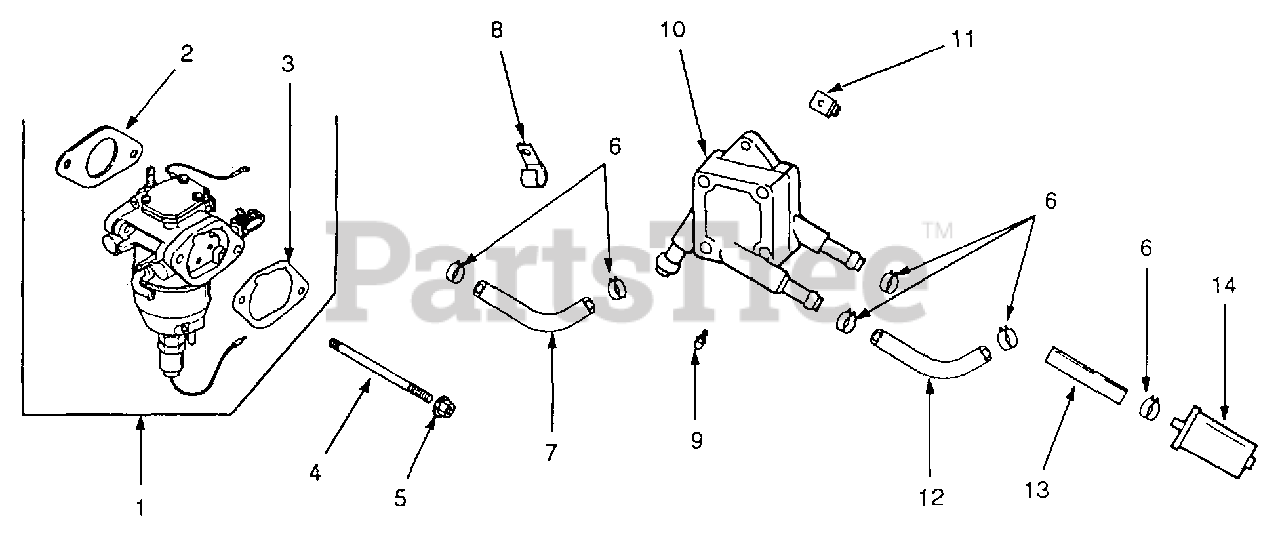

20HP Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-17

Kit, Carburetor w/Gaskets

Note: (Includes 2 thru 4)

$

$

Not available

2

Cub Cadet KH-24-041-15

Gasket, Carburetor

$

$

Not available

3

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

4

Cub Cadet KH-M-0629128

Stud, M6 x 1.0 x 128

$

$

Not available

5

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-353-03

Fuel Line 10.5"
(Superseded to KH-24-353-12)

$

$

Not available

8

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-24-086-12

Screw, Hex Cap, M6 x 1.7 x 18

$

$

Not available

10

Cub Cadet KH-24-393-04

Pump, Pulse Fuel
(Superseded to KH-24-393-16)

$

$

Not available

11

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

12

Cub Cadet KH-24-353-11

Fuel Line 11.5"

$

$

Not available

13

Cub Cadet KH-25-353-15

Fuel Line 3.5"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-25-050-03

Filter, Fuel
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-18

Kit, Carburetor Repair w/Gaskets
(Superseded to KH-24-757-18-S)

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Kit, Choke Repair w/Gaskets

$

$

Not available

Cub Cadet KH-24-757-20

Kit, Gasket

$

$

Not available

Cub Cadet KH-24-757-22

Kit, Solenoid w/Gaskets

$

$

Not available
