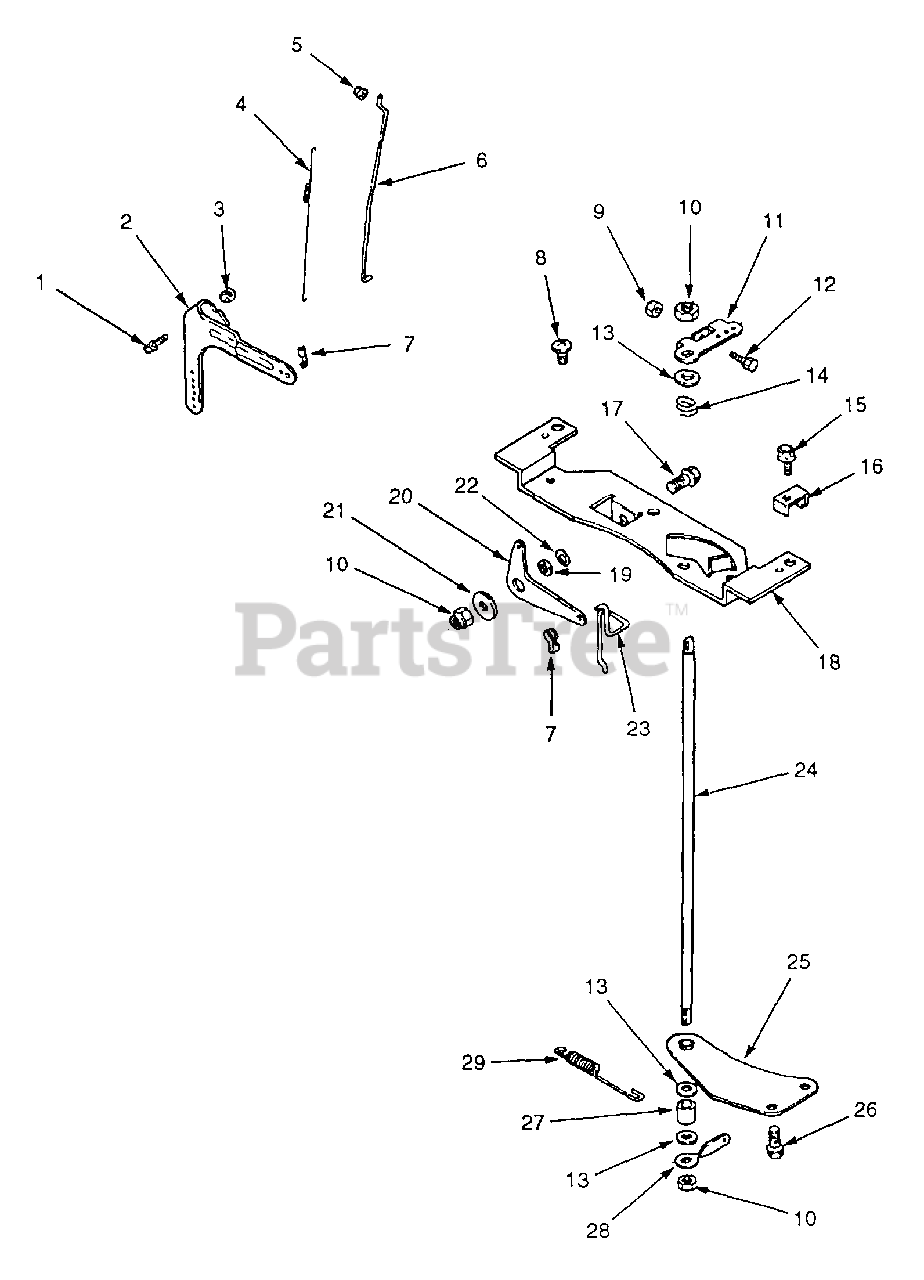

Z54 (53AC385K100) - Cub Cadet 54" Zero-Turn Mower 20HP Engine Controls Parts Diagram

54" Zero-Turn Mower

20HP Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-SM-0642025

Screw, Hex Flange, M6 x 1.0 x 25
(Superseded to KH-M-642025-S)

$2.49

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-090-14

Lever, Governor

$

$

Not available

3

Cub Cadet KH-M-0641060

Nut, Hex Flange, M6 x 1.0
(Superseded to KH-M-641060-S)

$4.49

$

In Stock, Qty 7

0

4

Cub Cadet KH-24-089-01

Spring, Linkage

$

$

Not available

5

Cub Cadet KH-25-158-08

Bushing, Linkage Retaining

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Linkage, Throttle

$

$

Not available

7

Cub Cadet KH-25-158-11

Bushing, Throttle Linkage

$

$

Not available

8

Cub Cadet KH-24-086-06

Screw, Phillips Hd. 11-16 x 3/4

$

$

Not available

9

Cub Cadet KH-M-0446030

Nut, Hex, M4 x 0.7
(Superseded to KH-M-446030-S)

$2.49

$

In Stock, only 4 left!

0

10

Cub Cadet KH-M-0647060

Nut, Hex Lock, M6 x 1.0

$

$

Currently unavailable

11

Cub Cadet KH-24-090-09

Lever, Throttle Control

$

$

Not available

12

Cub Cadet KH-M-0401030

Screw, Hex Cap, M4 x 0.7 x 30
(Superseded to KH-M-401030)

$

$

Not available

13

Cub Cadet KH-X-25-72

Washer, 1/4

$

$

Not available

14

Cub Cadet KH-24-089-20

Spring, Throttle Shaft

$

$

Not available

15

Cub Cadet KH-M-0545016

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

16

Cub Cadet KH-12-237-01

Clamp, Cable
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-M-0639016

Screw, Hex Flange, M6 x 1.0 x 16
(Superseded to KH-M-639016-S)

$2.49

$

In Stock, Qty 6

0

18

Cub Cadet KH-24-126-59

Bracket, Control
(Superseded to KH-24-126-219-S)

$37.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-25-431-01

Spacer

$

$

Currently unavailable

20

Cub Cadet KH-24-090-20

Lever, Choke

$

$

Not available

21

Cub Cadet KH-X-25-52

Washer, 1/4
(Superseded to 736-0173)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet KH-277341

Washer, Spring, 3/8

$

$

Not available

23

Cub Cadet KH-24-079-10

Linkage, Choke

$

$

Not available

24

Cub Cadet KH-24-144-11

Shaft, Throttle

$

$

Not available

25

Cub Cadet KH-24-126-17

Bracket, Throttle Shaft
(Superseded to KH-24-126-162-S)

$8.99

$

In Stock, only 1 left!

0

26

Cub Cadet KH-M-0645016

Screw, Hex Flange, M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 15

0

27

Cub Cadet KH-24-112-10

Spacer

$

$

Not available

28

Cub Cadet KH-24-090-12

Lever, Throttle Control

$

$

Not available

29

Cub Cadet KH-24-089-15

Spring, Governor

$

$

Not available
