Z54 (53AC385K100) - Cub Cadet 54" Zero-Turn Mower 20HP Blower Housing And Baffles Parts Diagram

54" Zero-Turn Mower

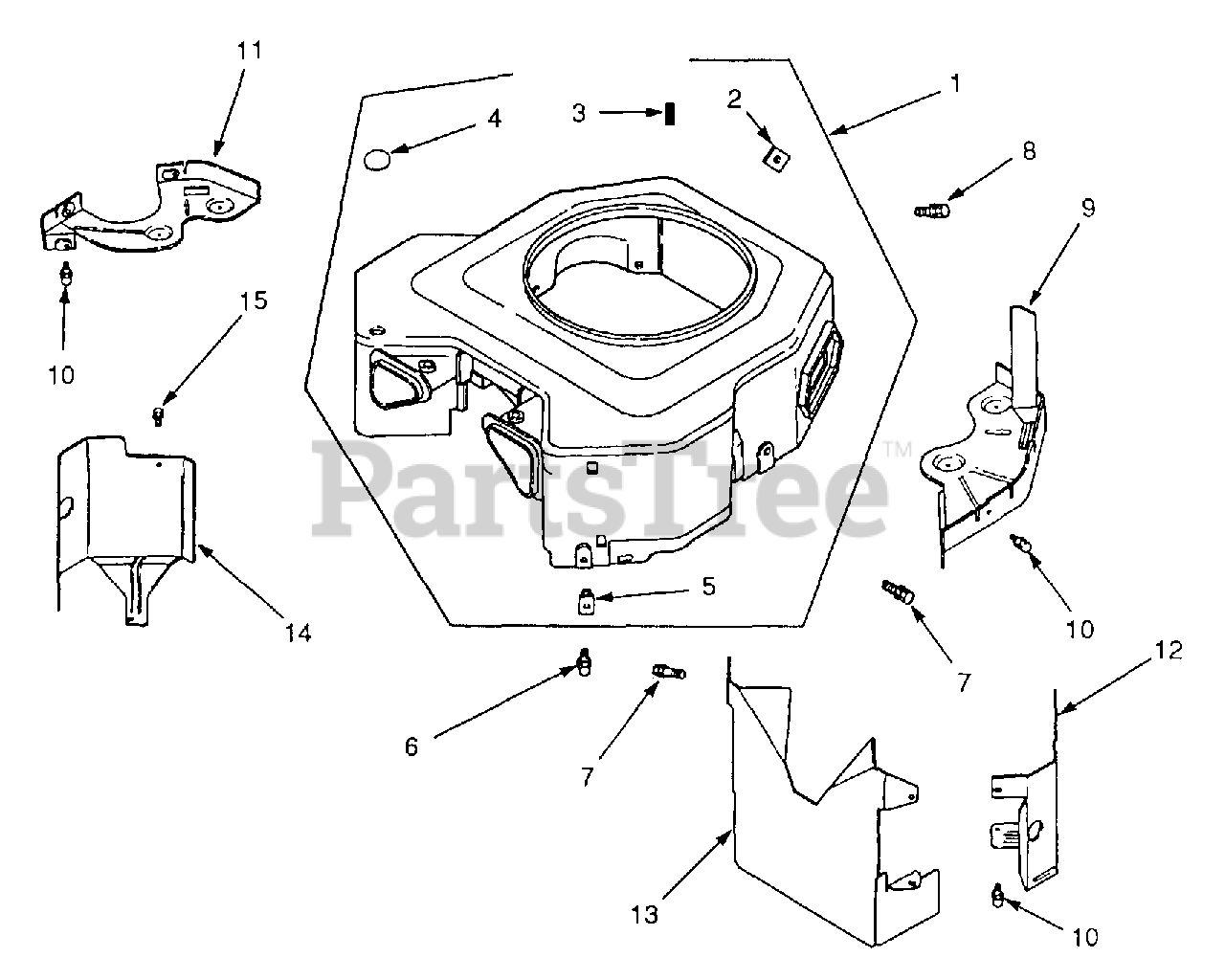

20HP Blower Housing And Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-83

Housing, Blower
(Superseded to KH-24-027-488-S)

Note: (Incl. 2 thru 5)

$178.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

3

Cub Cadet KH-25-086-43

Screw, Set

$

$

Not available

4

Cub Cadet KH-25-139-16

Plug, Button, 9/16

$

$

Not available

5

Cub Cadet KH-24-100-02

Nut, Plastic

$

$

Not available

6

Cub Cadet KH-M-0545020

Screw, Hex Flange, M5 x 0.8 x 20

$

$

Not available

7

Cub Cadet KH-M-0545016

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

8

Cub Cadet KH-M-0551016

Screw, Hex Flange, M5 x 0.8 x 16

$

$

Not available

9

Cub Cadet KH-24-146-07

Plate, Backing - #2 Side

$

$

Not available

10

Cub Cadet KH-M-0645016

Screw, Hex Flange, M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 13

0

11

Cub Cadet KH-24-146-08

Plate, Backing - #1 Side

$

$

Not available

12

Cub Cadet KH-24-063-20

Baffle, Cylinder Barrel - #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-063-29

Baffle, Valley

$

$

Not available

14

Cub Cadet KH-24-063-30

Baffle, Cylinder Barrel - #1 Side

$

$

Not available

15

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x 0.8 x 10

$

$

Not available
