Z48L (53BA1D5M100) - Cub Cadet 48" Zero-Turn Mower Starter Parts Diagram

48" Zero-Turn Mower

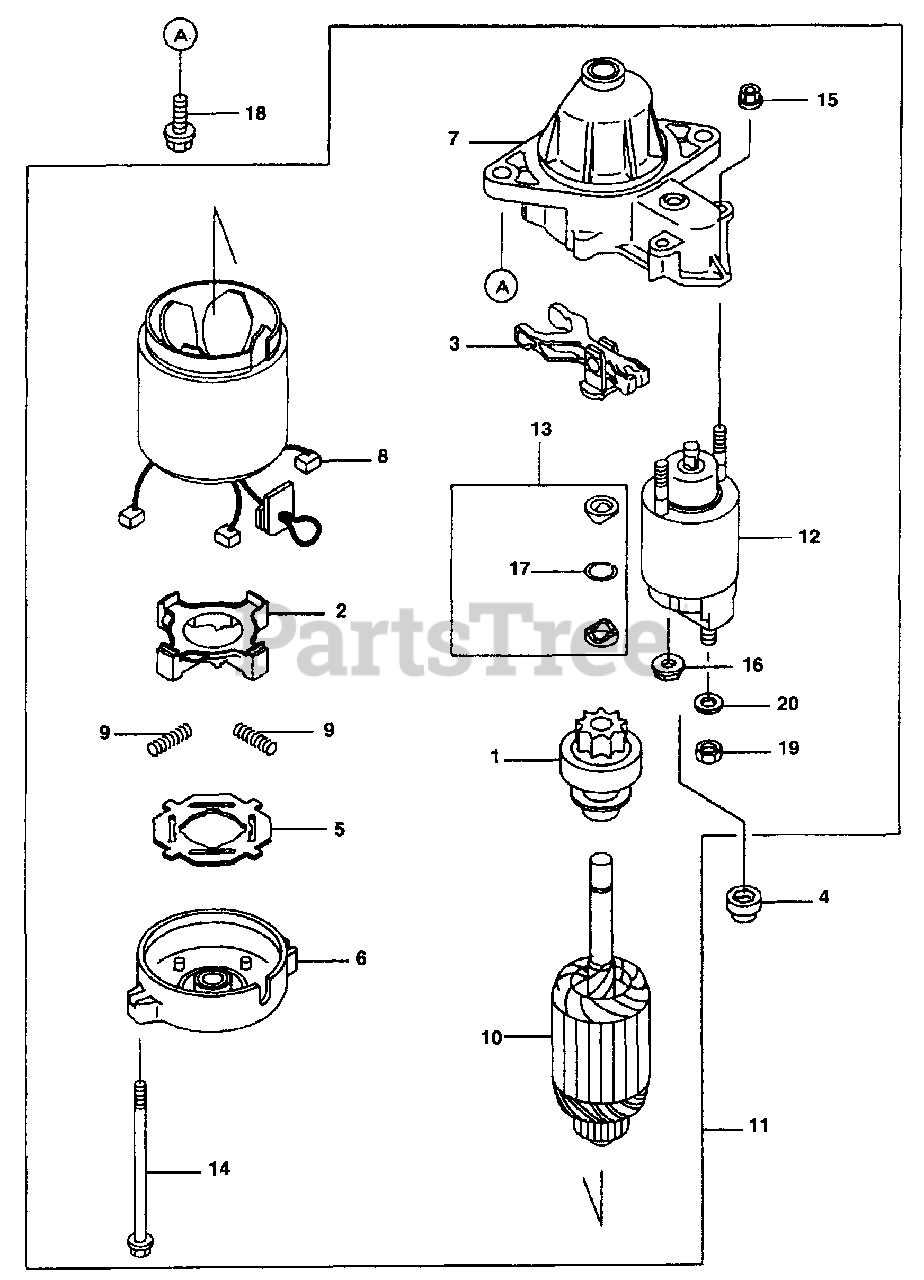

Starter Parts Diagram

  • Title

1

Cub Cadet KM-13081-2108

Clutch Ass'y

$122.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13091-2068

Brush Holder

$29.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13168-2131

Shift Lever

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-14024-2205

Cover

$1.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-16073-2098

Insulator

$10.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-16146-2077

Cover Ass'y

$83.99

$

In Stock, only 1 left!

0

7

Cub Cadet KM-16146-2128

Cover Ass'y

$

$

Not available

8

Cub Cadet KM-21039-2059

Brush

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-21040-2052

Brush Spring

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-21080-2054

Armature

$

$

Not available

11

Cub Cadet KM-21163-2077

Electric Starter
(Superseded to KM-21163-2141)

$602.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-27010-2122

Switch
(Superseded to KM-27010-7005)

$189.99

$

In Stock, Qty 14

0

13

Cub Cadet KM-32085-2097

Stopper

$15.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92002-2277

Bolt

$13.99

$

In Stock, Qty 5

0

15

Cub Cadet KM-92015-2146

Nut

$1.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92015-2147

Nut

$7.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92033-2081

Snap Ring

$6.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-130B0830

Flanged Bolt
(Superseded to KM-130CA0830)

$2.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-317B0800

Small Hex Nut

$0.99

$

In Stock, Qty 19

0

20

Cub Cadet KM-461F0800

Spring Washer
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0
