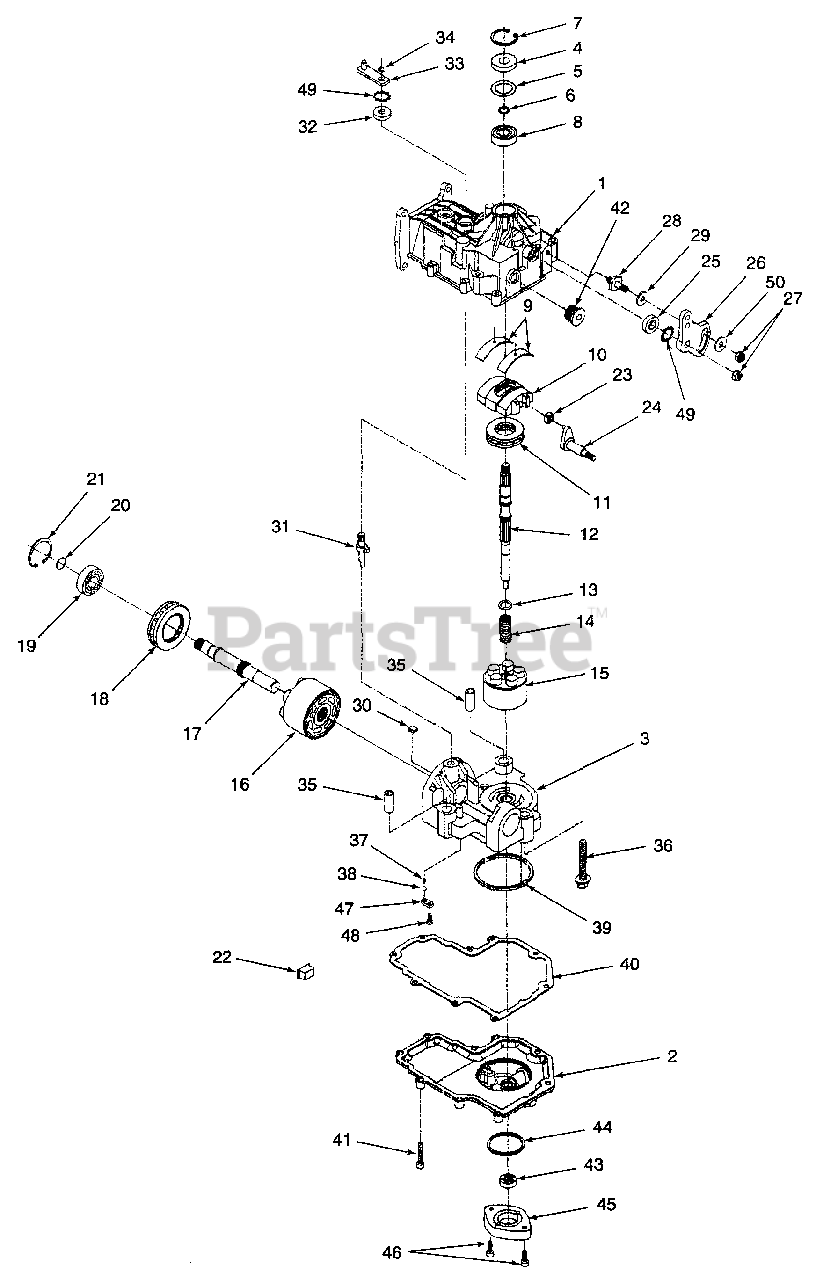

Z48L (53BA1D5M100) - Cub Cadet 48" Zero-Turn Mower Hydrostatic Transmission Parts Diagram

48" Zero-Turn Mower

Hydrostatic Transmission Parts Diagram

  • Title

Cub Cadet 717-3402

Transmission Ass'y, Hydro
(Superseded to 917-3455)

$

$

Not available

1

Cub Cadet HG-70304

Housing Ass'y, Upper

$

$

Not available

2

Cub Cadet HG-50301

Housing, Lower

$

$

Not available

3

Cub Cadet HG-70299

Center Section Assembly
(Superseded to HG-70708)

$

$

Not available

4

Cub Cadet HG-9008000-0128

Seal, Lip

$19.99

$

In Stock, only 2 left!

0

5

Cub Cadet HG-2003018

Spacer

$10.99

$

Usually ships in 3-6 days

0

6

Cub Cadet HG-2003016

Ring, Wire Retaining

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2003052

Ring, Retaining

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-2003043

Bearing, Ball
(Superseded to HG-2003043P)

$73.99

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-2003023

Bearing, Cradle
(Superseded to HG-52619)

$12.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2003087

Swashplate, Variable

$220.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50551

Bearing, Thrust
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50303

Shaft, Input

$

$

Not available

13

Cub Cadet HG-2003017

Washer, Block Thrust

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2003014

Spring, Block

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-70079

Block Assembly, Cylinder
(Superseded to HG-70331)

$188.99

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-70082

Block Assembly, Cylinder
(Superseded to HG-72159)

$106.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-50304

Shaft, Output (Motor)

$

$

Not available

18

Cub Cadet HG-50552

Bearing, Thrust
(Superseded to HG-53341)

$37.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

20

Cub Cadet HG-2000022

Ring, Wire Retaining

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-50329

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-50649

Retainer, Motor Bearing

$

$

Not available

23

Cub Cadet HG-2000015

Guide, Slot

$21.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-50807

Arm, Trunnion

$

$

Not available

25

Cub Cadet HG-9008000-0126

Seal, Lip

$15.99

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-50733

Arm, Control

$

$

Not available

27

Cub Cadet 712-0237

Nut, Hex Lock, 5/16-24

$4.99

$

In Stock, only 4 left!

0

28

Cub Cadet HG-50426

Stud, Short, 5/16-24

$14.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-50281

Puck, Friction

$

$

Not available

30

Cub Cadet HG-2003554

Plate, Bypass
(Superseded to HG-70680)

$

$

Not available

31

Cub Cadet HG-2003555

Actuator, Bypass

$

$

Not available

32

Cub Cadet HG-45074

Seal, Lip

$

$

Not available

33

Cub Cadet HG-50270

Arm, Bypass

$

$

Not available

34

Cub Cadet HG-44870

Ring, Retaining

$

$

Not available

35

Cub Cadet HG-50002

Pin

$7.99

$

Usually ships in 3-6 days

0

36

Cub Cadet HG-50016

Screw

$4.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-2000029

Spring, Charge Relief

$

$

Not available

38

Cub Cadet HG-9001214-2500

Ball

$

$

Not available

39

Cub Cadet HG-50578

O-Ring

$

$

Not available

40

Cub Cadet HG-50331

Gasket

$13.99

$

In Stock, only 1 left!

0

41

Cub Cadet HG-44876

Screw, Self Tapping

$4.49

$

In Stock, only 2 left!

0

42

Cub Cadet HG-9005110-8700

Plug, Drain

$39.99

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-50273

Gerotor Assembly

$36.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-9004101-1340

O-Ring

$4.49

$

Usually ships in 3-6 days

0

45

Cub Cadet HG-50260

Cover, Gerotor

$

$

Not available

46

Cub Cadet HG-50095

Screw

$

$

Not available

47

Cub Cadet HG-50651

Plate, Relief

$

$

Not available

48

Cub Cadet HG-50653

Screw

$2.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-50650

Ring, Retaining

$

$

Not available

50

Cub Cadet 736-0371

Washer

$4.49

$

In Stock, only 3 left!

0
