Z48L (53BA1D5M100) - Cub Cadet 48" Zero-Turn Mower Frame and Attachments Parts Diagram

48" Zero-Turn Mower

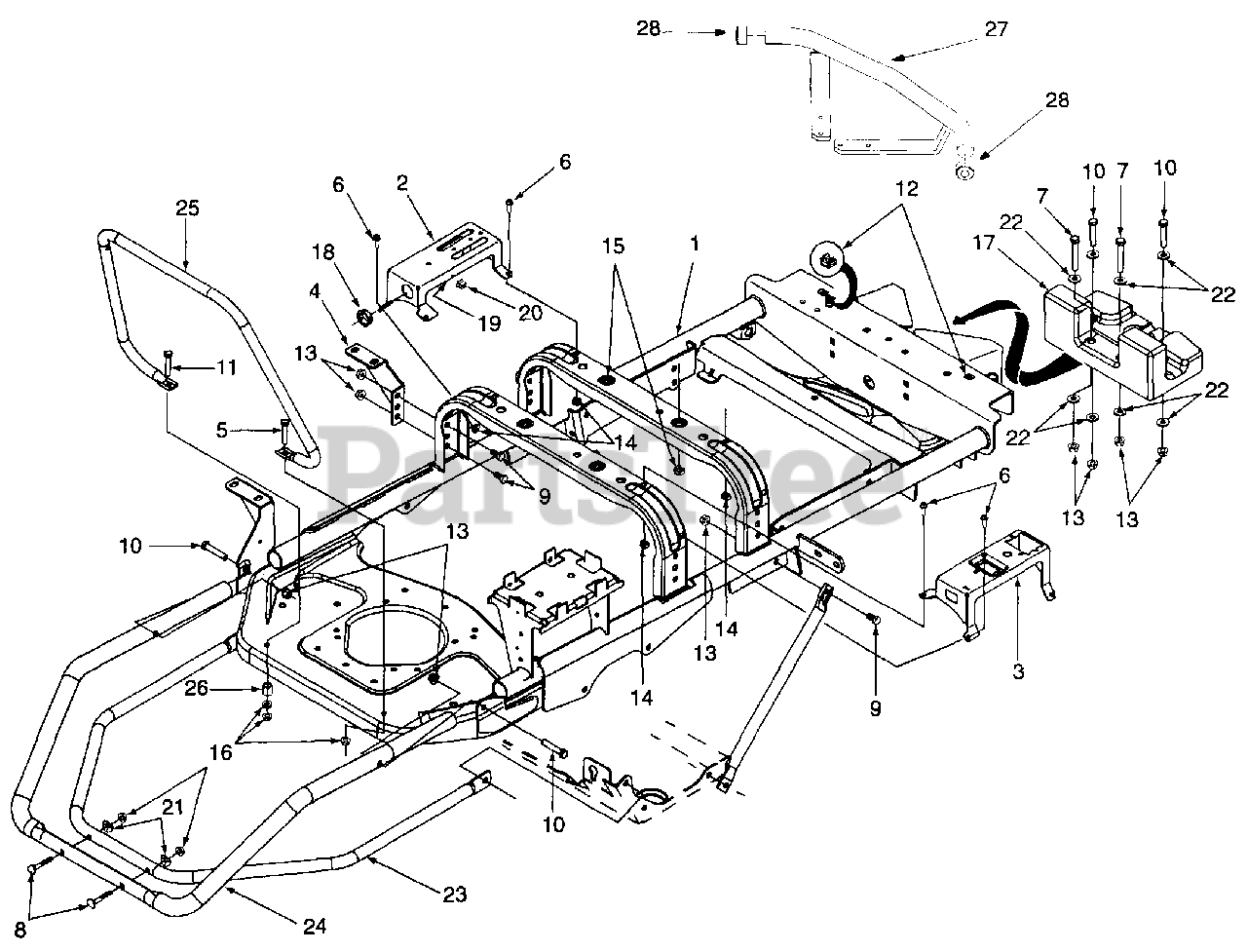

Frame and Attachments Parts Diagram

  • Title

1

Cub Cadet 603-0258A

Frame

Note: (Code 0498)

Variations

Cub Cadet 603-0258A-0498

FRAME - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0258A-0648

FRAME - TECH GRAY (0648)

$

$

Not available

$

$

2

Cub Cadet 603-0424

Panel, Control LH

Note: (Code 0498)

Variations

Cub Cadet 603-0424-0637

CONTROL PANEL ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 603-0425

Panel, Control RH

Note: (Code 0498)

Variations

Cub Cadet 603-0425-0637

PANEL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

4

Cub Cadet 703-2783

Bracket, Fuel Tank Mounting

Note: (Code 0498)

Variations

Cub Cadet 703-2783-0498

BRACKET, FUEL TANK MOUNTING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2783-0637

FUEL TANK BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0376

Screw, Hex Cap 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0642

Screw, Hex Wash. Hd. Tapp 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0859

Screw, Hex Cap 3/8-16 x 2.5 GR5

$6.99

$

In Stock, Qty 16

0

8

Cub Cadet 710-1174

Screw, Curved Hd. Carriage 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0216

Screw, Hex Cap 3/8-16 x 3/4 GR5

$4.49

$

In Stock, Qty 16

0

10

Cub Cadet 710-3144

Screw, Hex Cap 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 7

0

11

Cub Cadet 710-3180

Screw, Hex Cap 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 15

0

12

Cub Cadet 712-0251

Nut, Retainer 3/8-16

$

$

Not available

13

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0453

Nut, Retainer, 1/4-20

$

$

Not available

15

Cub Cadet 712-0455

Nut, Retainer, 3/8-16

$

$

Not available

16

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 719-3130

Weight, Frame Counter

Variations

Cub Cadet 719-3130-0637

WEIGHT-FRAME COUNT - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 723-3042

Snap Bushing

$4.49

$

In Stock, only 1 left!

0

19

Cub Cadet 728-0117

Rivet, Pop, .125

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-0830

Clip, Spring
(Superseded to 932-0830)

$

$

Not available

21

Cub Cadet 736-0451

Washer, Saddle

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 7

0

23

Cub Cadet 749-3061

Bumper, Lower Tube

Note: (Code 0498)

Variations

Cub Cadet 749-3061-0498

BMPR TUBE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3061-0637

BMPR TUBE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3061-0648

BMPR:TUBE:LWR - TECH GRAY (0648)

$

$

Not available

$

$

24

Cub Cadet 749-3062

Bumper, Upper Tube

Note: (Code 0498)

Variations

Cub Cadet 749-3062-0498

BMPR:TUBE:UPPER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3062-0637

BMPR:TUBE:UPPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3062-0648

BMPR:TUBE:UPPER (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

$

$

25

Cub Cadet 749-3064

Tube, Engine Compart. Support

Note: (Code 0498)

Variations

Cub Cadet 749-3064-0498

TUBE-ENG C - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3064-0637

TUBE-ENG COMPARTME(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3064-0648

TUBE-ENG COMPARTME(TECH GRAY) - TECH GRAY (0648)

$

$

Not available

$

$

26

Cub Cadet 750-3200

Spacer

$

$

Not available

27

Cub Cadet 603-0620

Bumper, Front

Note: (Code 0498)

Variations

Cub Cadet 603-0620-0498

FRONT BUMPER ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0620-0648

FRONT BUMPER ASSEMBLY - TECH GRAY (0648)

$

$

Not available

$

$

28

Cub Cadet 726-0298

End Cap

$

$

Not available
