Z48L (53BA1D5M100) - Cub Cadet 48" Zero-Turn Mower Battery, Electrical Components and Switches Parts Diagram

48" Zero-Turn Mower

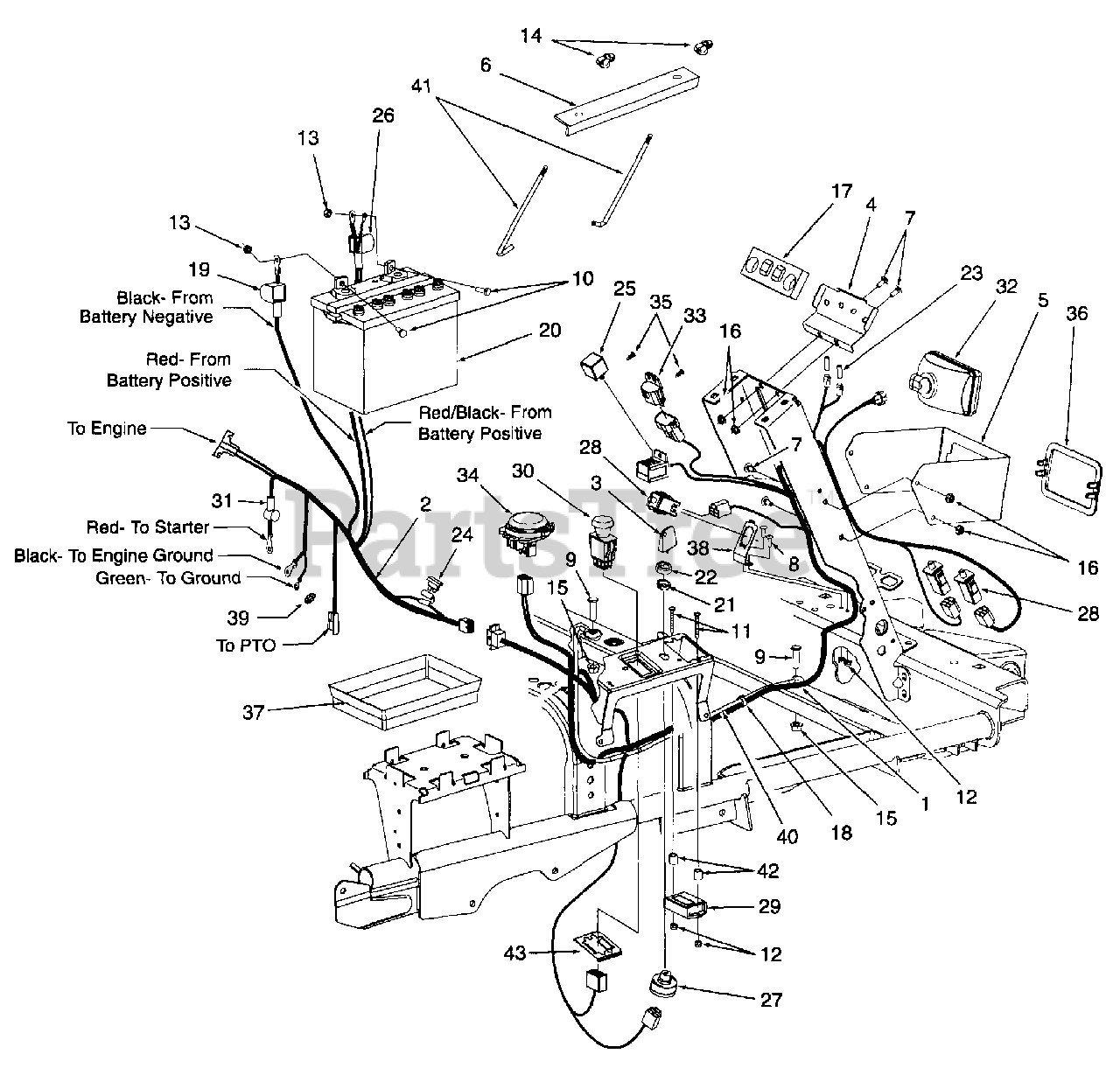

Battery, Electrical Components and Switches Parts Diagram

  • Title

1

Cub Cadet 629-3033

Wire Harness, Main

$

$

Not available

2

Cub Cadet 629-3034

Wire Harness, Engine

Note: (Includes Ref. Nos. 19, 24, 26 & 31)

$

$

Not available

3

Cub Cadet 759-3476A

Key, Ignition
(Superseded to 925-0201)

Note: (Set of 2)

$9.49

$

In Stock, only 1 left!

0

4

Cub Cadet 703-2809

Bracket, Indicator Bulb Mtg

Variations

Cub Cadet 703-2809-0637

BRACKET, INDICATOR LG(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 703-2836

Bracket, Headlight Mtg

Note: (Code 0498)

Variations

Cub Cadet 703-2836-0498

BRACKET-HEADLIGHT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2836-0637

BRACKET-HEADLIGHT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-3149

Strip, Battery Retainer

$

$

Not available

7

Cub Cadet 710-0134

Bolt, Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0425

Screw, Machine, #10-24 x 5/8

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0723

Screw, Hex Cap, 3.8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

10

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3143

Screw, Pan Hd Cutting, #10-24

$11.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0161

Nut, Hex Insert Lock, #10-24

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 723-0455

Foam Protector, Indicator Light

$

$

Not available

18

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 725-0340

Cover, Battery Terminal - Black

$

$

Not available

20

Cub Cadet 725-0453E

Battery

$

$

Not available

21

Cub Cadet 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

22

Cub Cadet 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

23

Cub Cadet 725-1365

Bulb, Indicator
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 725-1656

Fuse, Mini, 20Amp

$

$

Not available

25

Cub Cadet 725-1718

Relay
(Superseded to 925-1718)

$73.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 725-3007A

Cover, Battery Terminal - Red

$

$

Not available

27

Cub Cadet 725-3163

Switch, Ignition
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

28

Cub Cadet 725-3164A

Switch, Plunger Safety
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

29

Cub Cadet 725-3229

Hourmeter/Tachometer

$

$

Not available

30

Cub Cadet 725-3233

Switch, PTO
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 6

0

31

Cub Cadet 725-3237

Cover, Terminal - Red

$10.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 725-3250

Headlight Assembly
(Superseded to 925-3250)

$

$

Not available

Cub Cadet 759-3864

Bulb, Headlight - Only
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

33

Cub Cadet 725-3251

Sensor, Voltage
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

34

Cub Cadet 725-3253

Switch, Seat
(Superseded to 925-3253)

$61.99

$

In Stock, only 1 left!

0

35

Cub Cadet 726-0349

Retainer, Ratchet

$

$

Not available

36

Cub Cadet 731-3184

Bezel, Headlight

$

$

Not available

37

Cub Cadet 731-3233

Tray, Battery

$

$

Not available

38

Cub Cadet 732-0816

Spring, Switch Mounting

$

$

Not available

39

Cub Cadet 736-0607

Washer, External Lock, 5/16

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 747-3271

Rod, Harness Mtg

$

$

Not available

41

Cub Cadet 747-3347

Rod, Battery Retainer

$

$

Not available

42

Cub Cadet 750-0539

Spacer, .315 x .50 x .52
(Superseded to 950-0539)

$

$

Not available

43

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available
